Kohler KDI 2504TM

INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
6
63
EN

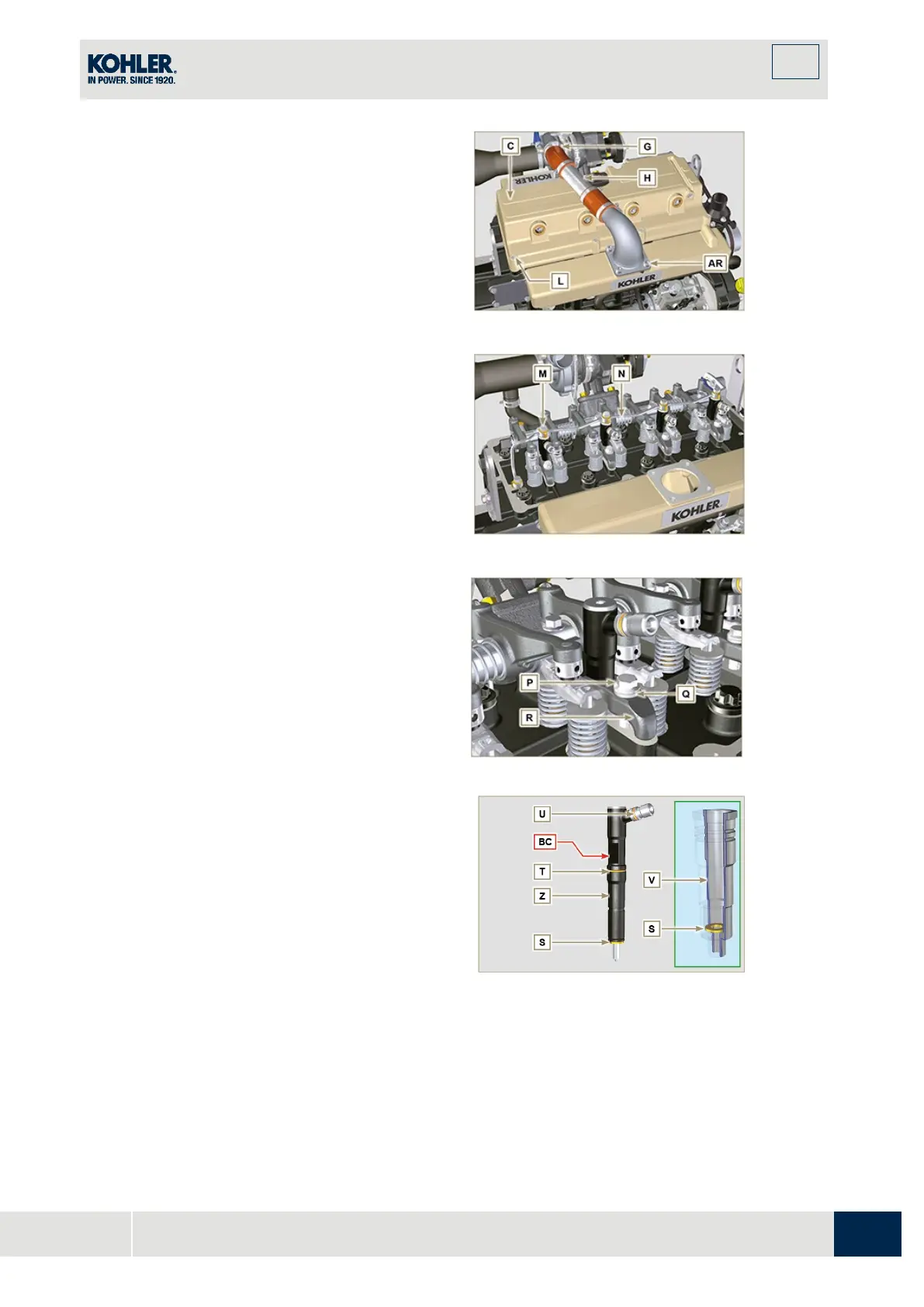

6.1.2 Rocker arms cover disassembly
1.
Undo the screws AR.
2.
Loosen clamp G and disconnect hose H
3.
Undo the screws L and remove the rocker
arm cap C.
Fig 6.4
6.1.3 Fuel return pipes disassembly
1.
Undo the screws M and remove hose N.
Fig 6.5
6.1.4 Injectors disassembly
1.
Undo the screw P and remove washer Q
and bracket R.
2.
Remove the injector Z.
NOTE
: Should you be unable to remove the
injector (acting only on point
BC
), use an open-
ended spanner (11 mm), by applying small rotations
to unblock the component.
3.
Seal all injection component unions as
illustrated in Par. 2.9.7.
4.
Ensure that gasket S has remained in the
correct position (Fig. 6.7). Otherwise,
r
ecover the gasket from inside th
e
electronic injector V manifold.
NOTE
: If the washer
S
is not found on the injector
Z
, recover it from inside the sleeve
V
.
Fig 6.6
Fig 6.7
