9
ASSEMBLY INFORMATION
EN 140
•

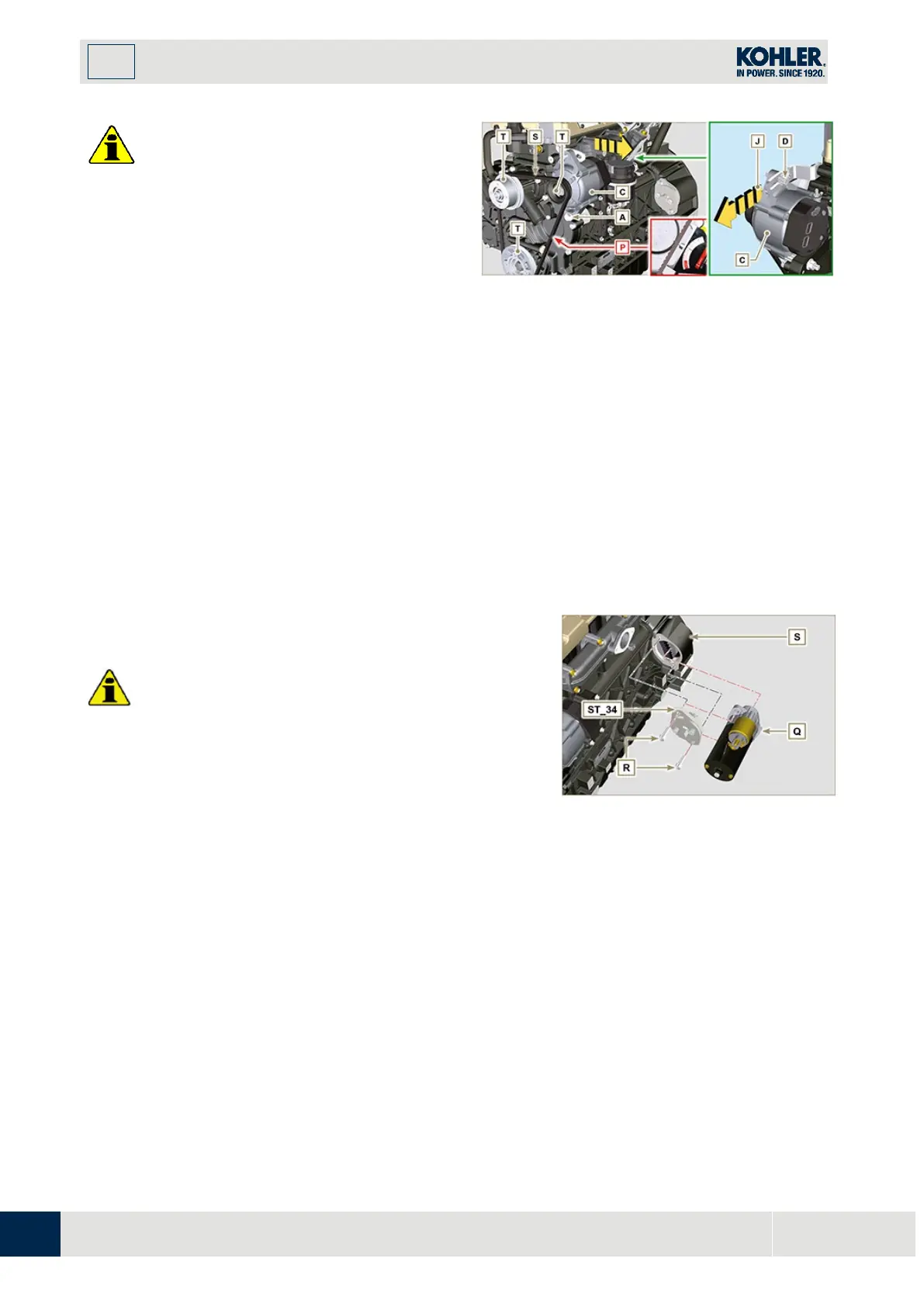

The belt S must always be replaced every
time it is assembled, even if it has not
reached the scheduled hours for
replacement.
6.
Insert the belt E on the pulleys T.
7.
Push the alternator C in the direction of the
arrow J.
8.
While tensioning the alternator C, first clamp
screw A (tightening torque at 25 Nm) an
d
then screw D (tightening torque at 69 Nm
[t
hread M10] - 40 Nm [thread M8]).
9.
Check the tension of the belt S with the
instrument (DENSO BTG-2), positioning it in
point P (the tension must be between 200
and 230 N).
10.
If the tension values do not correspond,
tighten screws A and D, then repeat
operations 7, 8, 9 and 10.
Fig 9.91
9.15.3 Starter Motor
Important
•
Remove the tool if still there ST_34.
1.
Fit the starter Q with the screws R on to the flange bell
S (tightening torque of 45 Nm).
