Kohler KDI 2504TM

7
INFORMATION FOR DISASSEMBLY
EN 82

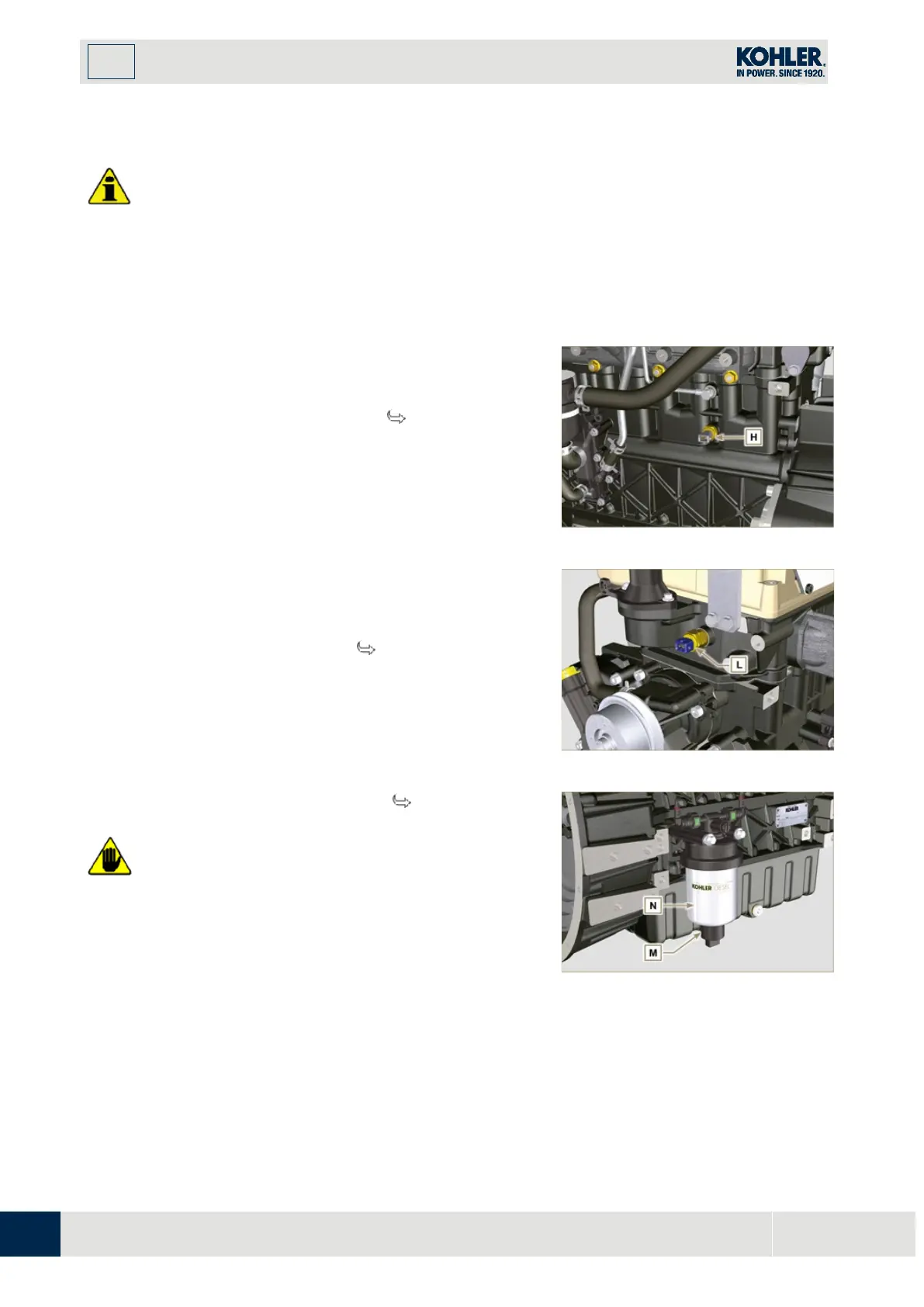

7.2.4 Sensors and switches
Important
•
After disassembly, protect the sensors suitably against
knocks, dampness and any high temperature sources.
•
The sensors and switches cannot be repaired, therefor
e
t
hey must be replaced in the event of anomalies.
7.2.4.1 Oil pressure switch disassembly ( )
1.
Unscrew and remove oil pressure switch H.
Fig 7.3
7.2.4.2 Coolant temperature sensor ( )
1.
Unscrew and remove the sensor L.
Fig 7.4
7.2.4.3 Fuel filter water detection sensor ( )
Warning
•
The fuel filter is not always installed in the engine.
•
When disassembling the sensor M, use a suitabl
e
co
ntainer to recover the fuel contained in the cartridge
N.
1.
Unscrew the sensor M from the cartridge N.
Fig 7.5
