Kohler KDI 2504TM Workshop Manual

6
INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
EN 80
2.
Position flange
H
inserting hose
K
onto the flange
union H, being careful not to bend tube E.
3.
Insert the gasket M between the flange H and the
crankcase N.
4.
Secure the flange H using the screws B on the
crankcase N (tightening torque at 10 Nm).
5.
Secure the clamp S on the manifold K.
6.
Fit the pipes G and AG on the flange H.
7.
Fit breather body C onto tubes G, AG and D an
d
f
asten tube G - AG - D with their relative clamps.
8.
Fit the breather body C on the support flange H with
the new clamp P.

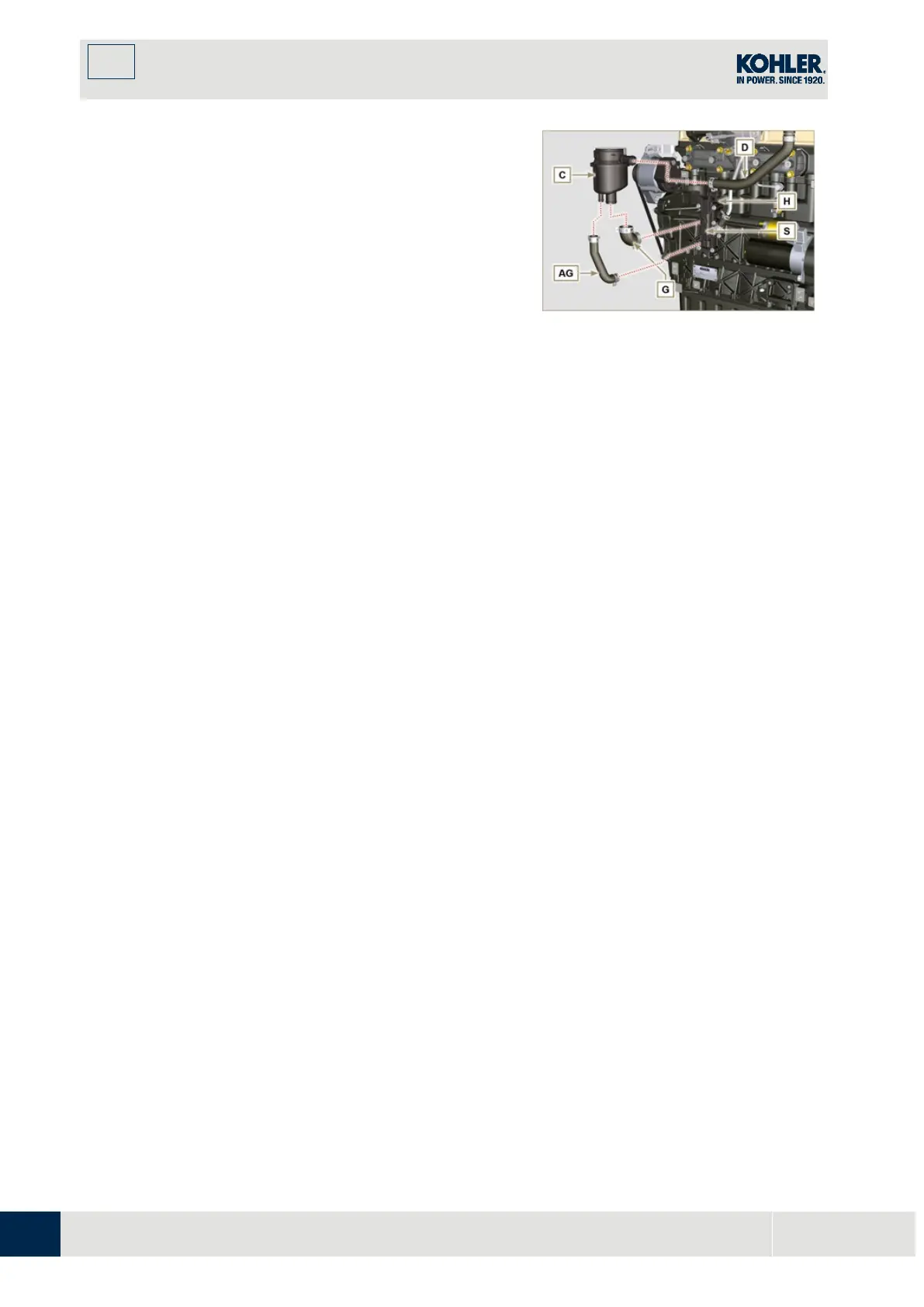

Fig 6.66
