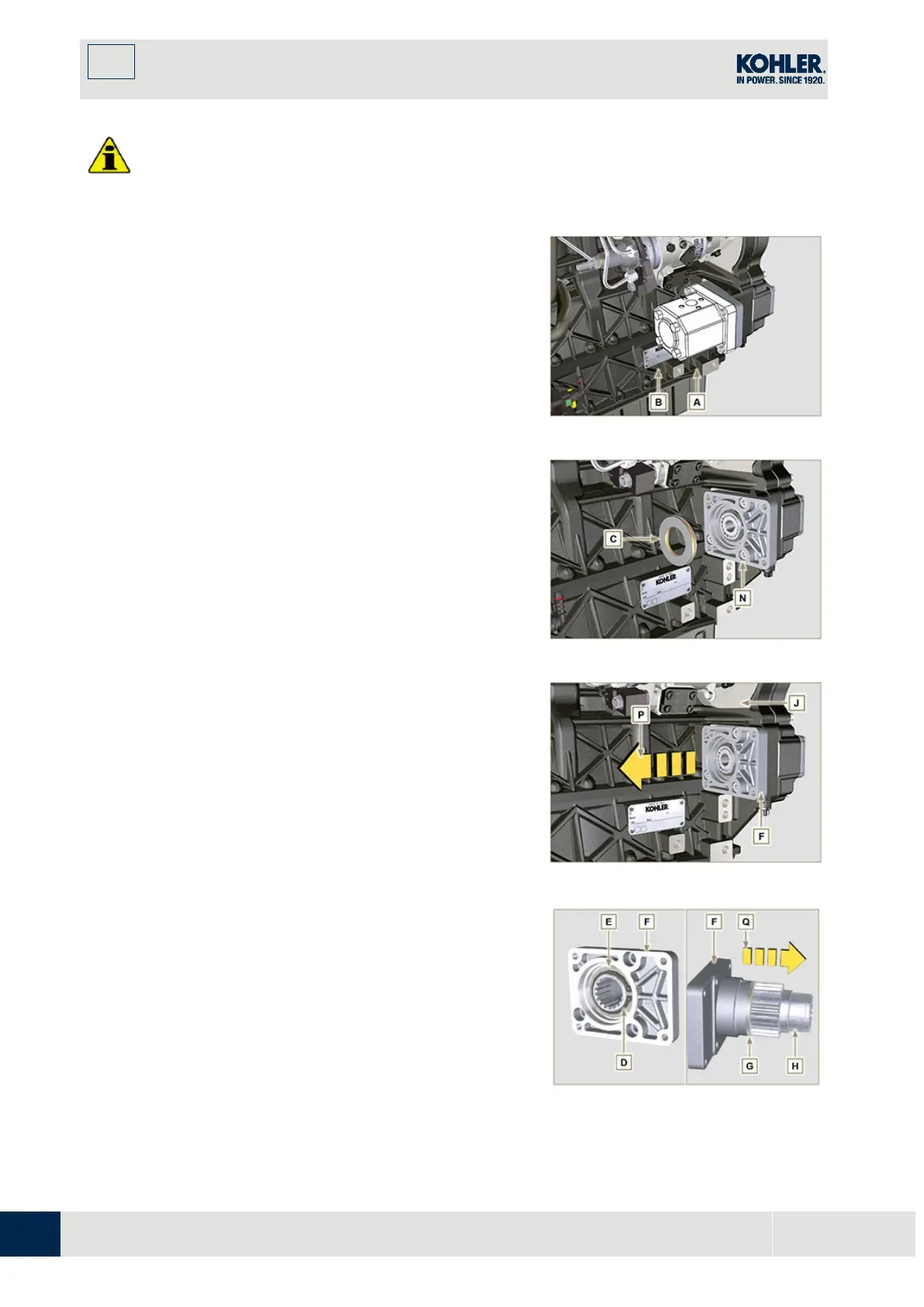

11.4.1 Disassembly
1.
Undo the screws A and remove the pump B.
Fig 11.13
2.
Remove the centring ring C and the relative gaskets
3.
Undo the screws N.
Fig 11.14
4.
Remove the flange F with the components D, E, G an
d
H i
n the direction of the arrow P.
5.
Remove the gasket J.
Fig 11.15
6.
Remove the retainer ring D and the shoulder washer E.
7.
Remove the gear H and the shoulder ring G from the
flange F in the direction of the arrow Q.
Fig 11.16
