INFORMATION ABOUT OPTIONAL
COMPONENTS
EN 158
3.

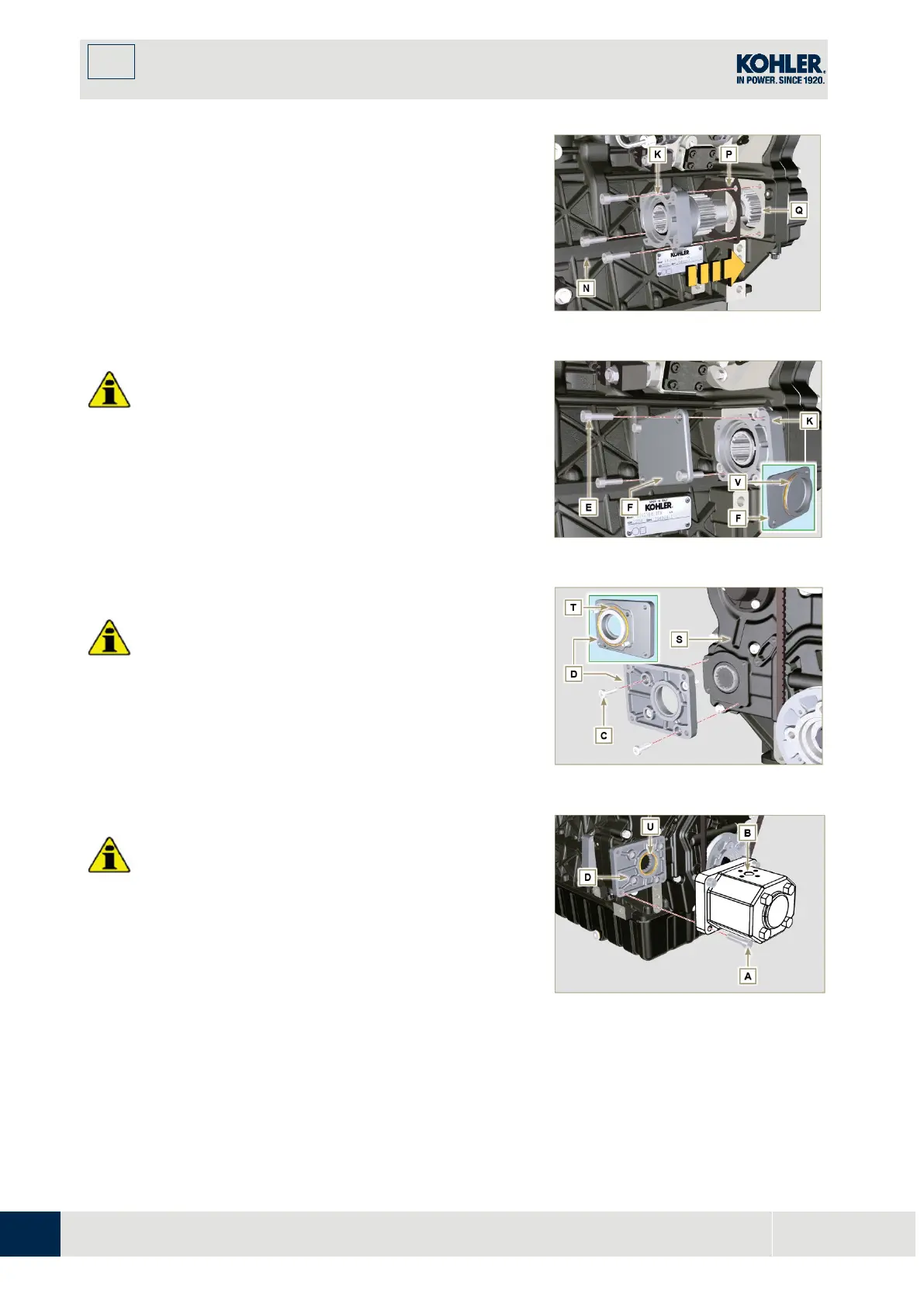

Position the flange K on the crankcase Q inserting the
gasket P, and insert gear N in crankcase Q.
4.
Secure the flange K using the screws N (tightening
torque at 25 Nm).
Fig 11.28
Important
•
Always replace the gasket V after each assembly.
5.
Insert the gasket V on the cover F, insert and position
the cover F on the flange K.
6.
Secure the cover F using the screws E on the flange K
(tightening torque at 25 Nm)
Fig 11.29
Important
•
Always replace the gasket T after each assembly.
7.
Position and secure the flange D using the screws C
on the crankcase S (tightening torque at 10 Nm).
Fig 11.30
Important
•
Always replace the gasket U after each assembly.
8.
Position the gasket U on the flange D.
9.
Secure the pump B using the screws A on the flange D
(tightening torque at 25 Nm).
Fig 11.31
