ProcessorUnitserialadapter
TheMoxaCP114EL-IadapterisusedintheEK80ProcessorUnittoprovideserial
communication.
Topics
MoxaCP114EL-Ioverview,page114
MoxaCP114EL-Iconnectors,page115
SettinguptheMoxaCP114EL-Iserialports,page116
MoxaCP114EL-Ioverview

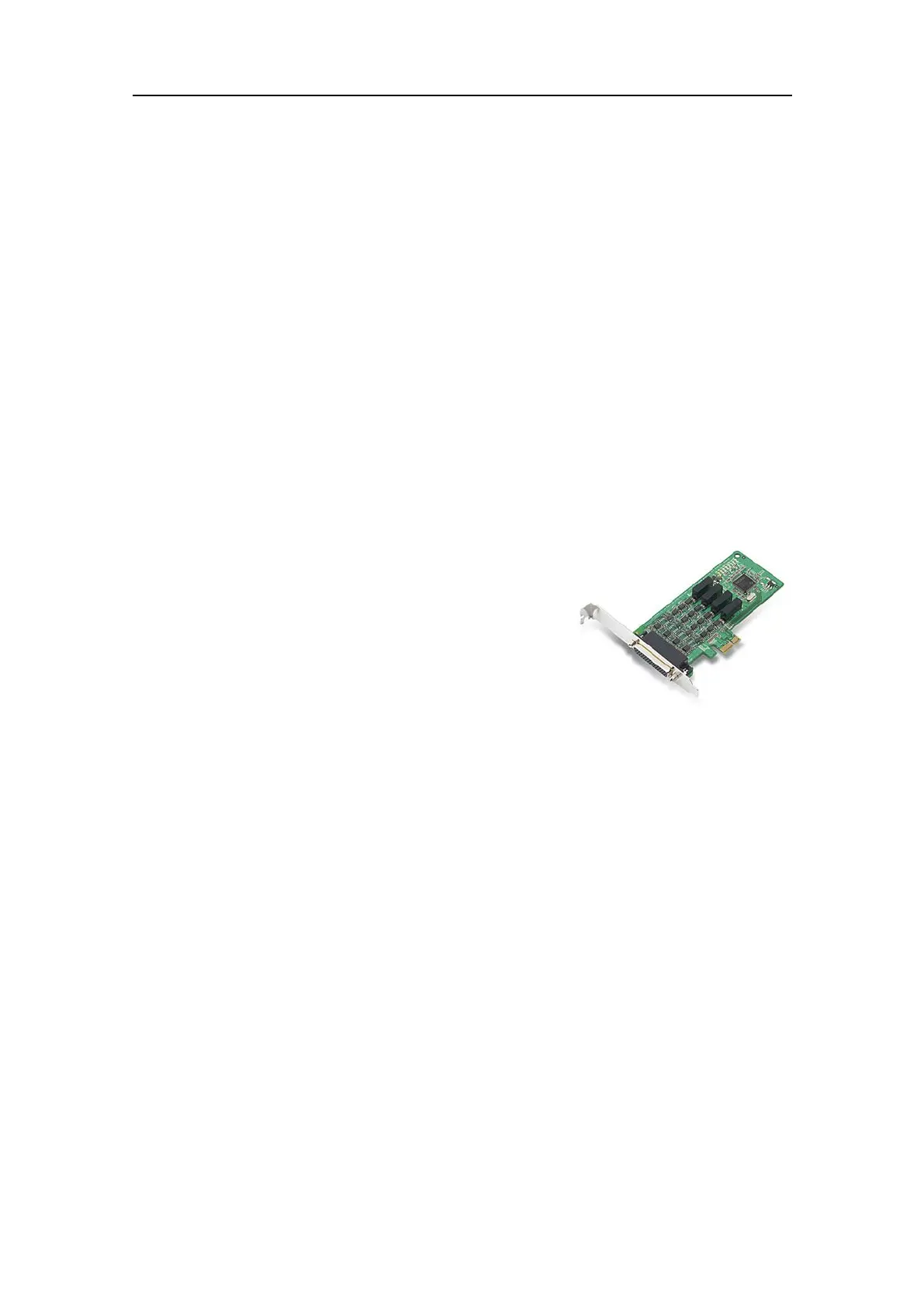

TheProcessorUnitisequippedwithaMoxaCP114EL-Iserialadapterboard.The
boardprovidesfourseriallines.
TheMoxaCP114EL-IserialadaptersupportsRS-232,
RS-422andRS-485(both2and4-wire).The
connectionstotheboardaremadeusingaconverter
cablewithfour9-pinmaleD-subminiatureconnectors.
TheconvertercableissuppliedwiththeProcessorUnit.
•Manufacturer:Moxa
•Manufacturer’swebsite:https://www.moxa.com
Seriallinesupport
Theserialadaptersupportsthefollowinginterfaceformats.
•Port1:RS-232/RS-422/RS-485
•Port2:RS-232/RS-422/RS-485
•Port3:RS-232/RS-422/RS-485
•Port4:RS-232/RS-422/RS-485
Inordertosetuptheserialportstomatchyourinterfacerequirements,usethededicated
softwareutilityinthedevicedriver.ThereareneitherjumpersnorDIPswitchesonthe
circuitboard.
