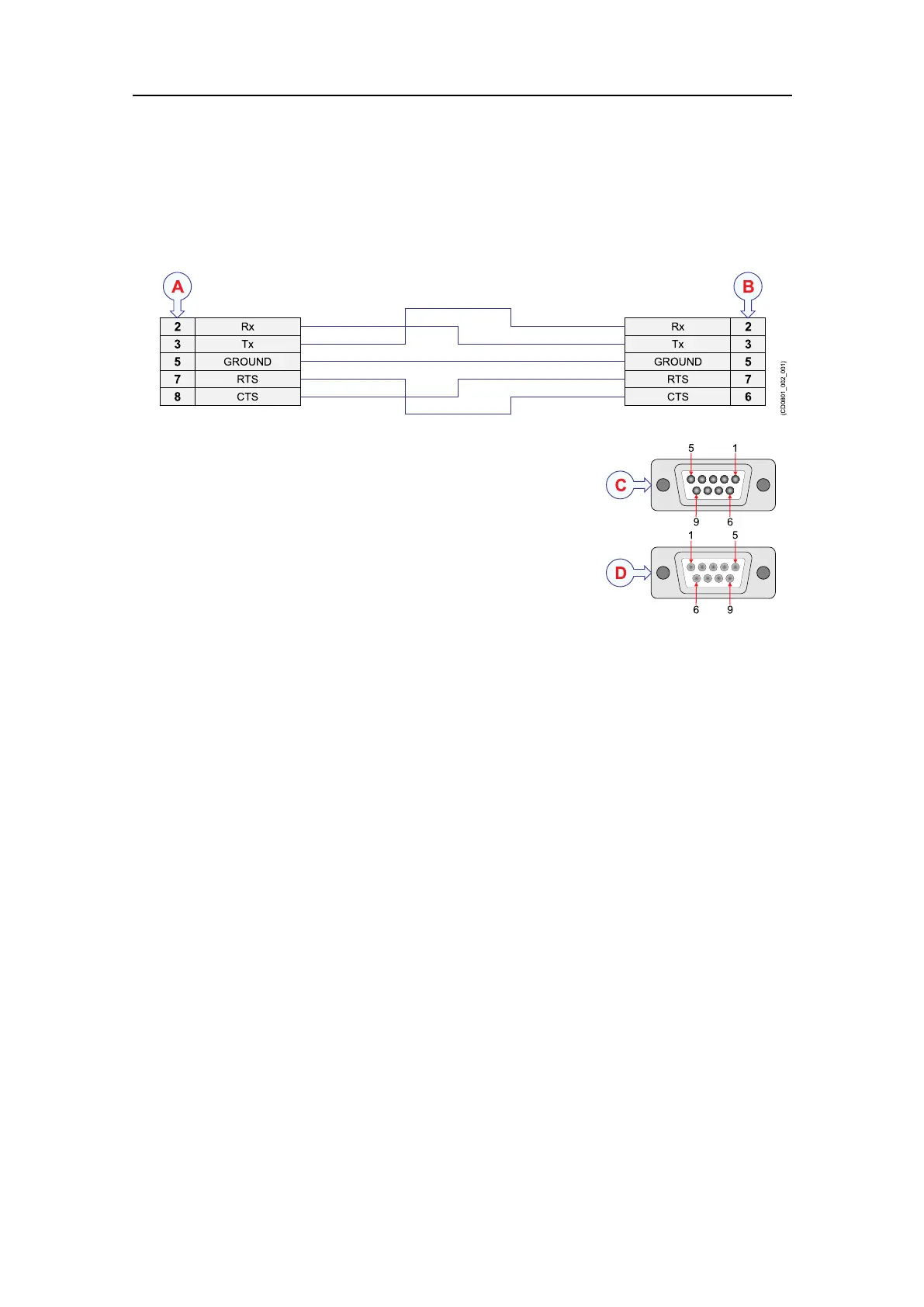

RS-232seriallineconnectionusingvewires

AnRS-232seriallineconnectionusingve(5)wiresandNMEAdatagramsisa

commonwaytoconnecttheEK80toexternaldevices.

ALocalconnection

BConnectiononremotedevice

CFemale9-pinD-Subminiatureconnector

DMale9-pinD-Subminiatureconnector

Unlessotherwisespecied,thiscablemustbeprovided

bytheinstallationshipyard.Notethatthiscabledoes

notsupportallthesignalsinthestandardRS-232

specication.

Minimumcablerequirements

•Conductors:2x4x0.5mm

•Screen:Overallbraided

•Voltage:60V

•Maximumouterdiameter:Denedbytheplugsand/orthecablegland

Ifyouneedtoinstallaverylongcable,increasethecrosssection.

Relatedtopics

Cabledrawingsandspecications,page136

Aboutseriallines,page164

Cablelayoutandinterconnections,page85
