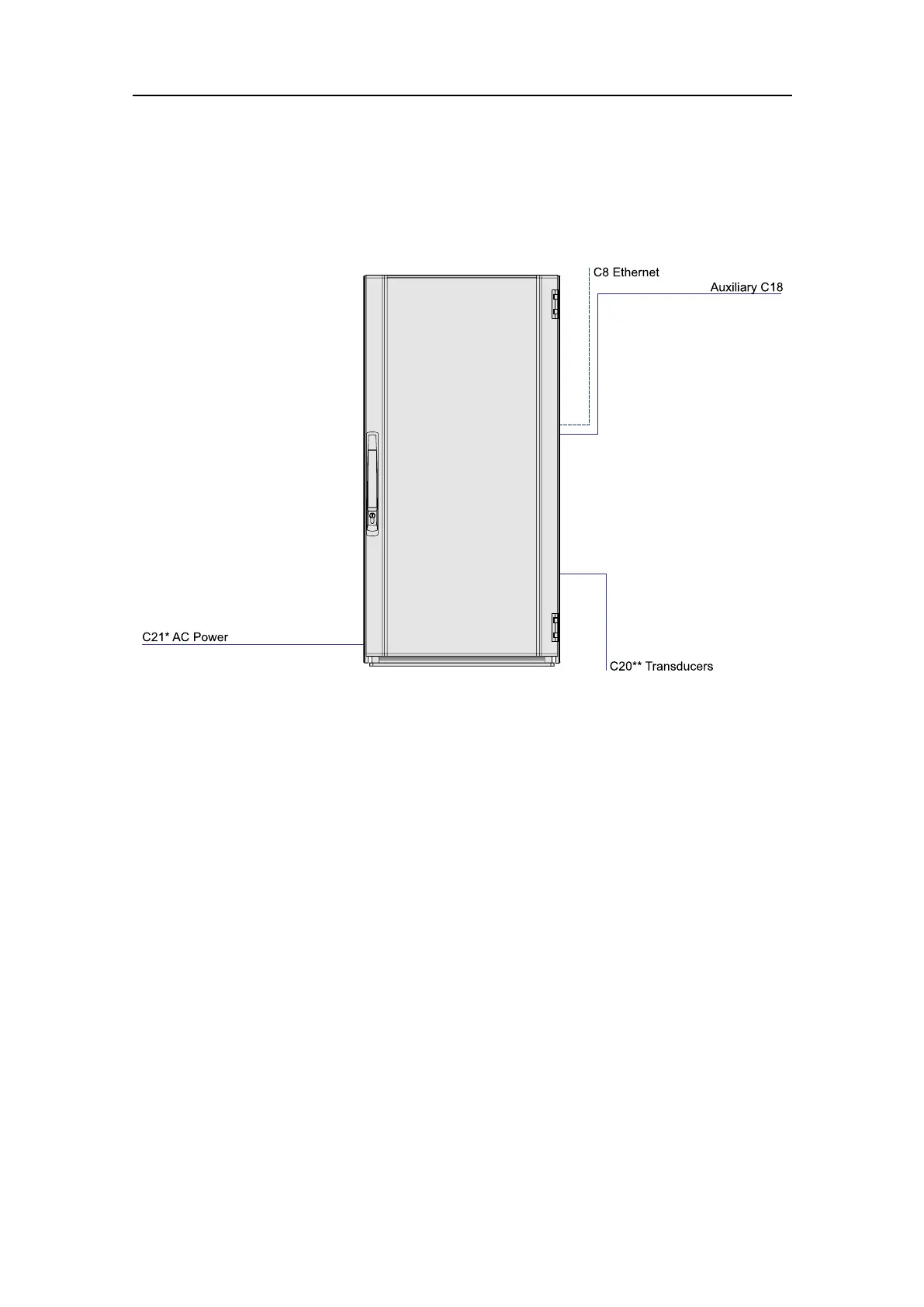

SonarroomcableplanwithWBTCabinet
TheWideBandTransceiver(WBT)cablesincludethoseusedtoconnecttheEK80
transceiver(s)toACmainspower,andtothetransducer(s).
TheWBTCabinetisprovidedwithabuilt-inpowerdistributor.Onlyonepowercable
isrequiredforconnectiontoACmains.
Thetransducercables(oneforeachtransducer)normallyexitthecabinetthroughthe
itsbottom.
Cablesidentiedwithanasterisk(*)aresystemorcommercialcables.Thesecablesare
providedwiththeEK80deliveryortherelevantitem.Onetransducercable(marked
withadualasterisk(**))isprovidedwitheachtransducer.
