Kongsberg Simrad EK80 - Sonar Room Cable Plan with One Transceiver

To Next Page

To Previous Page

394149/D

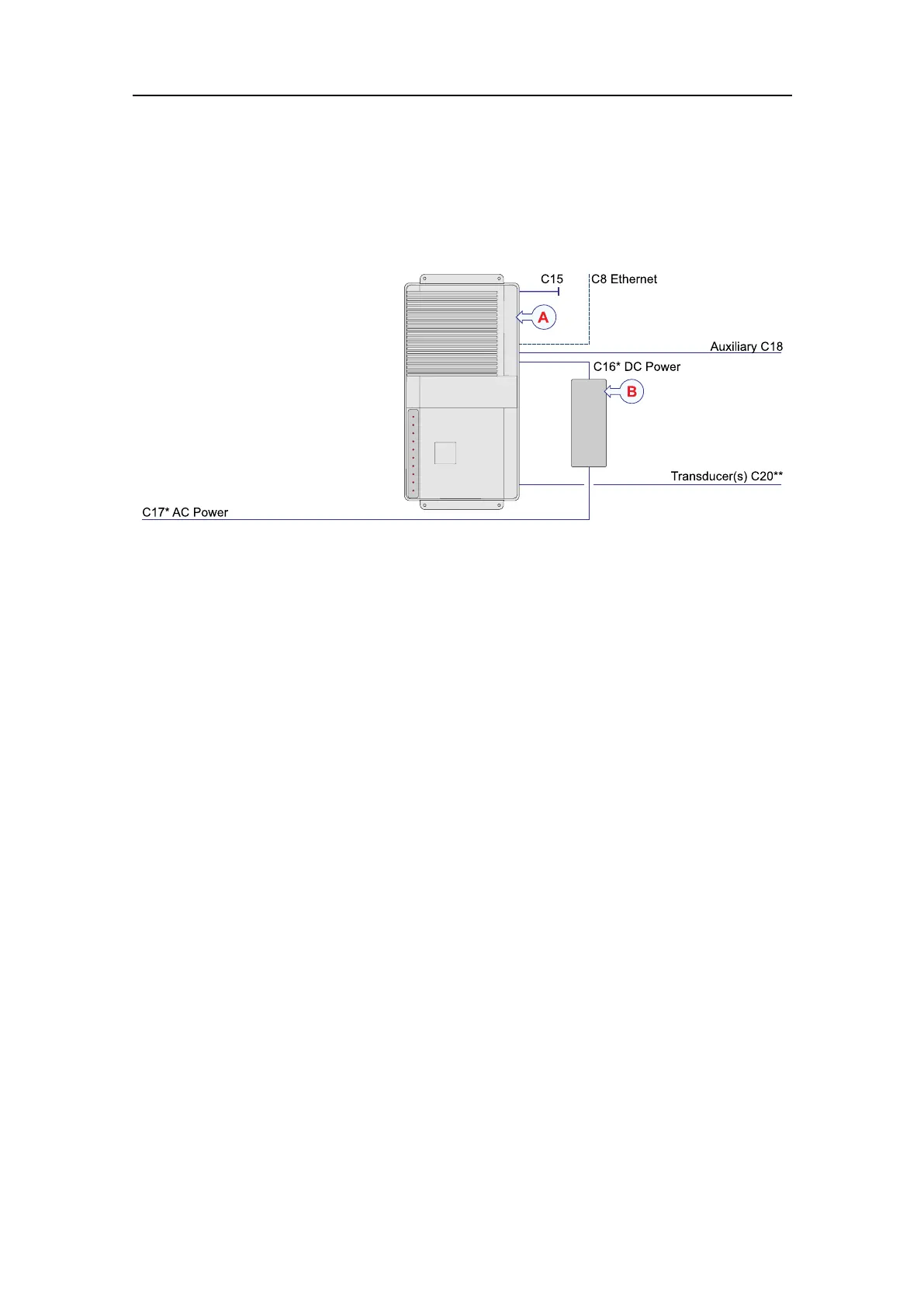

Sonarroomcableplanwithonetransceiver

TheWideBandTransceiver(WBT)cablesincludethoseusedtoconnecttheEK80

transceiver(s)toACmainspower,andtothetransducer(s).

AWideBandTransceiver(WBT)

BPowerSupplyUnit

Dependingontheoperationalrequirements,oneormoreWideBandTransceiver(WBT)

unitsmaybeusedinthecompleteEK80system.AnEthernetswitchisrequiredifmore

thanoneWideBandTransceiver(WBT)isused.

Cablesidentiedwithanasterisk(*)aresystemorcommercialcables.Thesecablesare

providedwiththeEK80deliveryortherelevantitem.Onetransducercable(marked

withadualasterisk(**))isprovidedwitheachtransducer.

Relatedtopics

Cableplans,page88

Cablelayoutandinterconnections,page85

SimradEK80InstallationManual
