Kongsberg Simrad EK80 - RJ45 High Speed Ethernet Cable (1000 Base-T)

To Next Page

To Previous Page

394149/D

147

RJ45HighspeedEthernetcable(1000Base-t)

MosthighspeeddataconnectionsbetweentheEK80systemunitsaremadeusing

Ethernetcables.ThesecablesmayalsobeusedbetweentheEK80andperipheral

equipment.

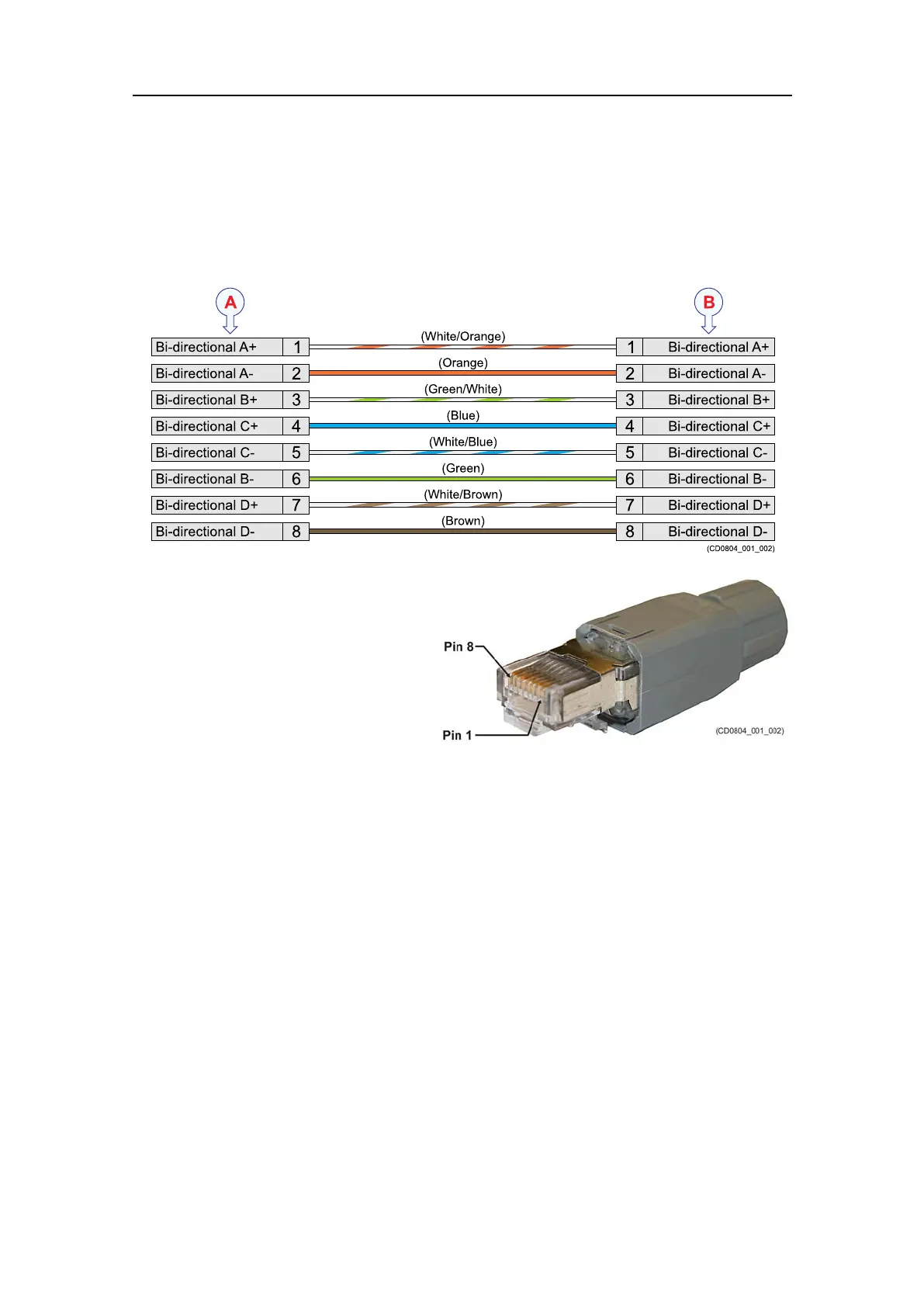

ALocalEthernetconnection

BConnectiononexternalnetwork

device

Ethernetcablesareavailable

commerciallyindifferentlengths,

coloursandcategories.Normally,

CAT-5EandCA T-6cablesare

usedinlocalareanetworkswith

bandwidthsexceeding100Mbit.

Minimumcablerequirements

Itisveryimportantthathigh-qualityEthernetcablesareused.YoumustuseCAT-5E

qualityorbetter.Ifyouusecableswithlowerbandwidthcapacityyouwillreducethe

EK80performance.

Relatedtopics

Cabledrawingsandspecications,page136

Cablelayoutandinterconnections,page85

Cablelayoutandinterconnections
