Kongsberg Simrad EK80 - EC150-3 C Cable Plan

To Next Page

To Previous Page

394149/D

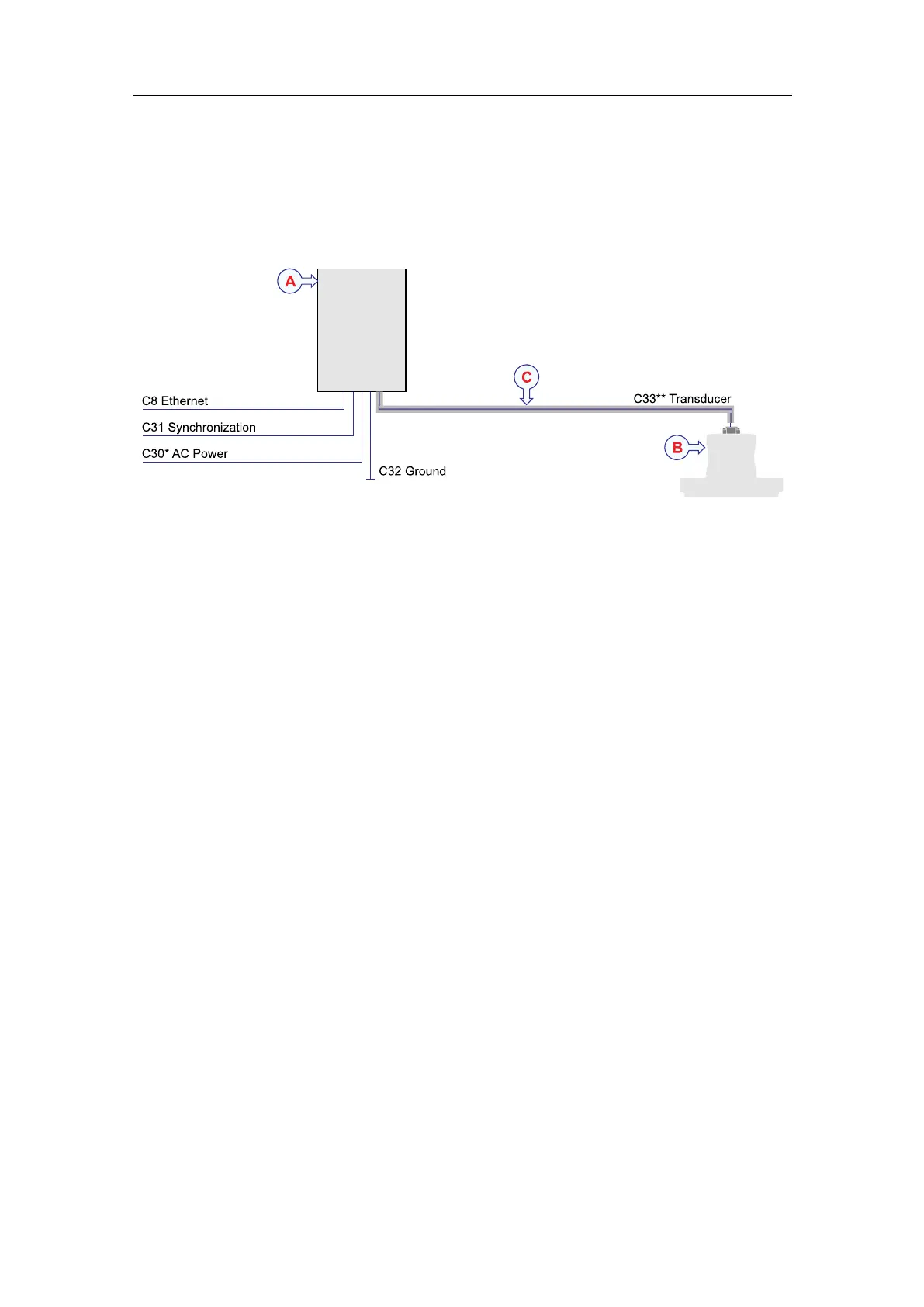

EC150-3Ccableplan

ThecablesareusedtoconnectthePowerSupplyUnittothetransducerandtothe

ProcessorUnit.Synchronizationisanoptionalfeature.

APowerSupplyUnit

BTransducer

CSteelconduit

Comments

Cablesidentiedwithanasterisk(*)aresystemcables.Thesecablesaresuppliedwith

theEK80delivery.

Itisveryimportantthatahigh-qualityEthernetcableisused.YoumustuseCA T-5E

STP(ShieldedTwistedPair)qualityorbetter.Ifyouuseacablewithlowerbandwidth

capacityyouwillreducetheEK80performance.

Thetransducercableis40metreslong.Thecablecannotbeextended.Thecablecanbe

cuttomatchtheinstallationrequirements.Makesurethatthecablelengthisminimum

15metres.

Relatedtopics

Cableplans,page88

Cablelayoutandinterconnections,page85
