140

394149/D

RS-232seriallineconnectionusingthreewires

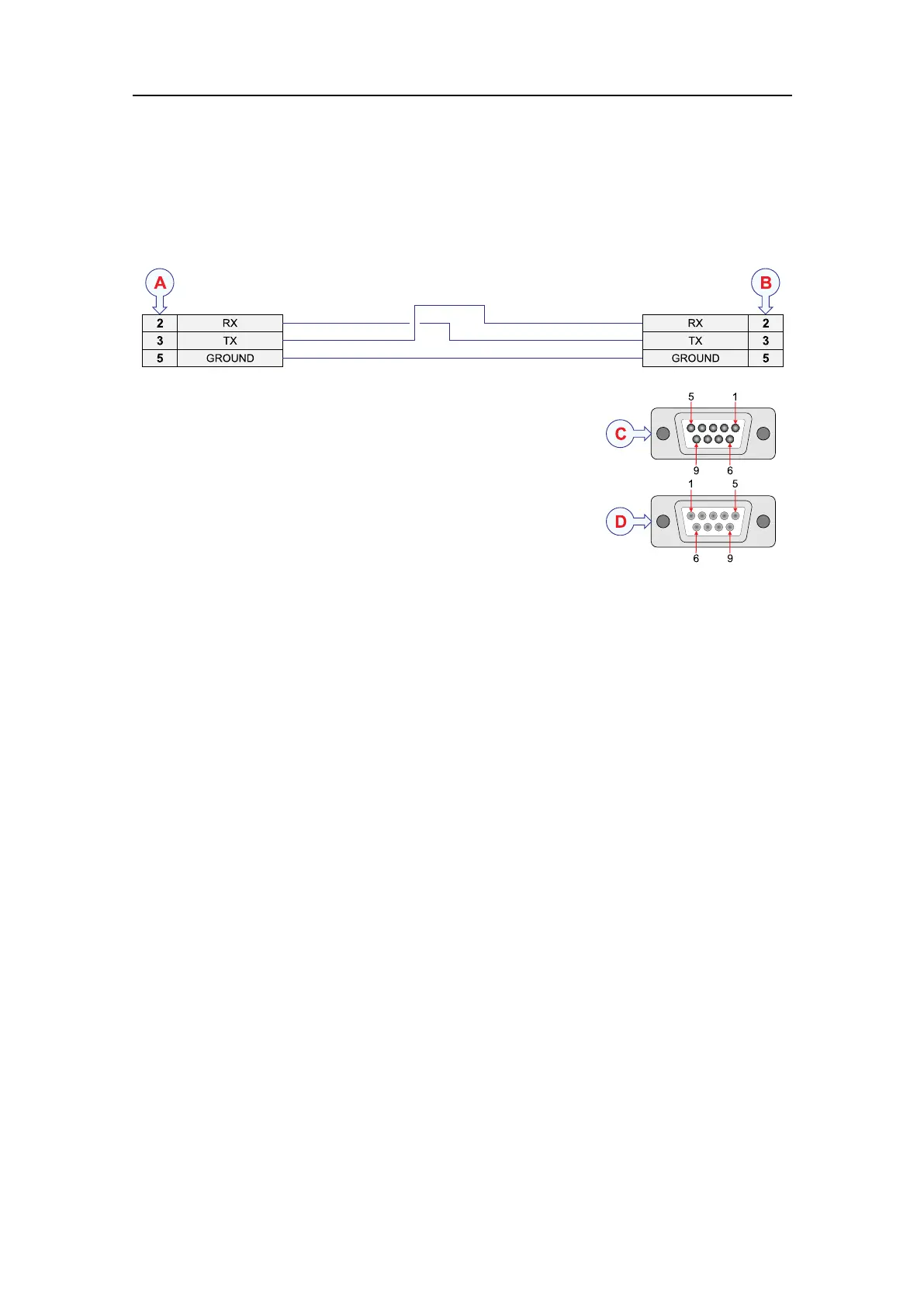

AnRS-232seriallineconnectionusingthree(3)wiresandNMEAdatagramsisa

commonwaytoconnecttheEK80toexternaldevices.

ALocalconnection

BConnectiononremotedevice

CFemale9-pinD-Subminiatureconnector

DMale9-pinD-Subminiatureconnector

Unlessotherwisespecied,thiscablemustbeprovided

bytheinstallationshipyard.Notethatthiscabledoes

notsupportallthesignalsinthestandardRS-232

specication.

Minimumcablerequirements

•Conductors:2x4x0.5mm

•Screen:Overallbraided

•Voltage:60V

•Maximumouterdiameter:Denedbytheplugsand/orthecablegland

Ifyouneedtoinstallaverylongcable,increasethecrosssection.

Relatedtopics

Cabledrawingsandspecications,page136

Cablelayoutandinterconnections,page85
