150
394149/D

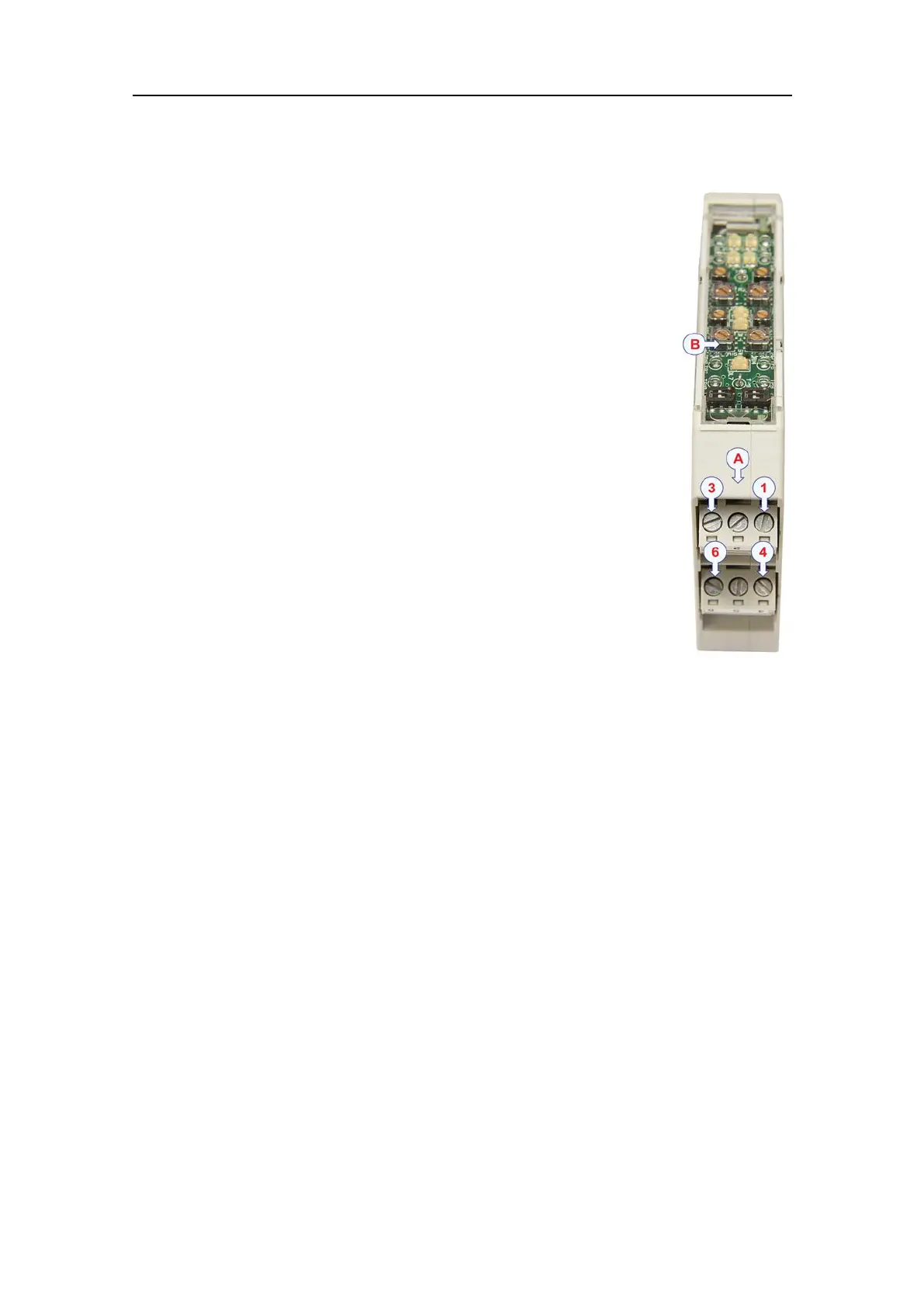

AConnectors1through6asindicatedbythearrows.
Notethateachofthetwoconnectorelementscanbepulledout
oftheIOModuleforeasyaccess.
BCongurationboard
Unlessotherwisespecied,thiscablemustbeprovidedbythe
installationshipyard.
Minimumcablerequirements
•Conductors:2x5x0.5mm
2
•Screen:Overallbraided
•Voltage:60V
•Maximumouterdiameter:Denedbytheplugsand/orthecable
gland
Ifyouneedtoinstallaverylongcable,increasethecrosssection.
Relatedtopics
Cabledrawingsandspecications,page136
Cablelayoutandinterconnections,page85
SimradEK80InstallationManual
