Kongsberg Simrad EK80 - Single beam low power transducer connection to a circular transducer socket

152
394149/D

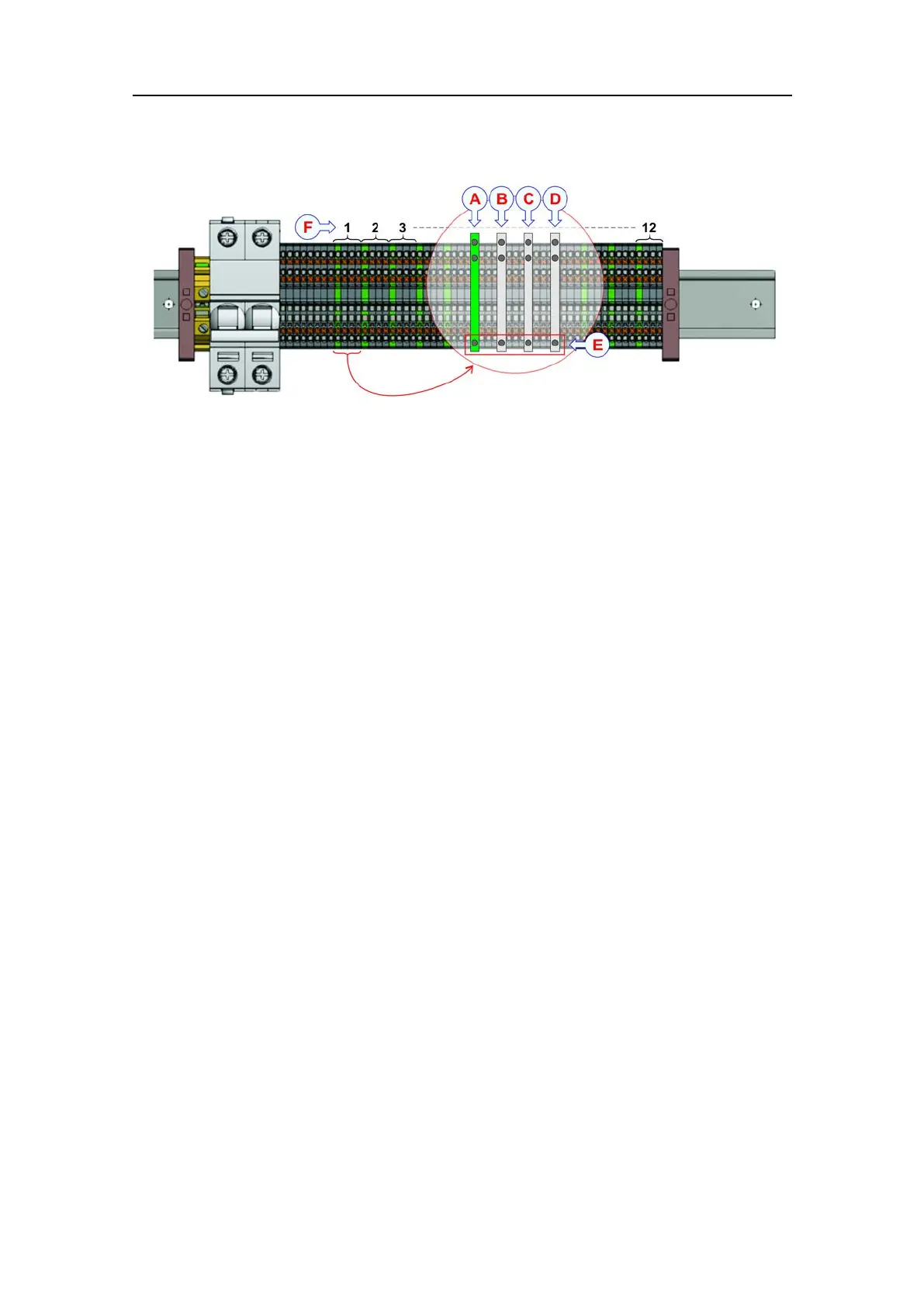

AScreen(Cablescreen)(Green)
BInput(ReadytoTransmit(RTT))
CGround(Signalground)
DOutput(TriggerOut)
EMaketheconnectionshere.
FChannels(Fromleft)
Minimumcablerequirements
Unlessotherwisespecied,thiscablemustbeprovidedbytheinstallationshipyard.If
youneedtoinstallaverylongcable,increasethecrosssection.
•Conductors:2x2x0.5mm
2
•Screen:Overallbraided
•Voltage:60V
•Maximumouterdiameter:Denedbytheplugsand/orthecablegland
Relatedtopics
Cabledrawingsandspecications,page136
Cablelayoutandinterconnections,page85
SimradEK80InstallationManual
