TheSimradEC150-3Cisa150kHzphased-arraytransducerdesignedforcurrent
prolingapplications.Itoffers2.8degreesbeamwidthforaccuratecurrentproling
and2.5degreesbeamwidthwhenappliedasasplit-beamechosoundertransducer.
TheEC150-3Chousingincludestherequiredtransceivercircuitry.
TheEC150-3Cisadualpurposeunit.ItcanbeusedeitherasanacousticDoppler
currentproler(ADCP)instrumenttomeasurewatercurrentorasasplit-beamecho
sounder.Itcannotoperatethesetwofunctionssimultaneously.
TheADCPhardwarecanbeaddedtoanexistingEK80system.Youcanalsousethe
EK80asanexclusiveADCPinstrument.

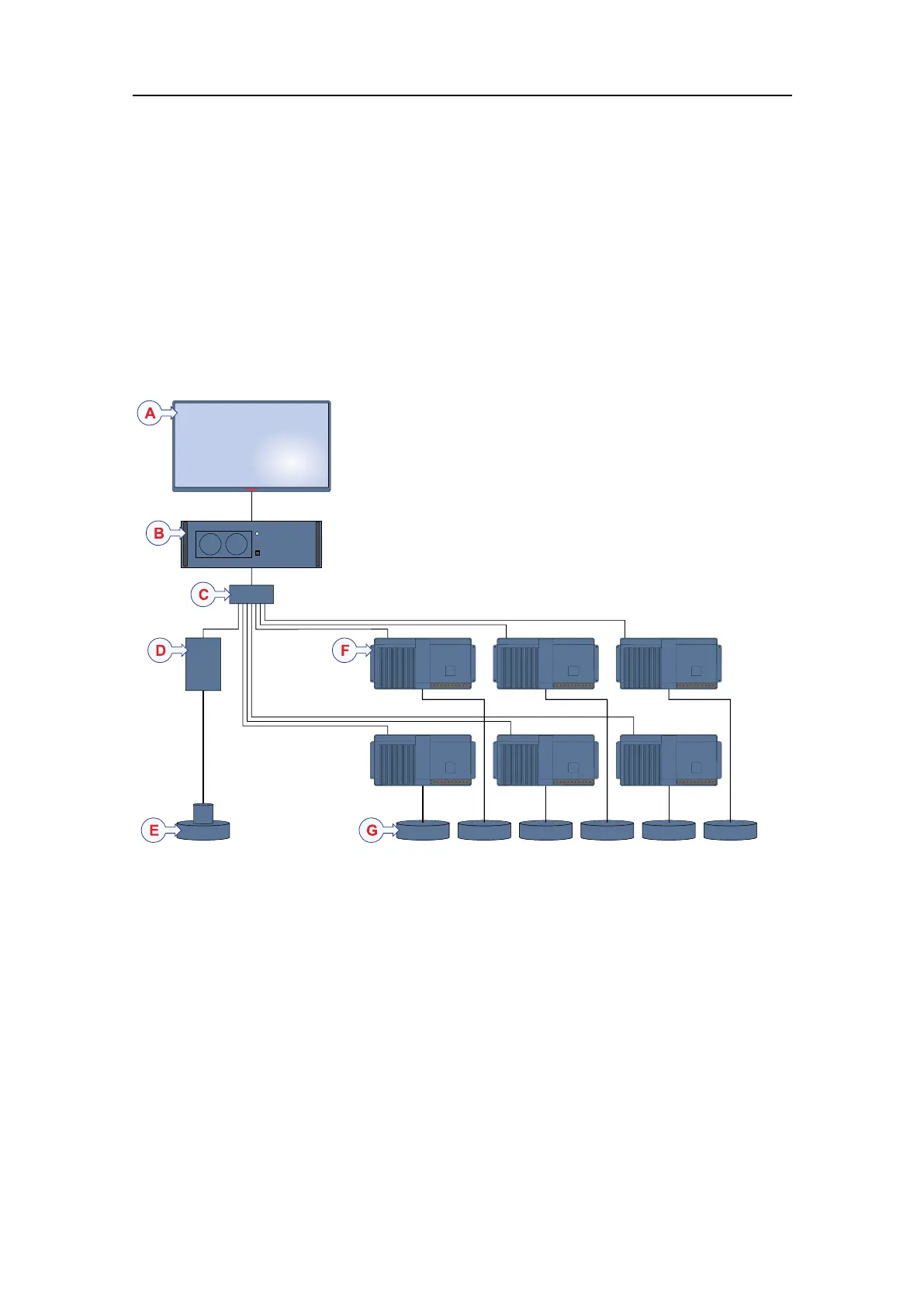

ADisplay
BProcessorUnit
CEthernetswitch
DPowerSupplyUnit
ESimradEC150-3C
FWideBandTransceiver(WBT)
GTransducers
Relatedtopics
SimradEK80,page13
Mainsystemunits,page19
Scopeofsupply,page25
