394149/D

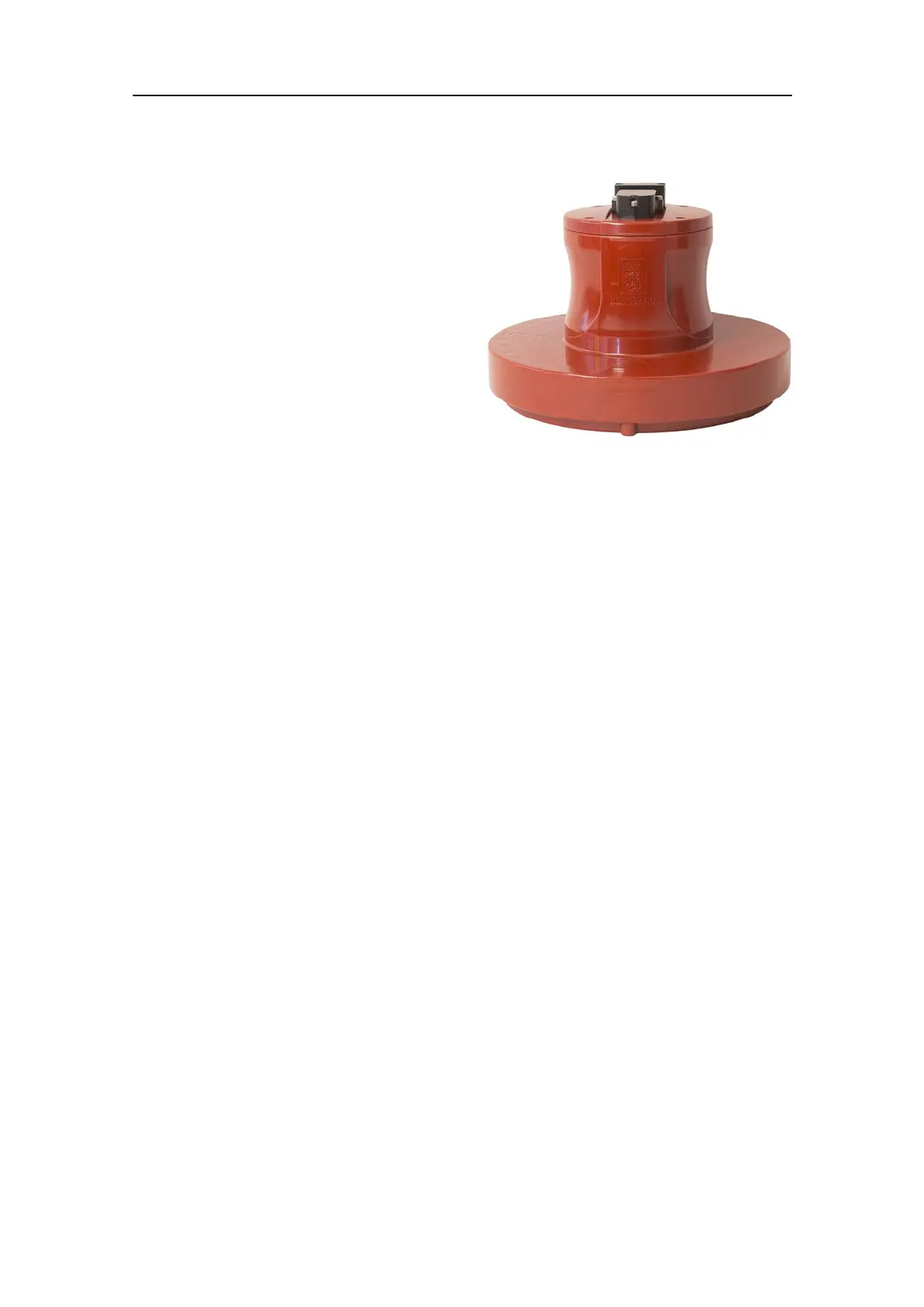

Thetransducerisnormallymountedush

withthehullplatingorthebottomofa

blister.Aclampingringisusedtosecure

thetransducerbodytoamountingring.

Themountingringisweldedintothehull

plating.

Thetransducercanalsobeushmounted

inthesamemanneratthebottomofa

blisteroradropkeel.

Thetransducercablepenetratesthehull

usingacablegland.Thiscablegland

consistsofabushing,washers,arubber

gasketandapackingnipple.

Relatedtopics

Mainsystemunits,page19

SimradEK80,page13
