Konica Minolta C71cf - Internal Machine Items

6-11
bizhub PRESS C71cf
6

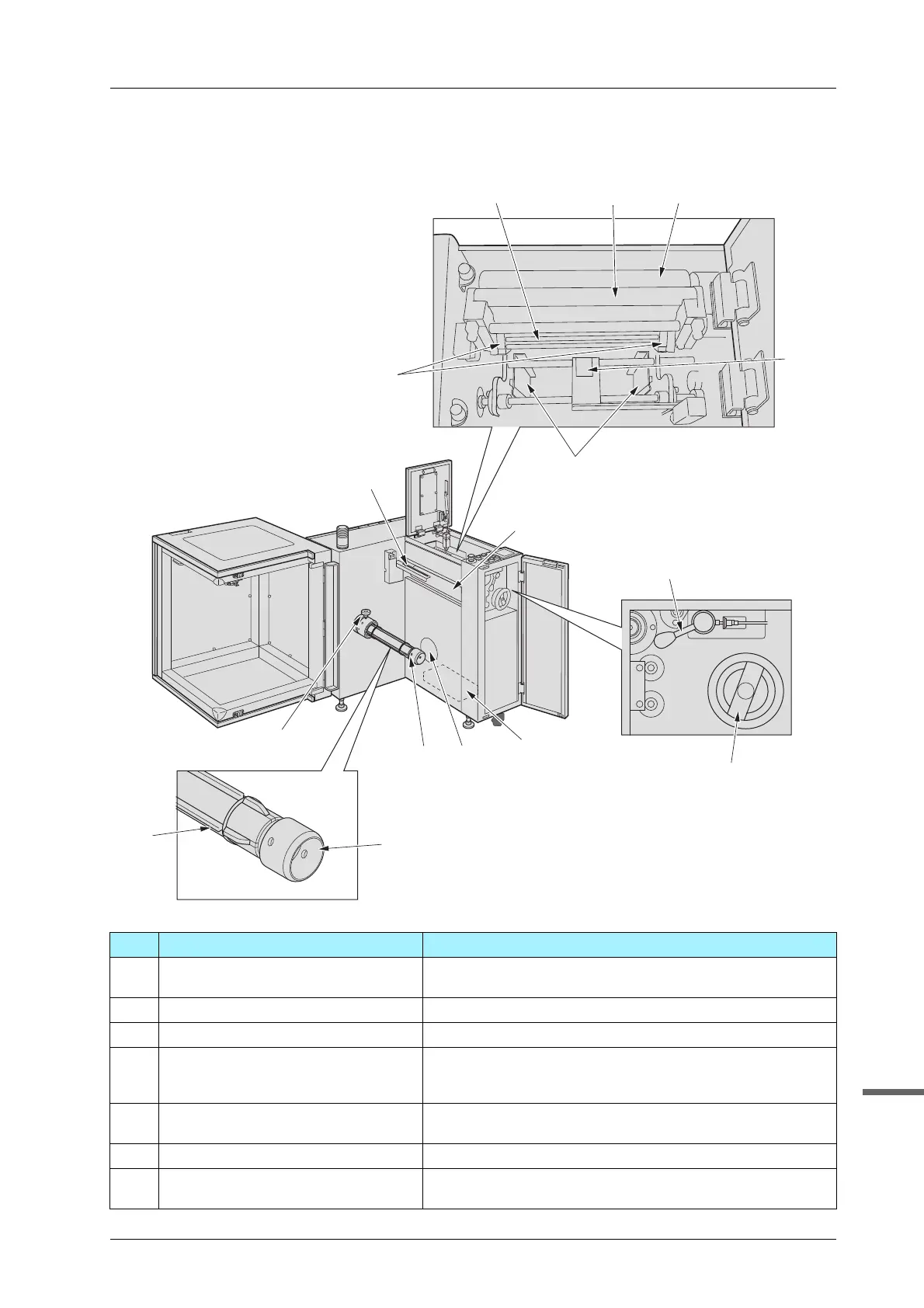

)Internal Machine Items
16
15
14
9
10 11 12
13
2
4
6
3
5
1
7
8
No. Name Description
1 Media-break sensor Detects the media break. If the sensor detects the media break,
the alarm beeps and the machine stops.
2 Guide roller Conveys the media.
3 Winding loop fan Stabilizes the form of the loop.
4 Winding diameter detection sensor Measures the diameter of the media, and alarm beeps when the
media reaches maximum diameter. You can specify the ma-
chine behavior when the alarm beeps.
5 Winding shaft Sets a media core and wind printed media controlling the con-
figured media tension.
6 Fixing handle Fixes the media guide to the winding shaft.
7 Lug protruding/retracting handle Turn to move up and down the lug to fix or remove the media
core.
