6.2 Name of each Component

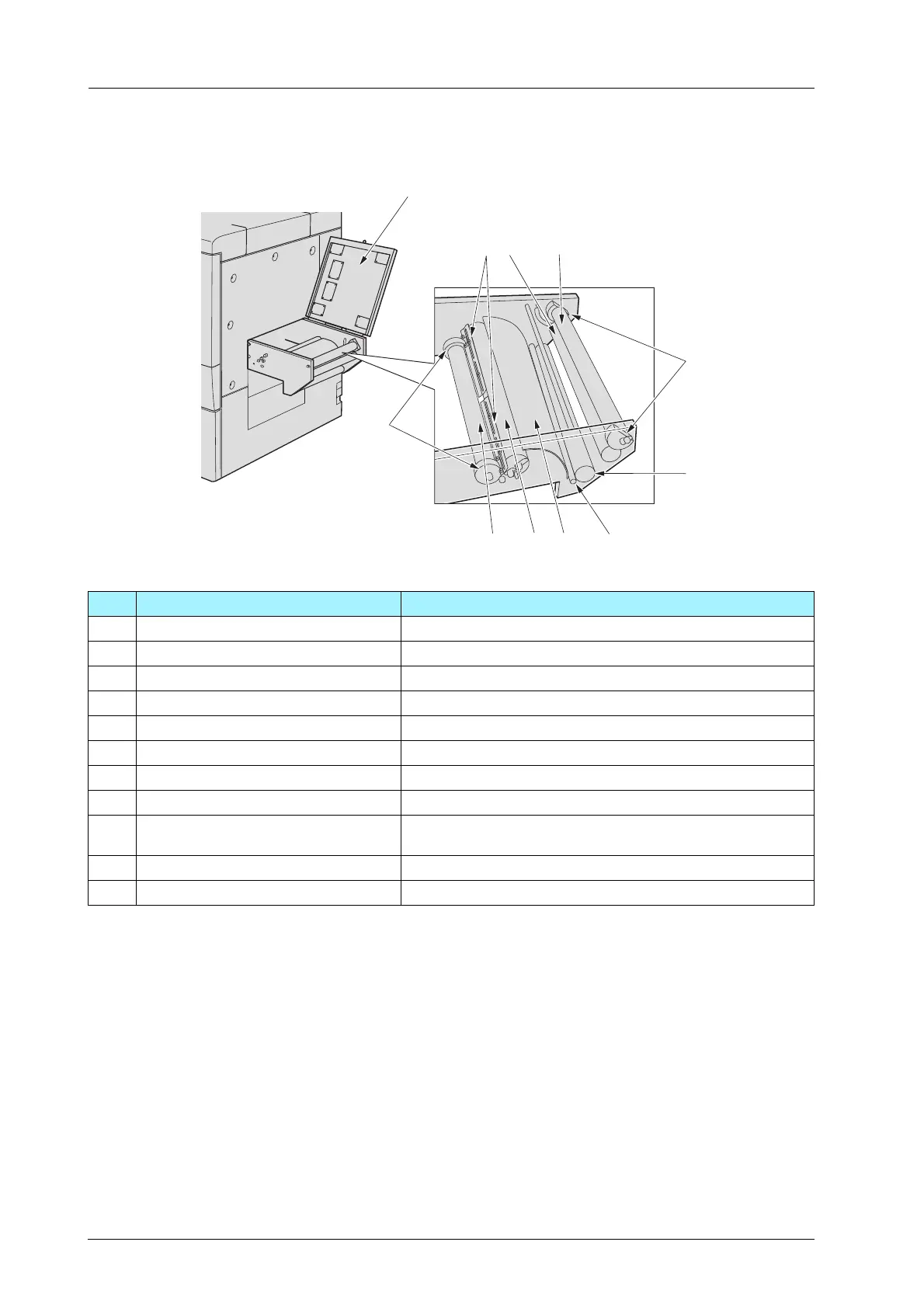

)Leading section
1
432
5
6
11
78910
No. Name Description
1 Top cover Protects the leading section. Open in case of the maintenance.
2 Protective cover Protects the restriction roller.
3 Tension roller 2 Changes the position to adjust the media tension.
4 Tension roller 1 Conveys the media.
5 Media guide Reference position for the media.
6 Tension roller 3 Conveys the media.
7 Tension roller 4 Changes the position to adjust the media tension.
8 Guide plate Stabilizes the media conveyance.
9 Aligning roller Switches between fix and rotate to adjust the media tension.
Changes the alignment to adjust the position of the media.
10 Restriction roller Conveys the media.
11 Restriction guide Reference position for the media.
