6-4

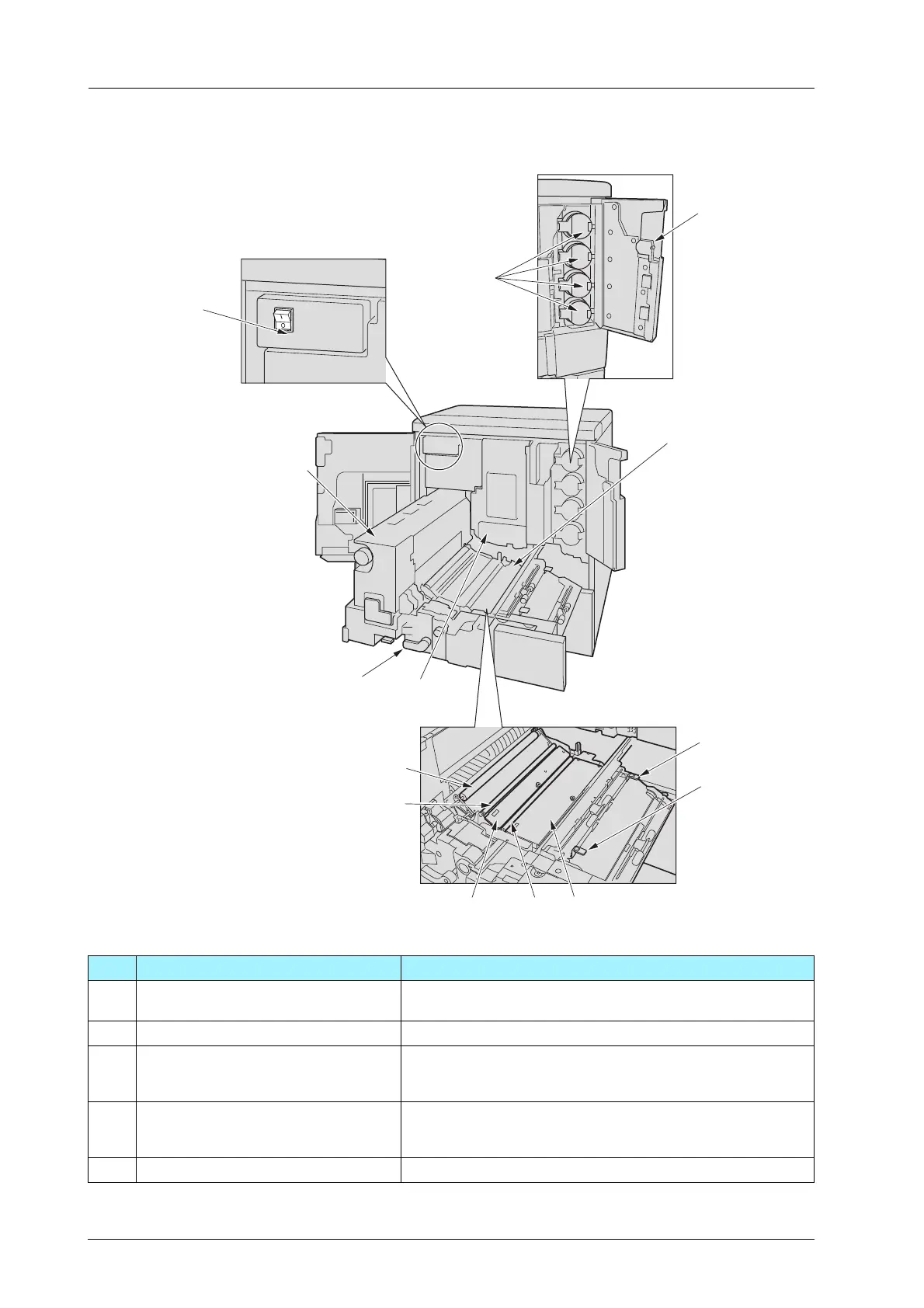

6.2 Name of each Component
)Internal Machine Items
1
2
3
4
8
9
5
6
14
13
12 11 10
7
No. Name Description
1 Main power switch Used only by service representative to turn the machine power
on/off. Be sure not to turn it off in usual operation .
2 Toner access door Opens rightward to allow toner supply.
3 Toner bottle cover (Y, M, C, K) Unlocked and opened to set the toner bottle. There are toner
bottles for four colors: yellow (Y), magenta (M), cyan (C) and
black (K).
4 Conveyance fixing unit Pulled out for removal of a paper jam. For handling levers and
knobs of the conveyance fixing unit, follow the instruction on
the screen to be displayed when paper jam occurs.
5 Drum unit Forms the image.
To Next Page
