Korg RK-100S Parameter Guide

22
RK-100S parameter guide

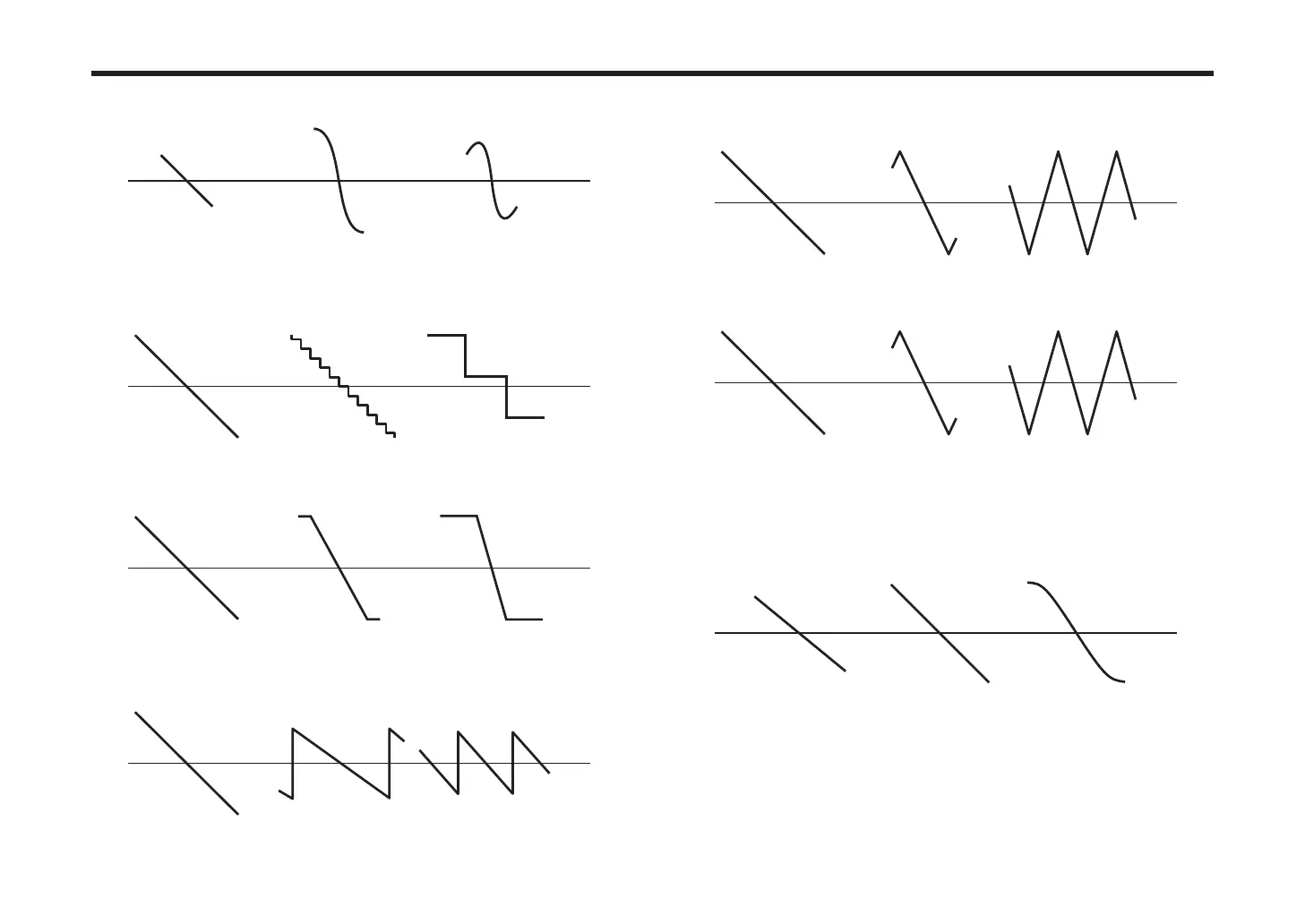

DEPTH: 000 DEPTH: 064
DEPTH: 127
Note: Only the Drive seing diers from the wave shape eect.
Decimator: Lowers the sampling frequency.
DEPTH: 000 DEPTH: 064
DEPTH: 127
Hard Clip: Flaens any portion of the waveform above the limit.
DEPTH: 000 DEPTH: 064
DEPTH: 127
Oct Saw: Cuts the portion of the waveform above the threshold level and inverts
it to keep it within limits.
DEPTH: 000 DEPTH: 064
DEPTH: 127
Multi Tri: Sending a sawtooth wave through this will produce a triangle wave.
DEPTH: 000
DEPTH: 064
DEPTH: 127
Multi Sin: Sending a sawtooth wave through this will produce a sine wave.
DEPTH: 000
DEPTH: 064
DEPTH: 127
SubOSC Saw, SubOSC Squ, SubOSC Tri, SubOSC Sin:
The selected waveform will sound one octave below oscillator 1. “WAVE
SHAPE DEPTH” adjusts the mix amount relative to oscillator 1.
Level Boost: Boosts the output level. “WS DEPTH” adjusts the amount of boost.
DEPTH: 000 DEPTH: 064
DEPTH: 127
Note: This may produce louder output volumes than other wave shape types.

Korg RK-100S Specifications

General

Polyphony	8 voices
Arpeggiator	Yes
Type	Keytar
LFO	2 LFOs
Keyboard	37 keys (velocity sensitive)
Sound Engine	Analog modeling
Inputs	Audio input
Outputs	1 x 1/4" (audio)
Power Supply	6 x AA batteries or AC adapter
Dimensions	830 x 262 x 71 mm / 32.68 x 10.31 x 2.80 inches
Weight	3.4 kg / 7.50 lbs (excluding batteries)
Effects	Delay
Controllers	Ribbon controller
MIDI	Out
USB	Type B
Oscillators	2 oscillators
