18.6 Servicing the main gearbox
190
Comprima F 155
Original Operating Instructions 150001049_01_en
18.6 Servicing the main gearbox
3
1
2
RPG000-089

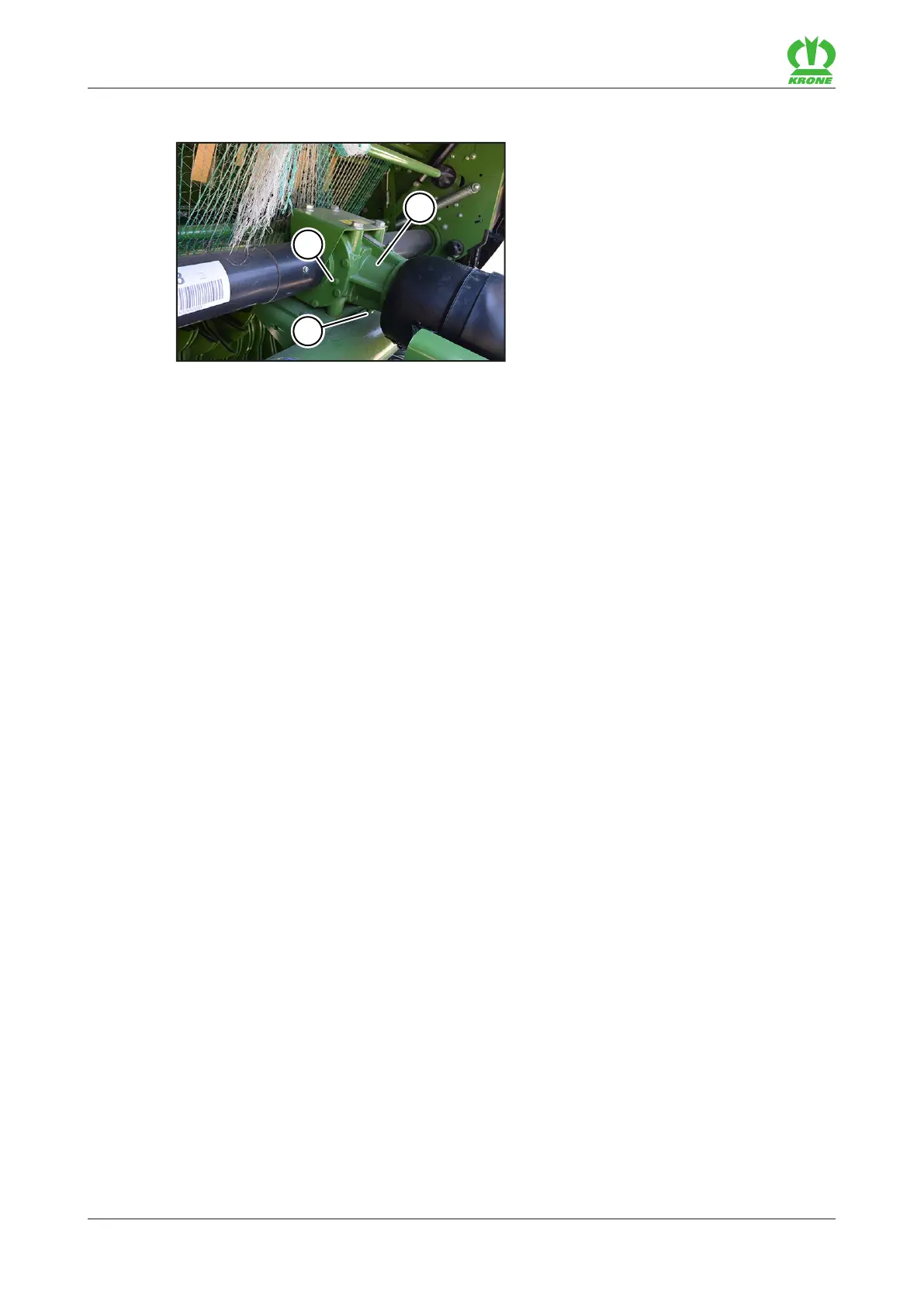

The main gearbox(1) is located behind the drawbar in the front area of the machine. The
locking screw of the inspection and filling hole(3) is located on the side of the main gearbox.
The locking screw(2) for the oil drain is located on the underside of the main gearbox(1).
The main gearbox(1) is located behind the drawbar in the front area of the machine. The
locking screw of the inspection and filling hole(3) and the locking screw(2) for draining the oil
are located on the underside of the main gearbox(1).
Maintenance intervals: refer to page178
Amount and type specifications of the oil: refer to page43
ü The machine is horizontal on stable and level ground.
ü The machine is shut down and safeguarded, refer to page27.
Checking oil level
 Remove the locking screw from the inspection and filling hole(3).
ð The oil must reach the inspection and filling hole(3).
If the oil reaches the inspection and filling hole(3):
 Screw the locking screw into the inspection and filling hole(3), tightening torque refer to
page188.
If the oil does not reach the inspection and filling hole(3):
 Top up with fresh oil via the inspection and filling hole(3) up to the inspection and filling
hole(3).
 Screw the locking screw into the inspection and filling hole(3), tightening torque refer to
page188.
Changing the oil
ü A suitable container is available for escaping oil.
 Remove the locking screw from the inspection and filling hole(3).
 Remove the locking screw(2) from the oil drain.
 Collect the oil in a container.
 Screw in the locking screw(2), refer to page188.
 Pour in fresh oil via the inspection and filling hole(3) up to the inspection and filling hole(3).
 Screw the locking screw into the inspection and filling hole(3), tightening torque refer to
page188.
