7 Commissioning
7.4 Connecting hydraulic brake (export)
56
Comprima F 155
Original Operating Instructions 150001049_01_en

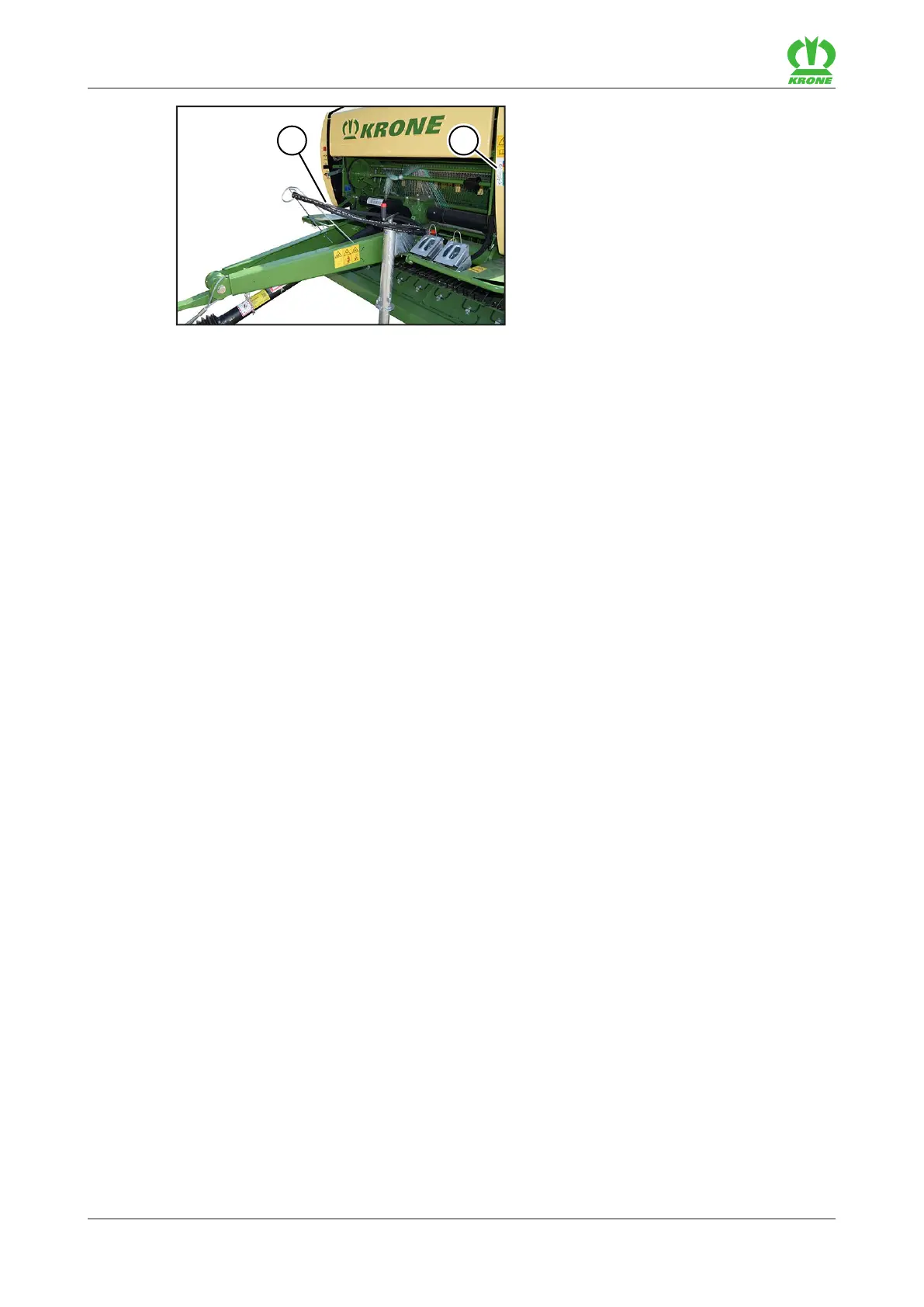

1 2
RPG000-117
To connect the hydraulic hoses(1) correctly, the hydraulic hoses(1) are marked with numbers.
Hydraulic hoses(1) for connection to a single-acting control unit are marked with a number and
the plus sign, e.g.(1+).
Additional explanations, e.g. the meaning of the coloured caps, can be found on the label(2) on
the machine.
 Depressurise the tractor hydraulics.
 Shut down and safeguard the machine, refer to page27.
 Clean and dry the connections of the hydraulic quick connector.
Opening/closing the hydraulic connection for the tailgate
 Connect the hydraulic hose(red, 1+) to a single-acting control unit of the tractor.
Lifting/lowering the hydraulic connection for pick-up
 Connect the hydraulic hose(yellow, 3+) to a single-acting control unit of the tractor.
Hydraulic connections for the support jack (for version with "Hydraulic support
jack")
 Connect the hydraulic hose lines(green 5+, green 5-) to a double-acting control unit of the
tractor.
Hydraulic connection for drop floor of feed rotor reversing device (for version
with "Drop floor of feed rotor")
 Connect the hydraulic hose line(green, 6+) to a single-acting control unit of the tractor.
7.4 Connecting hydraulic brake (export)
A hydraulic brake may be required on the machine to meet country specific standards. A brake
valve is required on the tractor for the hydraulic brake. The corresponding hydraulic hose is
connected to the brake valve on the tractor. The brake is activated by actuating the brake pedal.
ü The machine is shut down and safeguarded, refer to page27.
 Connect the hydraulic hose of the hydraulic brake to the connection for the hydraulic brake
on the tractor.
