8.17 Using the bale ejector
1
RPG000-181

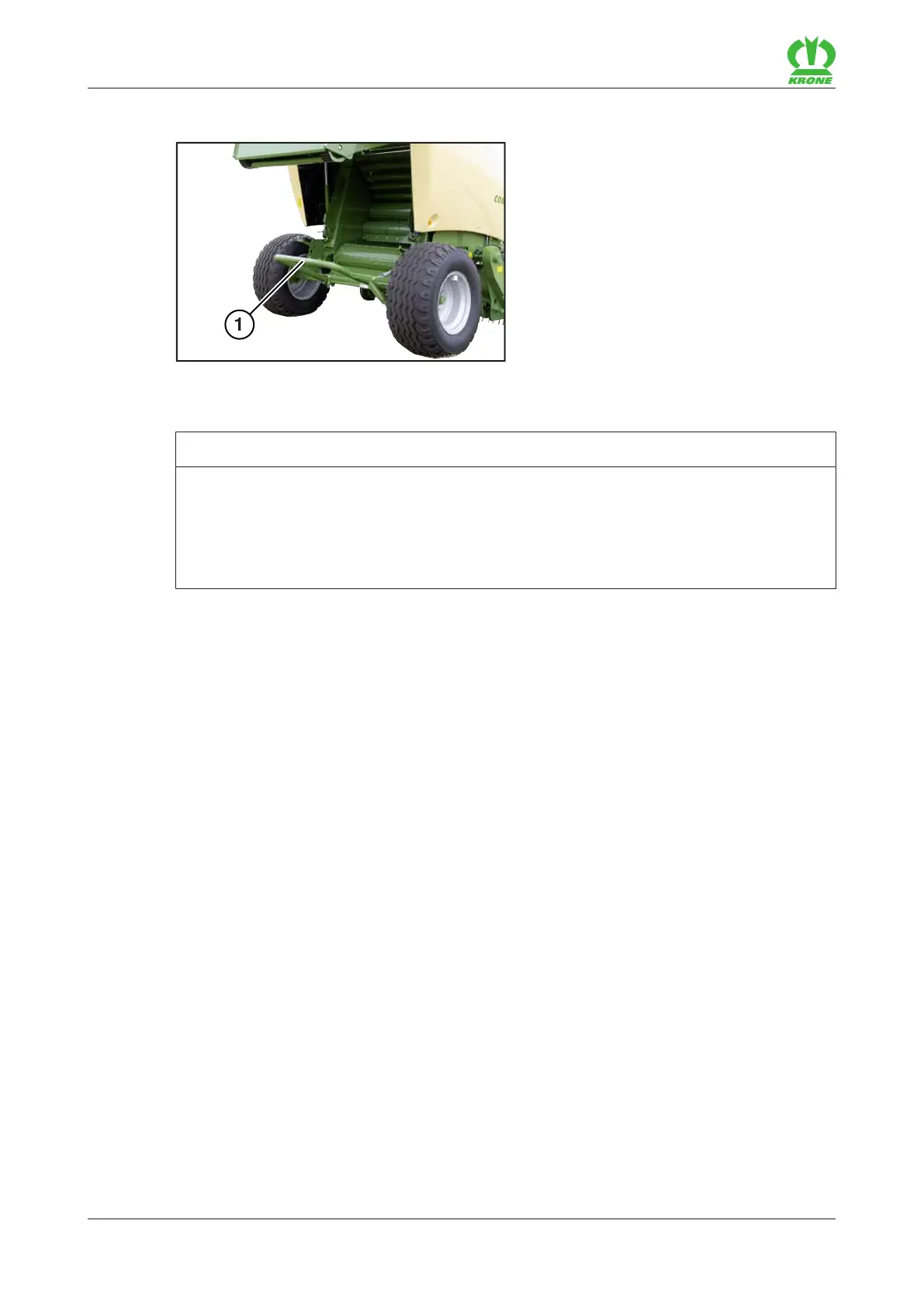

The round bale is automatically conveyed out of the bale chamber by the bale ejector(1) onto
the field.
NOTICE
Machine damage due to an incorrectly positioned bale ejector
The connecting rod can be bent if the bale ejector is not positioned on the axis after ejection.
After the round bale has been laid down, the bale chamber is closed and whilst new crops are
being taken in, the bale ejector must be positioned again on the axis.
 Have the setting of the bale ejector be checked by a KRONE service partner.
8.18 Removing crop blockages
8.18.1 Crop blockage at the right-hand and left-hand end of the pick-up
 While the PTO shaft is running, reverse and actuate the control unit in the tractor (yellow,
3+) several times to lift and lower the pick-up.
 Ensure that the crop press roller unit does not collide with the chassis when raised.
If this does not remove the crop blockage:
 Shut down and safeguard the machine, refer to page27.
CAUTION!Risk of injury due to sharp parts! Always wear appropriate protective gloves
when removing crop blockages.
 Remove the accumulated crops manually.
8.18.2 Crop blockage in the pick-up
 While the PTO shaft is running, reverse and actuate the control unit in the tractor (yellow,
3+) several times to lift and lower the pick-up.
 Ensure that the crop press roller unit does not collide with the chassis when raised.
If this does not remove the crop blockage:
 Shut down and safeguard the machine, refer to page27.
 Remove the baffle sheet, refer to page83.
CAUTION!Risk of injury due to sharp parts! Always wear appropriate protective gloves
when removing crop blockages.
 Manually remove the accumulated crops.
 Mount the baffle sheet, refer to page83.
