15 Terminal menus
15.20 Menu 15 "Settings"
152
Comprima F 155
Original Operating Instructions 150001049_01_en

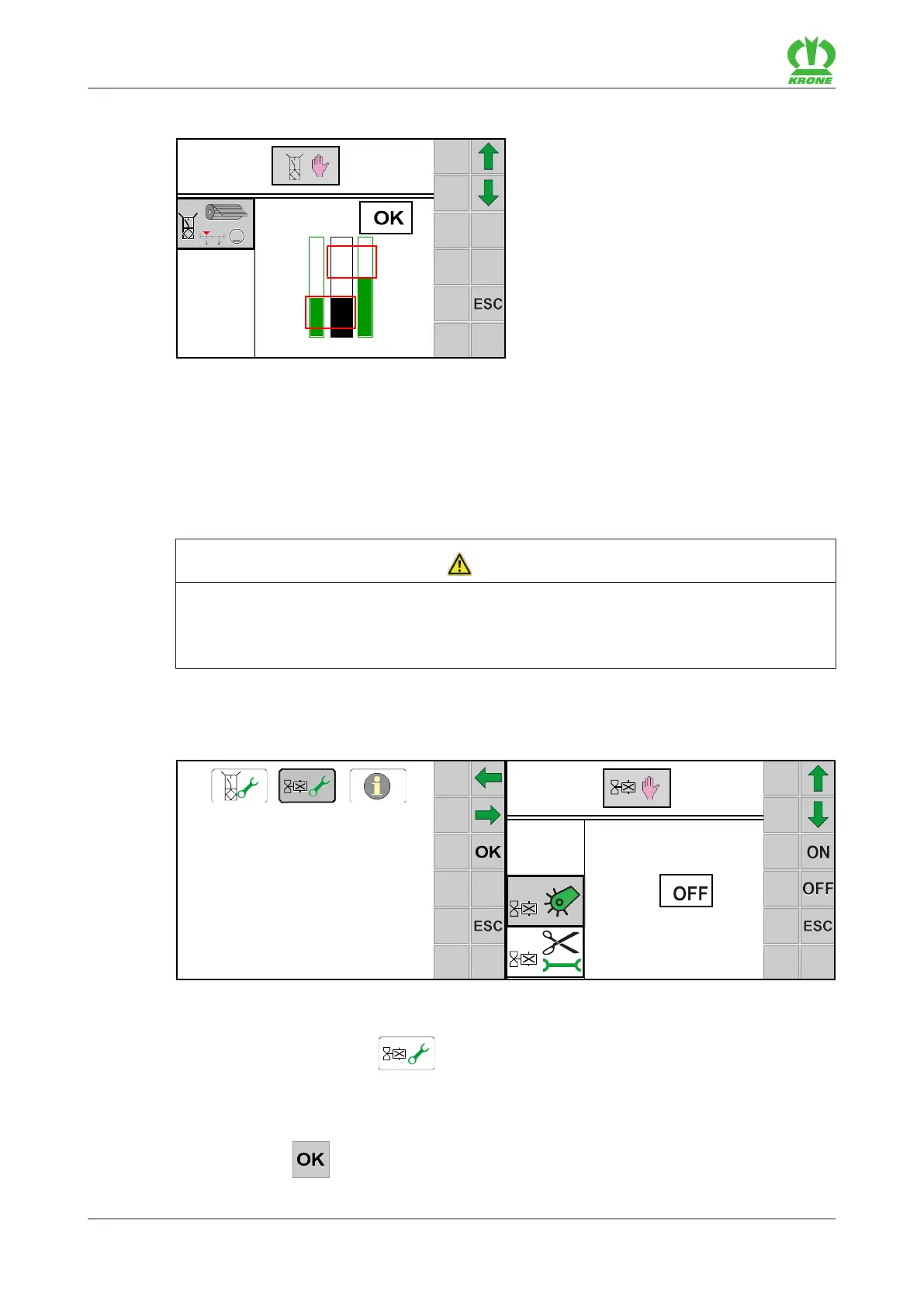

15.20.1.2 Adjusting sensor B61 “Tying 1 (passive)”
5,0V
3,5V
2,5V
1,0V
2,4V
3,5V2,4V
B61
M1
1
15-1
EQ003-106
ü Menu 15-1 “Sensor test” is open.
ü The sensorB61 "Tying 1 (passive)" has been selected.
Saving is only possible when the bar is in the lower or upper rectangle of the bargraph.
To set the feed and end positions, refer to page163.
15.20.2 Menu 15-2 "Actuator test"
WARNING
Risk of injury due to non-observance of the safety routines
If the relevant safety routines are not observed, persons may be seriously injured or killed.
 The safety routines must be read and observed to avoid accidents, refer to page27.
The actuator test is used to test the actuators installed on the machine. An actuator can only be
tested when current is flowing through it. Therefore, in the "Actuator test" menu, the actuator
must be controlled manually for a short time in order to determine possible errors in the actuator
system.
2
state:
K01
K03
15-2
EQG003-031
ü Menu 15 “Settings” is called, refer to page148.
 To open the menu, press
.
ð A warning opens which refers to the operating instructions.
 Observe the safety routine "Run actuator test", refer to page28.
 Confirm with
.
Æ The display shows the "Actuator test" menu.
