Terminal menus 15
Menu 15 "Settings" 15.20
Comprima F 155
Original Operating Instructions 150001049_01_en 153

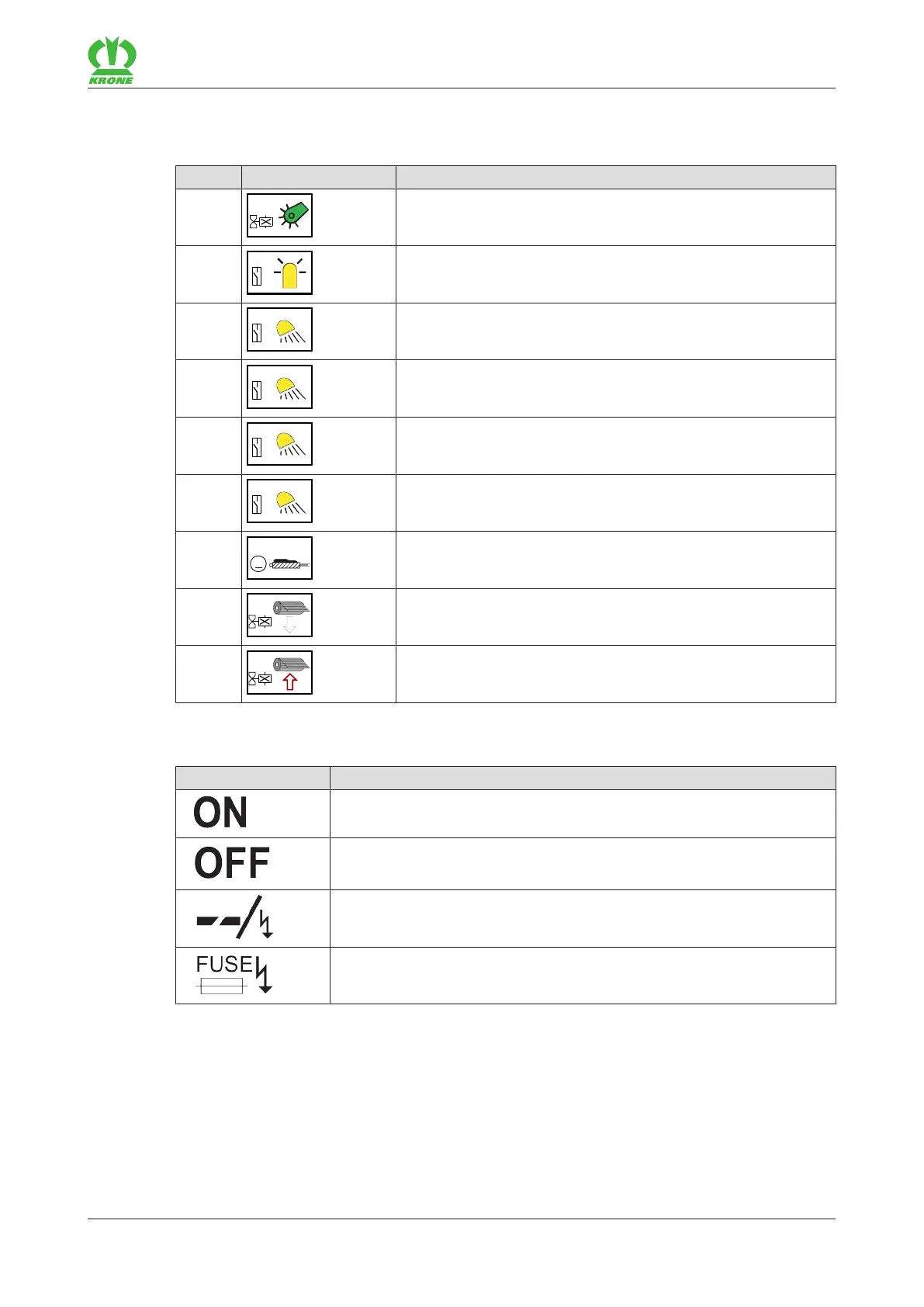

Possible actuators (depending on how the machine is equipped)
An overview of the sensors, actuators and control units is in the circuit diagram.
No. Actuator Designation
K01
K01
Pick-up
E10
E10
Warning beacon (for certain countries)
E20
E20
Working lights net roll (for the “Working lights” version)
E20/
E21
E20/E21
Working lights net roll (for version "Net wrapping and chamber
film wrapping” and "Working lights")
E21
E21
Working lights chamber film wrapping (for the “Net and cham-
ber film wrapping” version)
E22/
E23
E22/E23
Maintenance lighting side hood left/right
M01
M01
M1
Motor tying 1 (passive)
Q26
Q26
Lowering the feed rocker arm
Q27
Q27
Lifting the feed rocker arm
Possible status displays of the actuators
Icon Designation
1
Actuator ON
2
Actuator OFF
3
General actuator error
4
No supply voltage
Possible cause: Fuse defective.
