Commissioning 7
Connecting foreign ISOBUS terminal 7.12
Comprima F 155
Original Operating Instructions 150001049_01_en 65

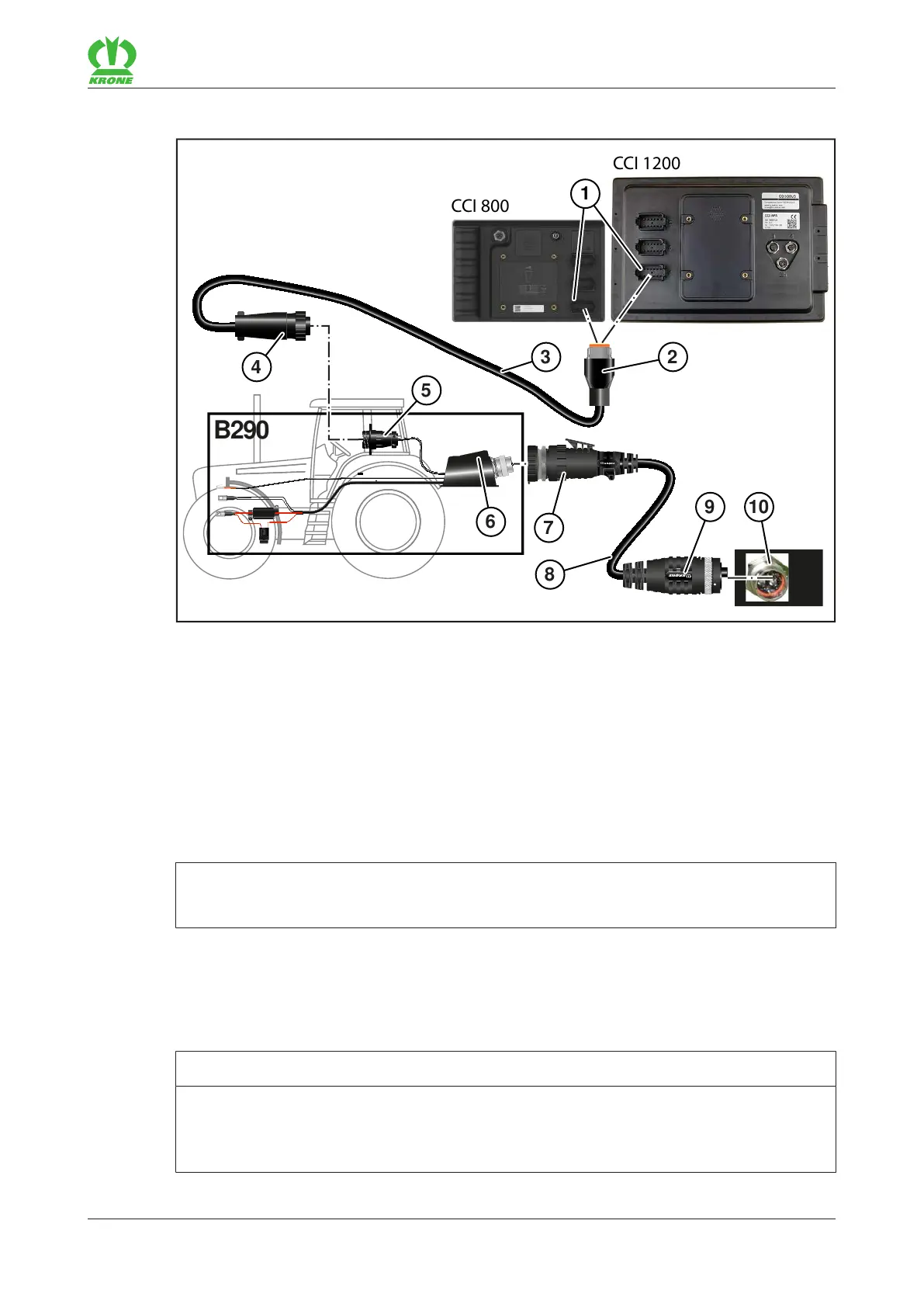

Tractors without ISOBUS system
3
10
B290
4
5
7
8
9
6
CCI 1200
CCI 800
1
2
EQ001-181
ü The machine is shut down and safeguarded, refer to page27.
ü The accessories kit B290 “KRONE tractor retrofitting” is mounted.
Connection terminal to tractor
 Connect the 12-pin plug(2) of the cable(3) to the 12-pin socket(1) of the terminal.
 Connect the 9-pin plug (4) of the cable (3) to the 9-pin socket (5) (In-cab).
Connection tractor to machine
INFORMATION
The cable(8) can be ordered by quoting the order number 20086886*.
 Connect the 9-pole plug (7) of the cable (8) to the 9-pole ISOBUS socket (6) of the tractor.
 Connect the 11-pole plug (9) of the cable (8) to the 11-pole socket (10) of the machine.
7.12 Connecting foreign ISOBUS terminal
NOTICE
Short circuit caused by impurities and moisture in the plug connection
The machine may be damaged by a short circuit.
 Make sure that the plugs and sockets are clean and dry.
