7 Commissioning
7.7 Adjusting drawbar eye
58
Comprima F 155
Original Operating Instructions 150001049_01_en

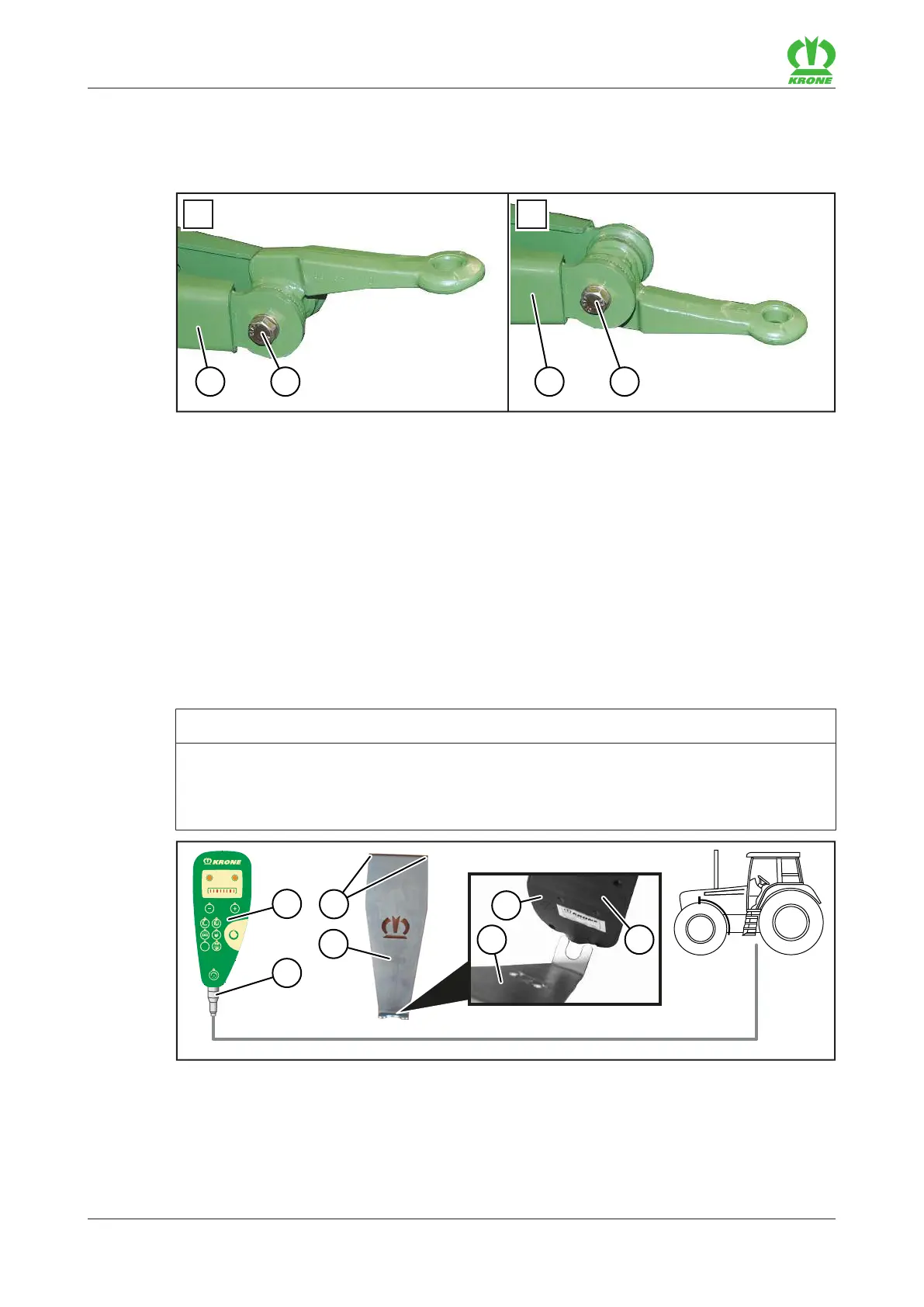

7.7 Adjusting drawbar eye
For "drawbar eye bottom" version
1 2 1 2
I
II
RP000-266
In order to obtain more universal shaft clearance, the drawbar eye can be mounted in position
(I) or (II) on the drawbar(1). Only drawbar eyes for version with "Drawbar eye at bottom" can be
rotated.
 Remove the screw connection(2).
 Rotate the drawbar eye into the desired position(I) or(II) and use the screw connection(2)
to mount it on the drawbar(1).
 Ensure that the toothed disc connections mesh.
7.8 Connecting the KRONE ALPHA operation unit
For “medium electronics” version
NOTICE
Short circuit caused by impurities and moisture in the plug connection
The machine may be damaged by a short circuit.
 Make sure that the plugs and sockets are clean and dry.
ABCDEFGH
2
3
6
7
8
10
9
1
4
4
2
3
5
1
EQ001-210
Mount the support (4) of the operation unit (1) in the tractor cabin
 Mount the support (4) using screws in the drill holes (3) in the driver's field of vision.
 Attach the operation unit (1) to the support (4).
