8 Operation
8.12 Pick-up
80
Comprima F 155
Original Operating Instructions 150001049_01_en
ð The key switches to
.
 To lift the pick-up into the transport position, actuate the control unit on the tractor (yellow,
3+).

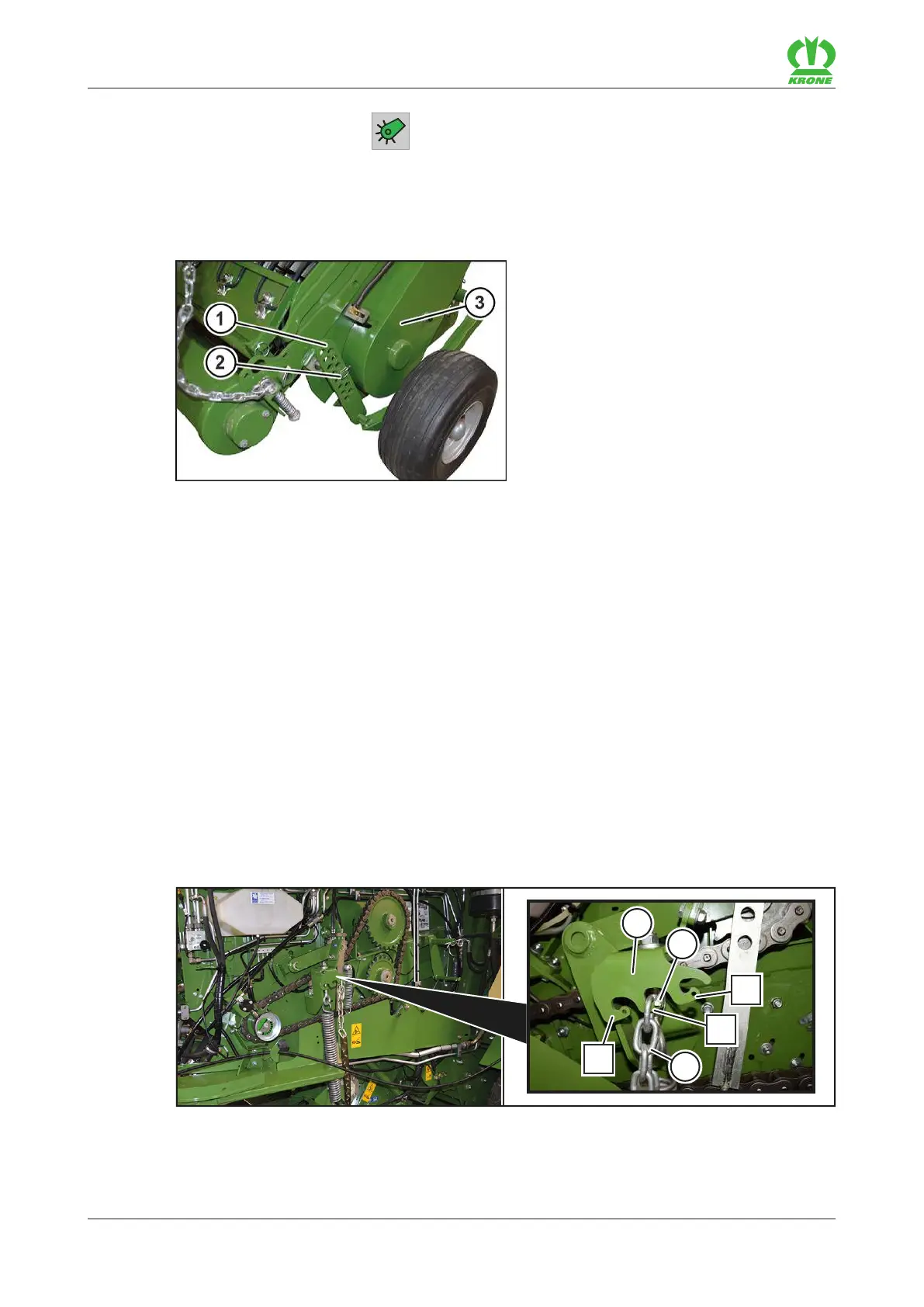

8.12.2 Setting the pick-up working height
RPG000-151
The working height of the pick-up(3) must be set so that the distance between the tines and the
ground is approx. 20-30mm. Also the working height of the pick-up(3) must be adjusted to the
ground conditions.
Make the following setting on the right and left sides of the pick-up in the same way:
 Shut down and safeguard the machine, refer to page27.
 Remove the linch pin(2).
 Push the perforated bar(1) into the required position and secure with linch pin(2).
 Lower the pick-up(3) hydraulically.
 Shut down and safeguard the machine, refer to page27.
 Check whether the distance between the tines and the ground is approx. 20-30mm.
 If required, re-adjust the perforated bar(1).
 Check whether the drawbar height of the machine must be adjusted to the tractor, refer to
page47.
Setting the pick-up working height more precisely
1
3
I
II
III
2
RPG000-127
If ground conditions are extreme, the height of the pick-up can also be set via the chain(3). To
do this, the pick-up can be set higher or lower by one complete chain link or even more
precisely via the chain holder(1).
