8.3 Improving bale chamber filling
72
Comprima F 155
Original Operating Instructions 150001049_01_en
KRONE component Order number
Driver guide rails 20461612*
Fixing material 00904025*
ü The tailgate is opened and secured, refer to page75.
ü The machine is shut down and safeguarded, refer to page27.
 Mount the 6driver guide rails(1) on the starter roller(2).
8.3.3 Mounting additional deflector sheets in the tailgate
1
2
3
RPG000-060
If the finished round bales do not fall out of the bale chamber, 2deflector sheets(1) can be
mounted on the right and left in the machine tailgate.
The deflector sheets(1) can be ordered by quoting the following order number:
KRONE component Order number
Deflector sheets 2x 00275479*
ü The tailgate is opened and secured, refer to page75.
ü The machine is shut down and safeguarded, refer to page27.

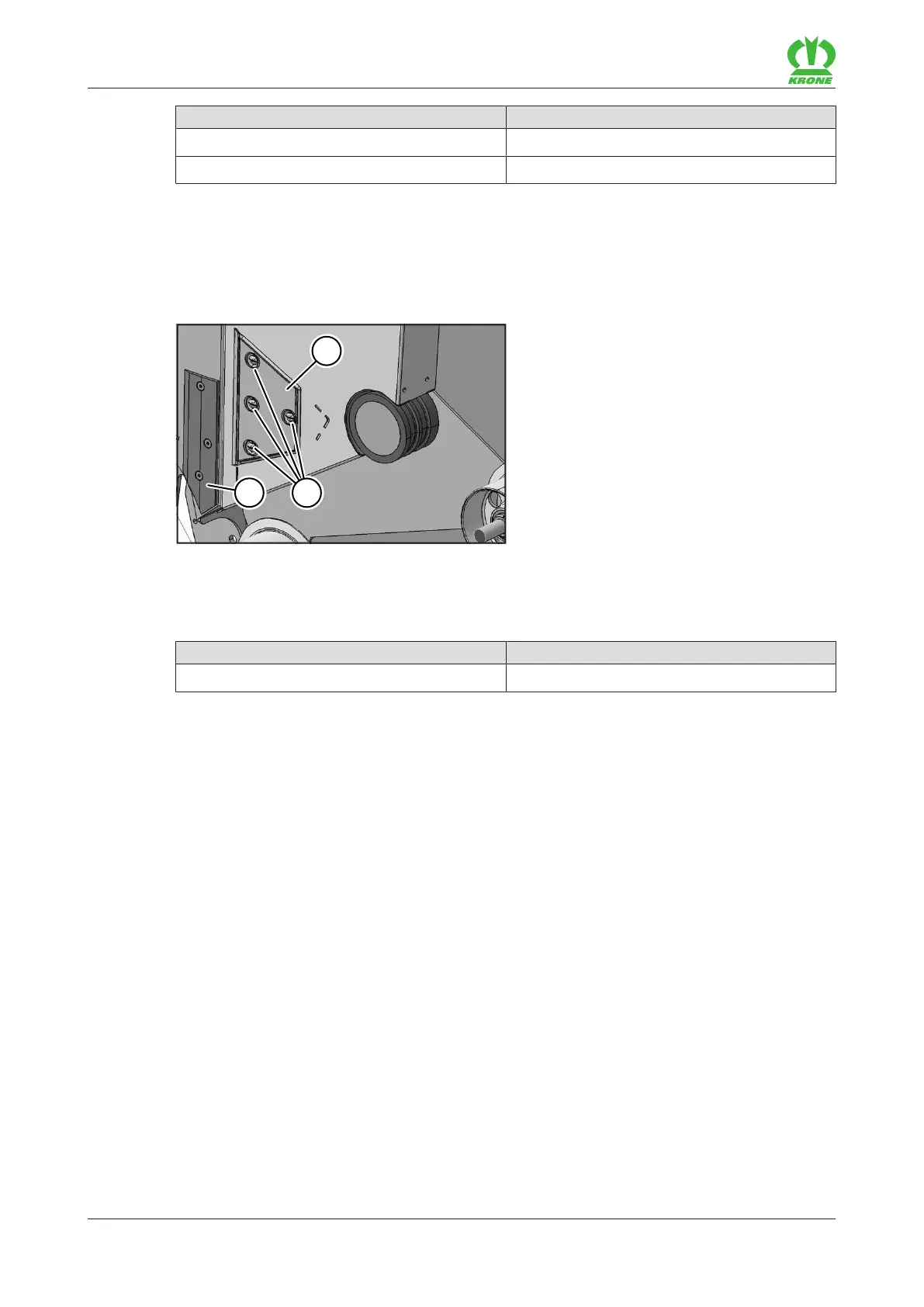

 Mount the deflector sheets(1) on the insides of the bale chamber by screwing the screw
connections(2) into the available boreholes.
If the finished round bales are still not falling out of the bale chamber following installation of the
deflector sheets(1):
 Remove the slide sheets(3) from the right and left sides of the machine housing.
