Checking and setting the axial play of the brake disc at the wrapping material brake 18.20
Comprima F 155
Original Operating Instructions 150001049_01_en 205
18.20 Checking and setting the axial play of the brake disc at the wrapping
material brake
4 5
2 31
3
6
X
4
RP000-023

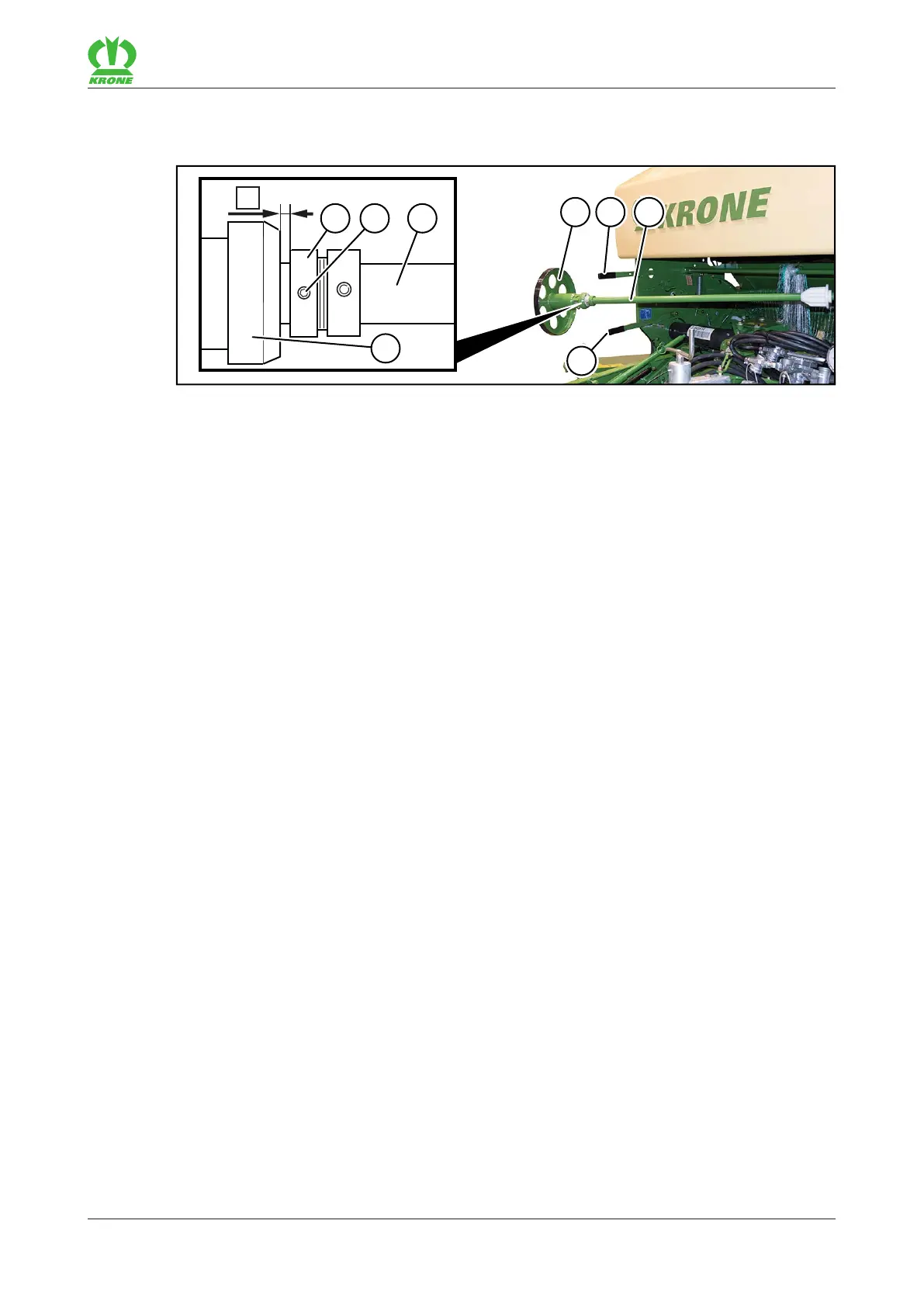

The axial play of the brake disc(4) on the wrapping material brake must be adjusted, etc.,
before setting the sensor B02 "Tying process active ", refer to page149.
The axial play must be X=1–2mm.
 To release the wrapping material brake, press the lever(5) downwards.
 Measure the axial play X of the brake disc(4) to the adjusting collar(1).
If the axial play is not X=1–2mm:
 Raise the lever(6).
 Swivel the brake disc(4) with the roll holder(3) forwards and pull off the brake disc(4).
 Loosen the threaded pin(2) and dismount the adjusting collar(1).
 Use shim rings to set the required axial playX.
 Mount the adjusting collar(1) and tighten the threaded pin(2).
 Push the brake disc(4) onto the roll holder (3) and swivel it back into the machine.
