Connecting the camera to the KRONE ISOBUS terminal CCI 800 or CCI 1200 7.13
Comprima F 155
Original Operating Instructions 150001049_01_en 67
7.13 Connecting the camera to the KRONE ISOBUS terminal CCI 800 or
CCI 1200
2
3
4
5
1
CCI 1200
CCI 800
EQ000-212

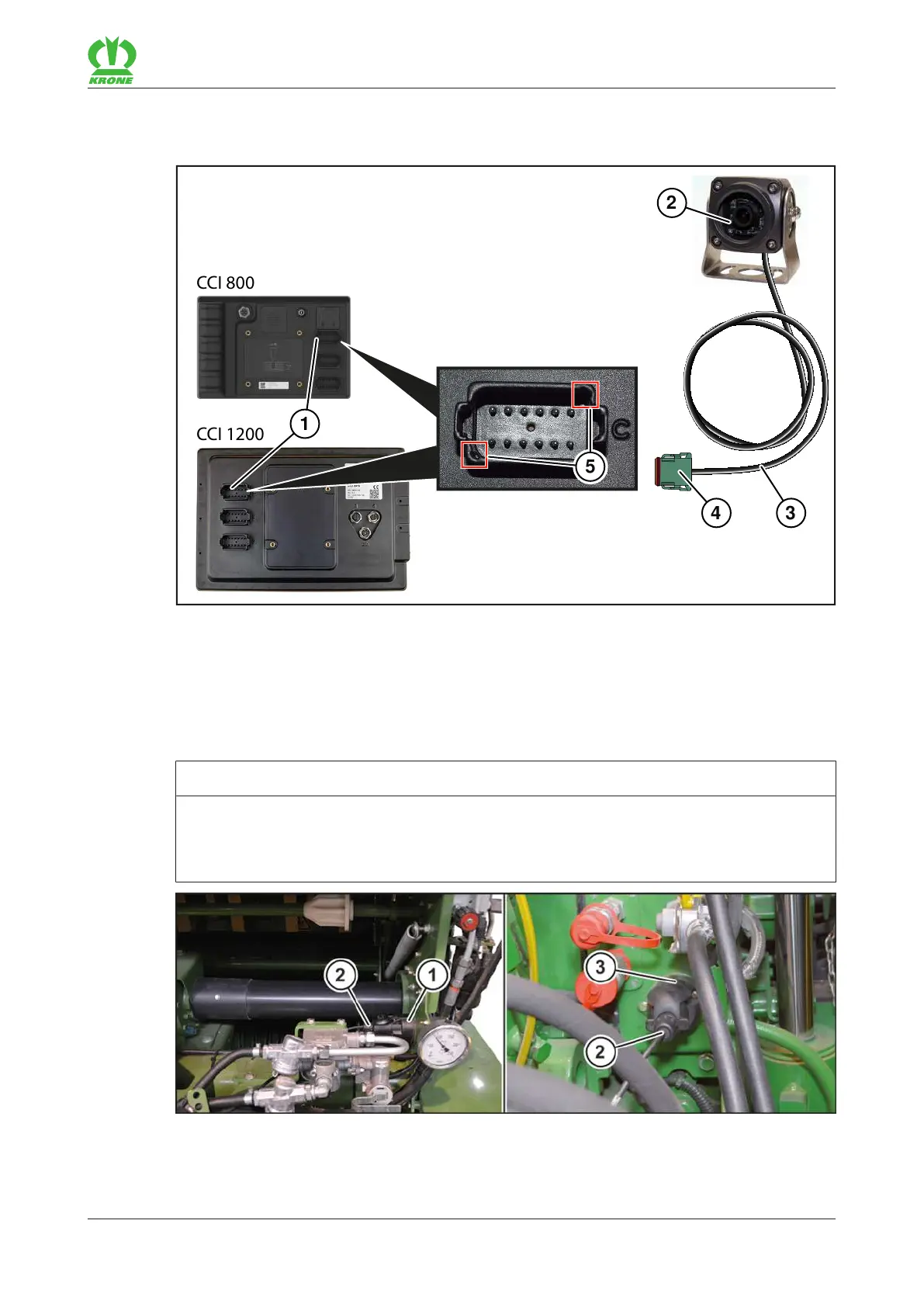

 Insert the plug(4) on the camera(2) cable(3) into the connectionC(1) of the KRONE
ISOBUS terminal CCI800 or CCI1200.
 To connect the plug(4) correctly, ensure that it is aligned with the marked points(5).
7.14 Connecting the road lighting
NOTICE
Short circuit caused by impurities and moisture in the plug connection
The machine may be damaged by a short circuit.
 Make sure that the plugs and sockets are clean and dry.
BPG000-067
