6 Initial operation
6.5 Adjusting the drawbar height
48
Comprima F 155
Original Operating Instructions 150001049_01_en

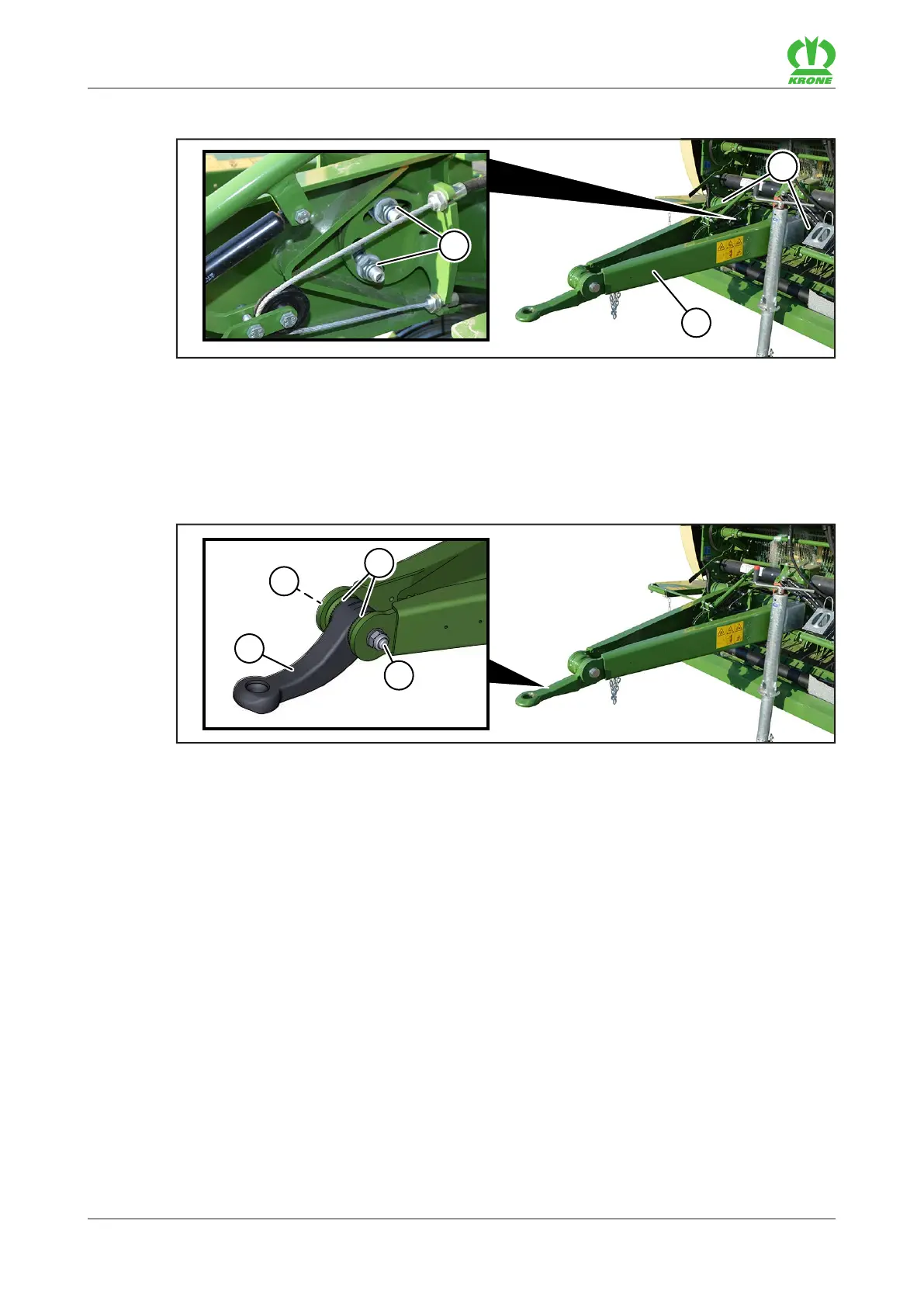

Adjusting the drawbar height
1
2
3
RPG000-087
ü The machine is disconnected from the tractor and stands on the support jack.
 Loosen the screw connections(1) on the right and left sides of the drawbar until the
drawbar(3) can be moved in the toothed disc connections(2).
 Adjust the drawbar(3) to the height of the tractor hitch.
 Ensure that the toothed disc connections(2) mesh.
6
4
5
5
RPG000-136
To adjust the height of the drawbar eye(6):
 Loosen the screw connections(5) until the drawbar(6) can be moved in the toothed disc
connections(5).
 Align the drawbar eye(6) parallel to the ground.
 Ensure that the toothed disc connections(5) mesh.
 Tighten the screw connections(1) and(5). Torque, refer to page185.
 After 10 operating hours tighten the screw connections(1) and(5).
