6 Initial operation
6.7 Removing the tensioning device
52
Comprima F 155
Original Operating Instructions 150001049_01_en
RPG000-057

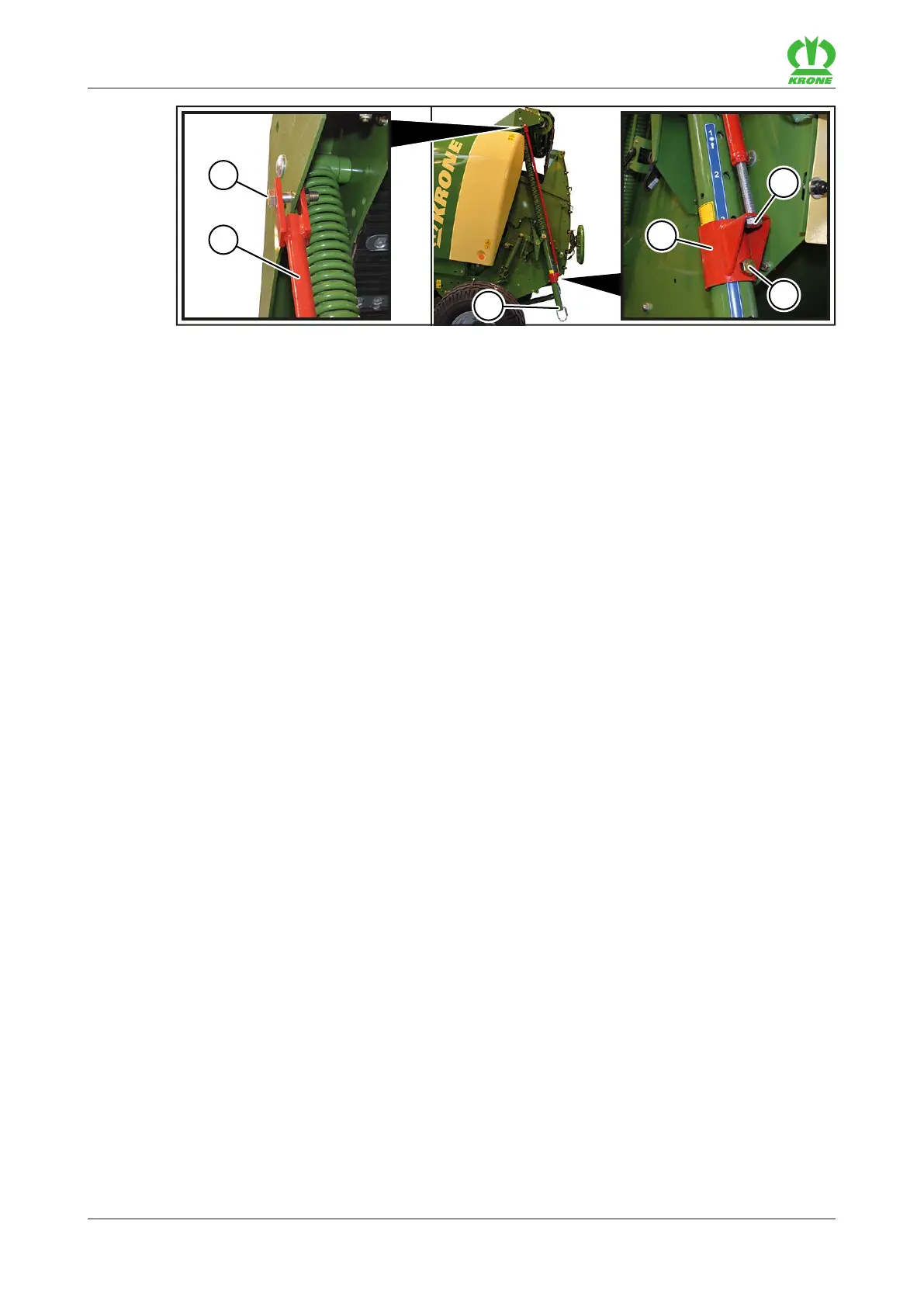

To remove the tensioning device, carry out the following steps on the right and left sides of the
machine in the same way:
Remove the bolt(1).
WARNING!Risk of injury due to tensioning rocker and tensioning device under pressure!
While removing the tensioning device, keep people away from the danger zone of the
spring.
Loosen the screw(2) evenly on both sides of the machine and do not remove it until the
tension has been released from the tensioning rocker.
Remove the screw connection(3).
Slide the slip-on bushing (4) downwards and remove it.
Remove the screw connection(5) and the connecting pipe(6).
Mount bolt (1) on both machine sides at an equal height.
Dispose of all removed parts properly. Reuse is not permitted.
