7 Commissioning
7.9 Connecting KRONE terminal DS 500
60
Comprima F 155
Original Operating Instructions 150001049_01_en
Tractors with integrated ISOBUS system
1
4
7
3
6
9
1
8
2
3
54
6
7

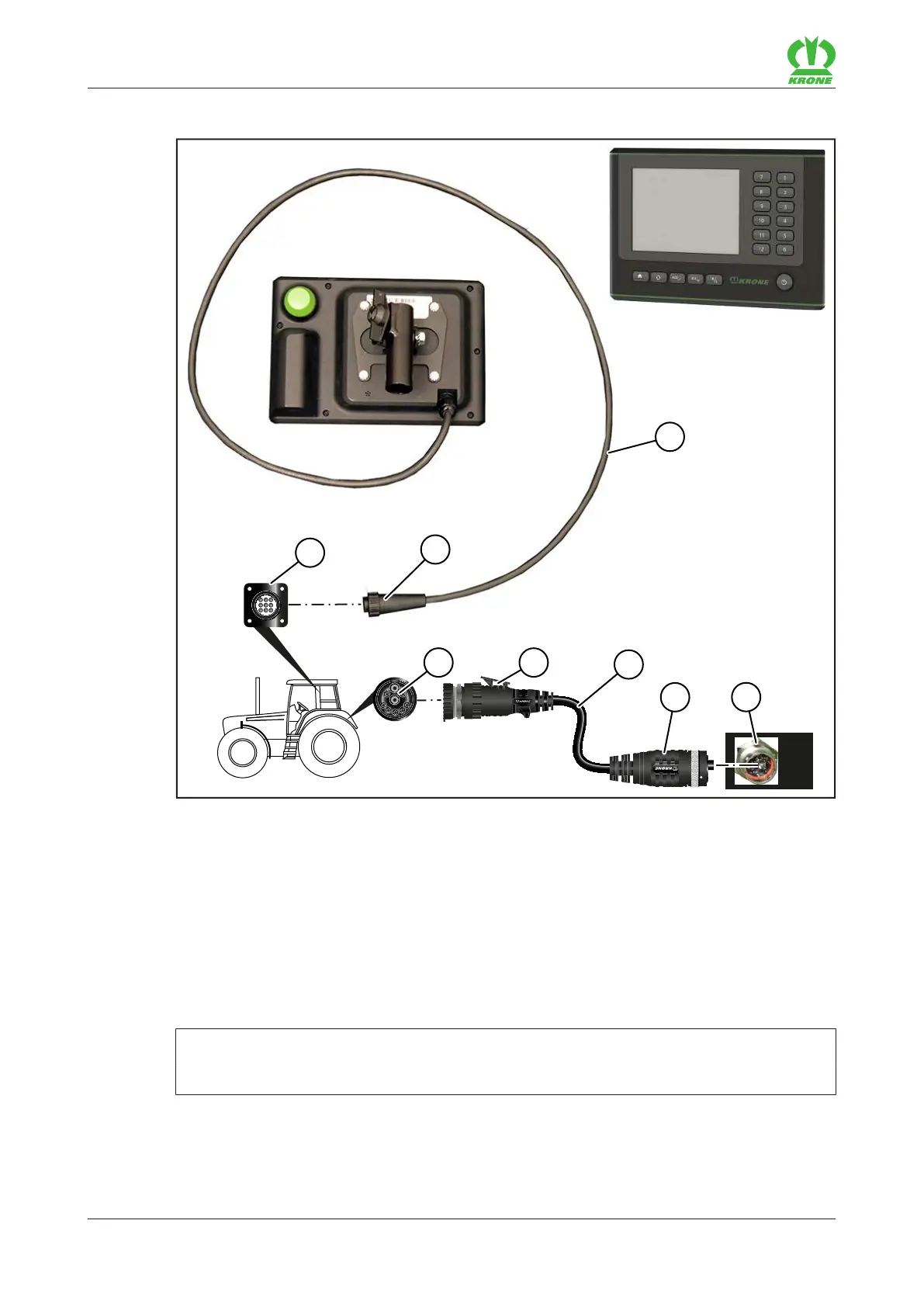

EQ003-251
ü The machine is shut down and safeguarded, refer to page27.
ü The machine is shut down and safeguarded, refer to chapter Safety “Shutting down and
safeguarding the machine” in the operating instructions of the machine.
Connection terminal to tractor
 Connect the 9-pin plug(2) of the cable(1) to the 9-pin socket(3) (In-cab).
Connection tractor to machine
INFORMATION
The cable(6) can be ordered by quoting the order number 20086886*.
 Connect the 9-pin plug(5) of the cable(6) to the 9-pin ISOBUS socket(4) of the tractor.
 Connect the 11-pin plug(7) of the cable(6) to the11-pin socket(8) of the machine.
