Krone 1022623 - Page 85

Operation 8
Net wrapping 8.15
Comprima F 155
Original Operating Instructions 150001049_01_en 85
8
9
10
11
1
6
4
7
3
5
2
2

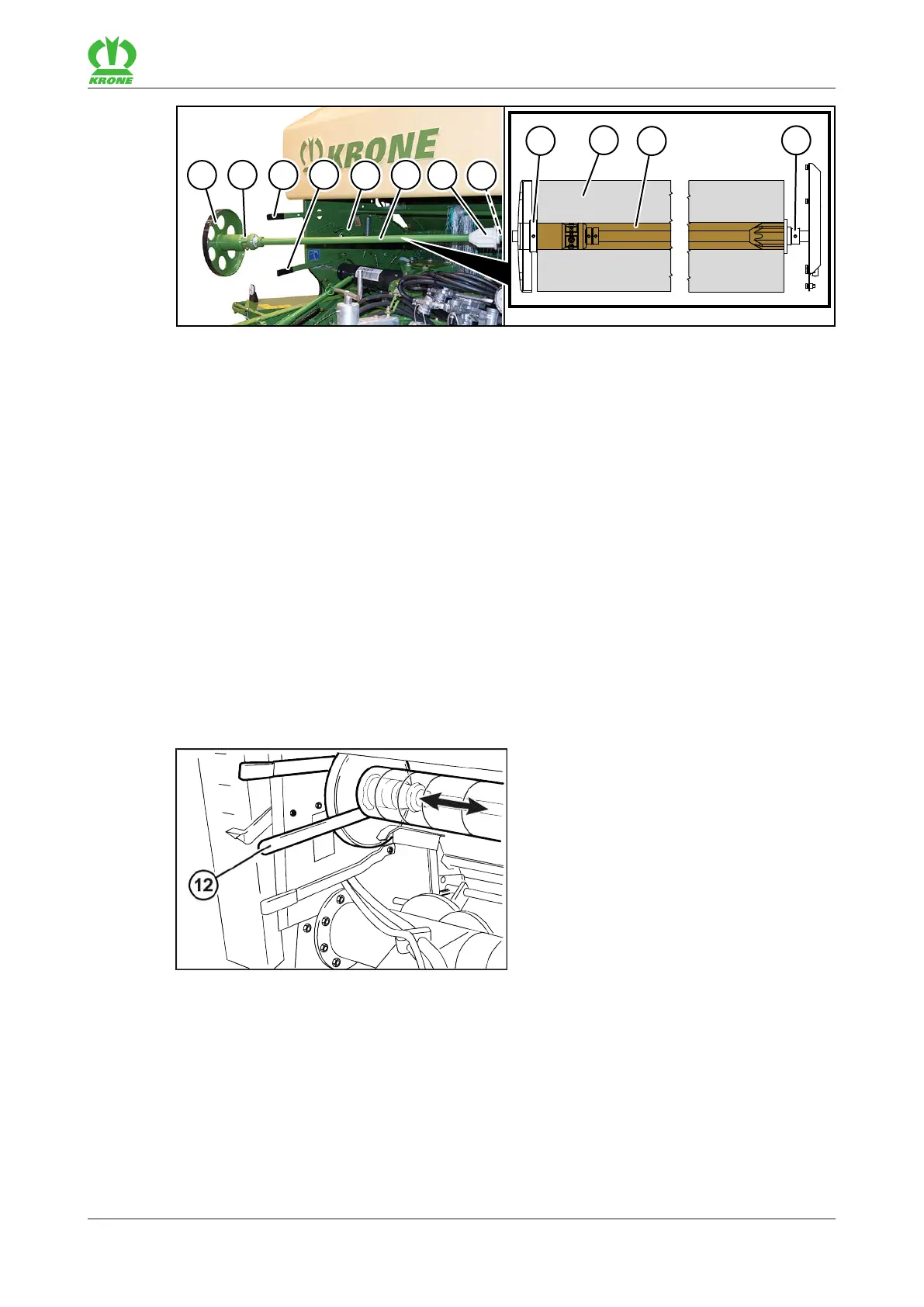

RPG000-016
ü The machine is shut down and safeguarded, refer to page27.
 Raise the lever(4).
 Swivel the roll holder(6) and brake disc(1) forwards.
 Remove the brake disc(1).
 Take a new net roll out of the package. Ensure that the beginning of the net roll faces
towards the machine and can be pulled out from above.
 Push the net roll(9) onto the roll holder(6) and push on the support(7).
 Push the brake disc(1) with the sleeve clamps(2) anti-clockwise all the way into the
sleeve(10) of the net roll(9).
ð The net roll(9) is permanently locked in the roll holder(6).
 Swivel the roll holder(6) back into the machine and lift it into the lock using the lever(4).
 Actuate the wrapping material brake lever(3) so that the roll holder(6) engages with the
wrapping material brake.
 When swivelling in the roll holder, ensure that the tension lever(5) is under the net roll(9).
 Check that the net roll(9) is aligned centrally. To do this, measure the distances to the left
and right side walls.
RPG000-017
If the net roll(9) has still not been centrally aligned:
 Loosen both adjusting rings(8,11).
 Use a mounting lever(12) to push the net roll(9) in the required direction of the arrow until
the net roll(9) is positioned in the centre.
 Push both adjusting rings(8,11) each with a distance of 2-3mm onto the sleeve(10) and fix
them in this position.
