Krone Big Pack 890 HS - Namur Sensor D = 30 MM

Maintenance – lubrication
271
13.8.1.3 Namur sensor d = 30 mm
a
BPXC0172
2
1
3

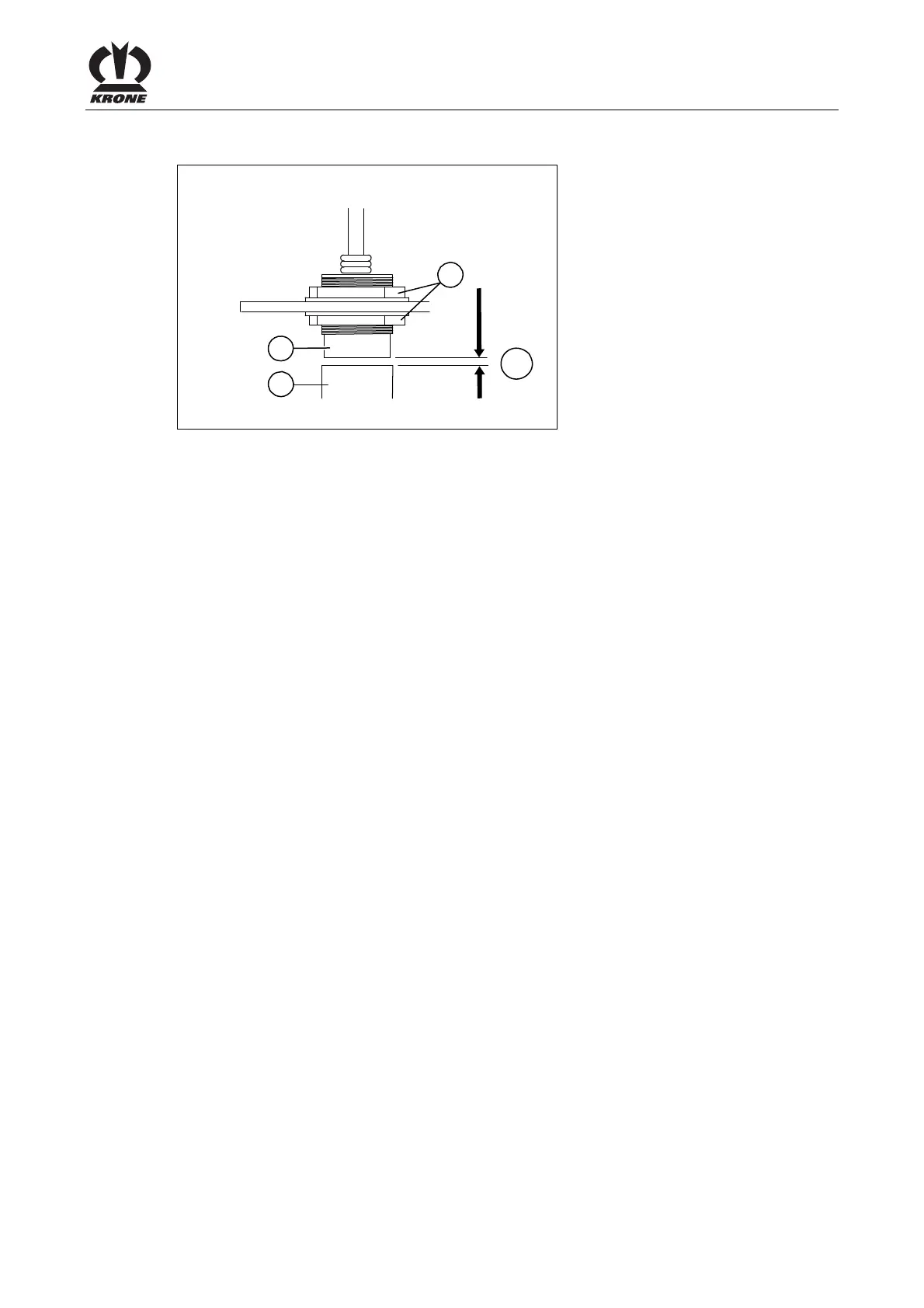

Figure 197
The dimension between the encoder (2) and the sensor (1) must be "a" = 5 mm .
Setting
• Loosen the nuts on either side of the sensor.
• Turn the nuts until dimension "a" = 5 mm is reached.
• Tighten the nuts again.
