3.17 Flywheel brake
WARNING! - Unexpected movements parts of the baler!
Effect: Danger to life or serious injuries
• Always activate the flywheel brake before coupling or uncoupling the universal shaft
• Always activate the flywheel brake before carrying out any maintenance works
CAUTION! - Flywheel brake not released!
Effect: Damage to the machine
Before engaging the P.T.O. shaft always release the flywheel brake first.
1
BPHS0010

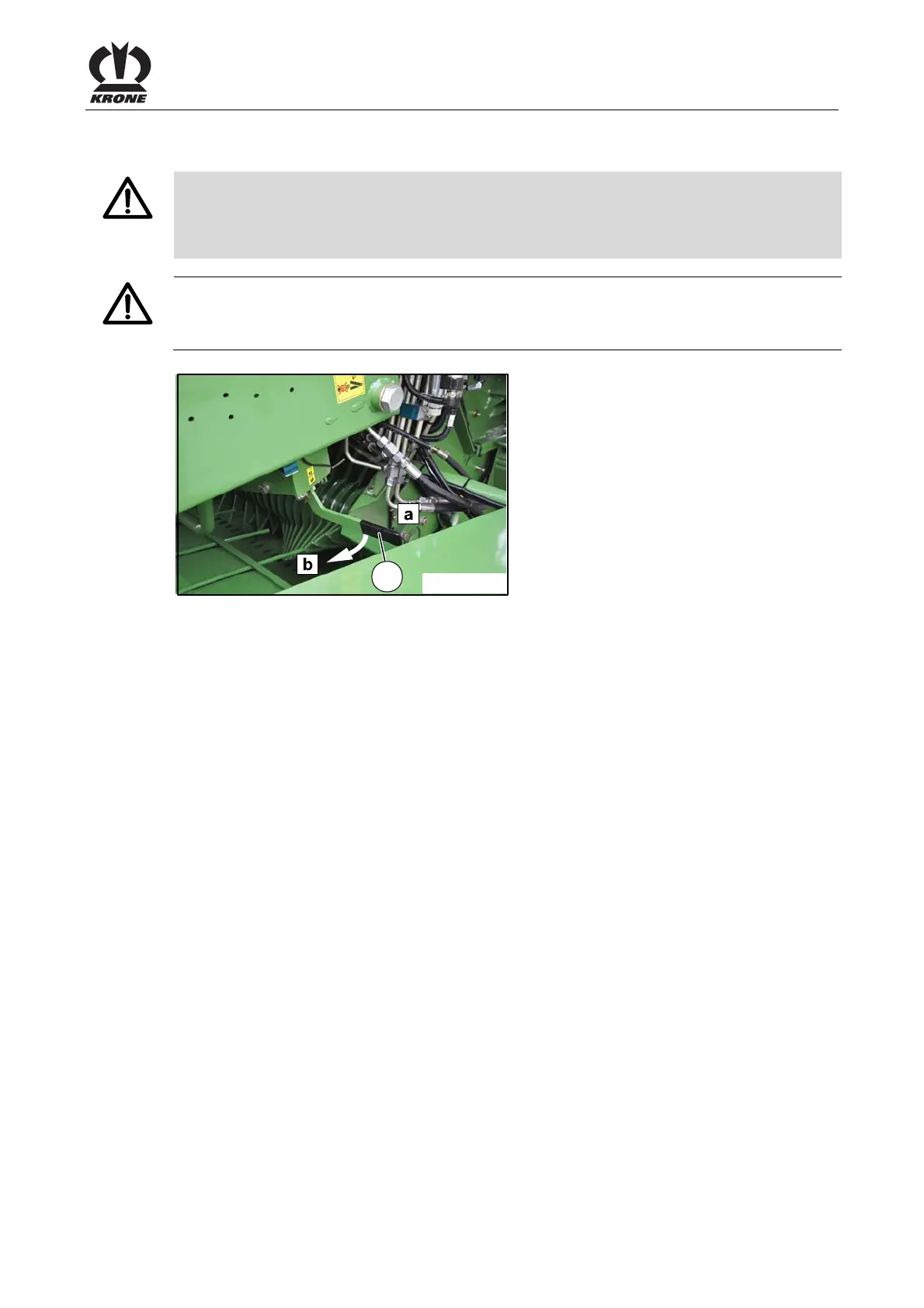

Fig. 14
Pos. a = flywheel unbraked Pos. b = flywheel braked
The flywheel brake of the flywheel is located at the left side of the machine on the drawbar.
The flywheel brake (1) avoids an unexpected start-up of the movable parts of the baler during
maintenance works. The flywheel is retained by a brake strap.
• To activate the flywheel brake move the brake lever (1) on the flywheel from
position (a = unbraked) into position (b = braked). The flywheel is now braked.
When the electronics are turned on, the machine emits a horn signal.
