Start-up
63
Pos: 18.27 /BA/Einlei tung/Maschinenüber sicht/Großpackenpr essen/Medium - Elektr onik @ 61\mod_12992231 69539_78.doc @ 570971
Medium Version Electronics
Pos: 18.28 /BA/Inbetr iebnahme/Großpac kenpresse/Hydraulikan schluss Tabelle Mediu m-Elektronik Big Pac k HS Baureihe @ 62\mod_12994 99276293_78.doc @ 572295
4

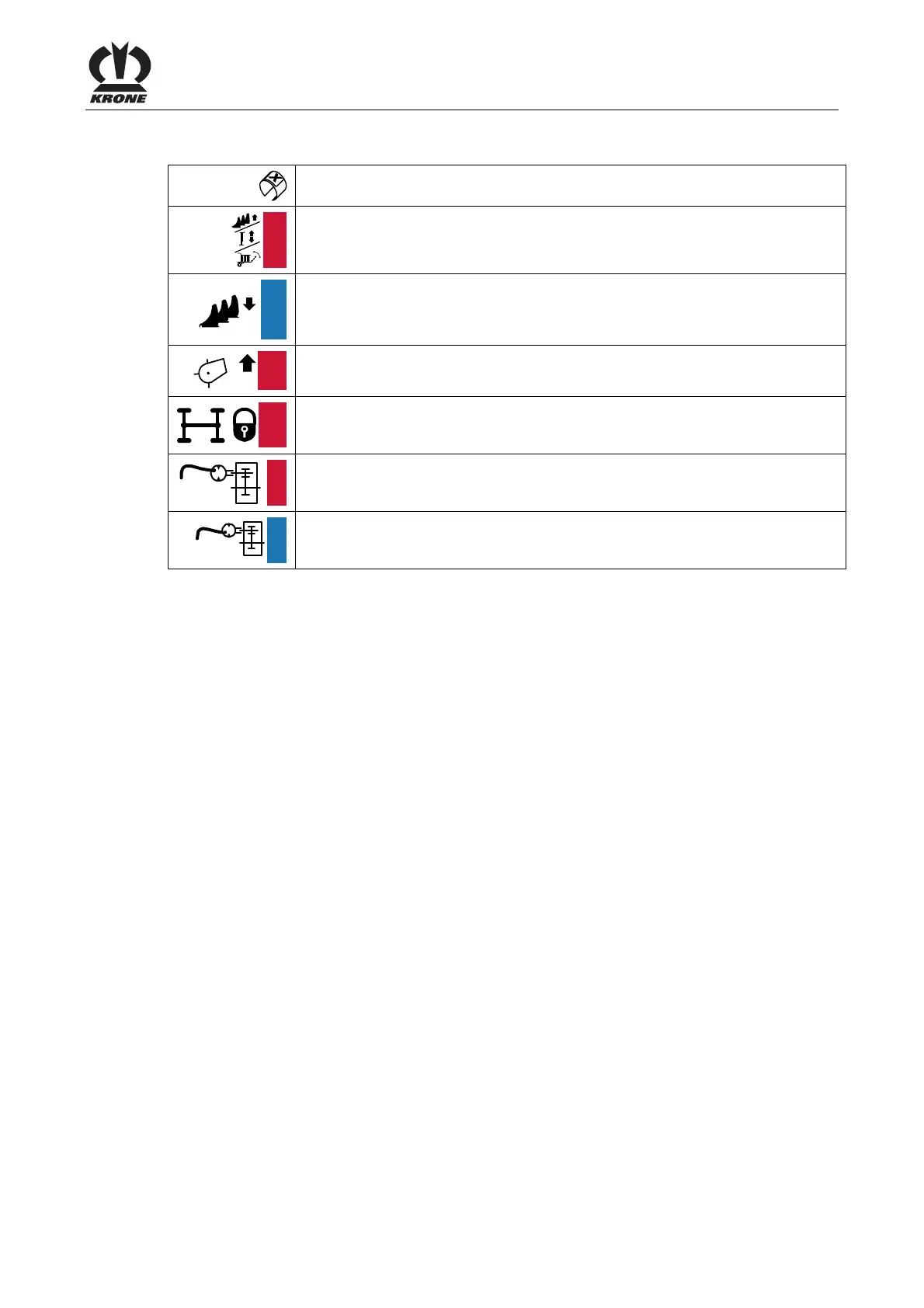

Connection for control block for Medium version
• Close blade bar, lift/lower parking jack, open/close roller chute,
deploy/retract bale ejector (red 4)
4
Connection for control block for Medium version
• Open blade bar (blue 4)
2
Single-action control unit (red 2):
• Lift pick-up
7
Single-action control unit (red 7):
• Lock / Release steering axle
8
P
Connection for start-up aid
• Pressure line (red 8)
8
T
Connection for start-up aid
• Return flow line (blue 8)
Pos: 18.29 /BA/Inbetr iebnahme/Großpac kenpresse/Hydrauliksc hläuche ankuppeln @ 17\ mod_1236332484838_78. doc @ 204899
• Take the hydraulic hoses (1) out of their support (2) on the drawbar
• Remove the cover caps on the couplings of the hoses
• Thoroughly clean the plug-in connections of the hydraulic hoses before plugging them in
