kruss DSA100 - Vb) Slots and Addresses

page 106 Appendix
Dosing unit Number of
EM3200
Addresses Slot assignment
DS3227 (7 syringes)
3 4, 5, 6
Module 1 (Adr. 4)
1,2: syringe revolver
3,4: syringe drivers 1, 2
Module 2 (Adr. 5)
1,2,3,4: syringe drivers 3-
6
Module 3 (Adr. 6)
1: syringe driver 7
DS3228 (8 syringes)
3 4, 5, 6
Module 1 (Adr. 4)
1,2: syringe revolver
3,4: syringe drivers 1, 2
Module 2 (Adr. 5)
1,2,3,4: syringe drivers 3-
6
Module 3 (Adr. 6)
1,2: syringe drivers 7, 8

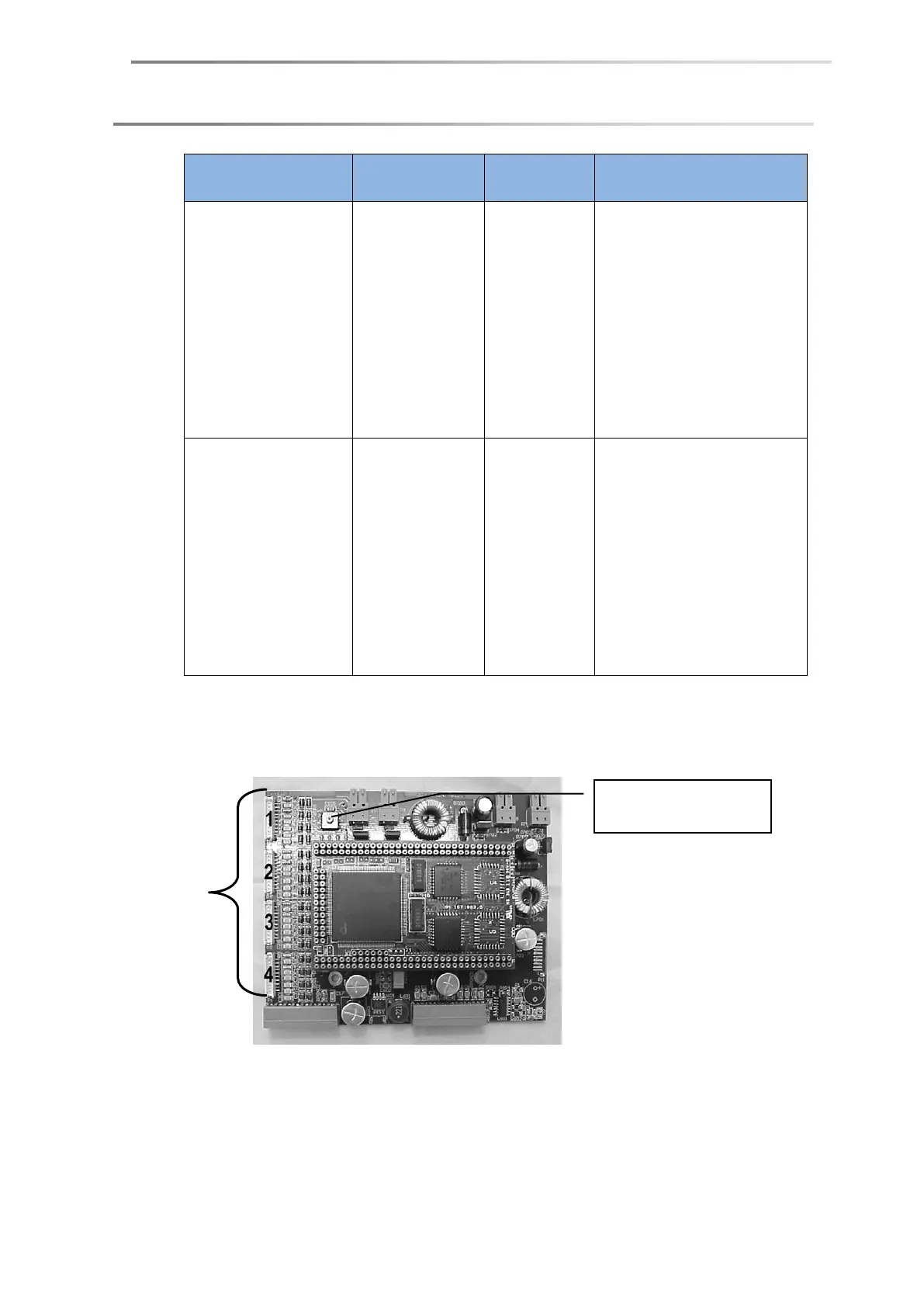

Vb) Slots and addresses
The electronics module EM3201 has four slots and a screw for setting the address.
Stots 1-4
Setting the board’s
address
