kruss DSA100 - Mounting HC10 on Environmental Chamber; Liquid and Gas Connections for HC10

Humidity chamber HC10 page 81

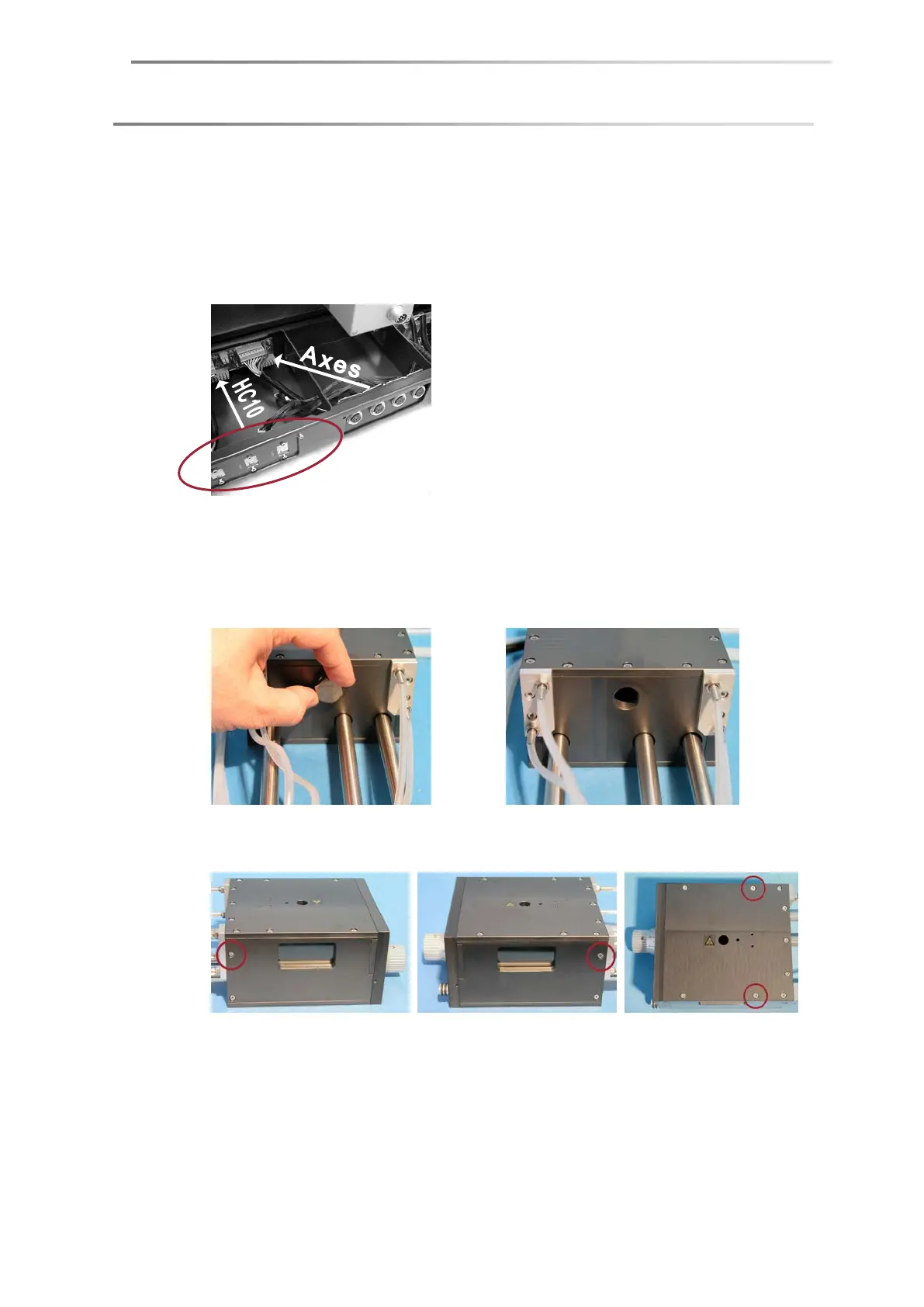

This is done as described in Chapter III for the axes, but with two differences:
 The connection socket for the chamber is built into the left-hand side of the
rear panel of the DSA100.
 The connection plate is also built in on the left. The right-hand side is reserved
for the axes.
SPAC S PA C S PAC SPAC
12.4 Mounting on the TC30/40 environmental chamber
1. Remove the screw on the rear panel (or the protective gas connection, if
present).
2. Remove the screws on the left and right hand side and on the top of the
chamber marked in the following illustrations.
left right top
