Mounting axes page 33

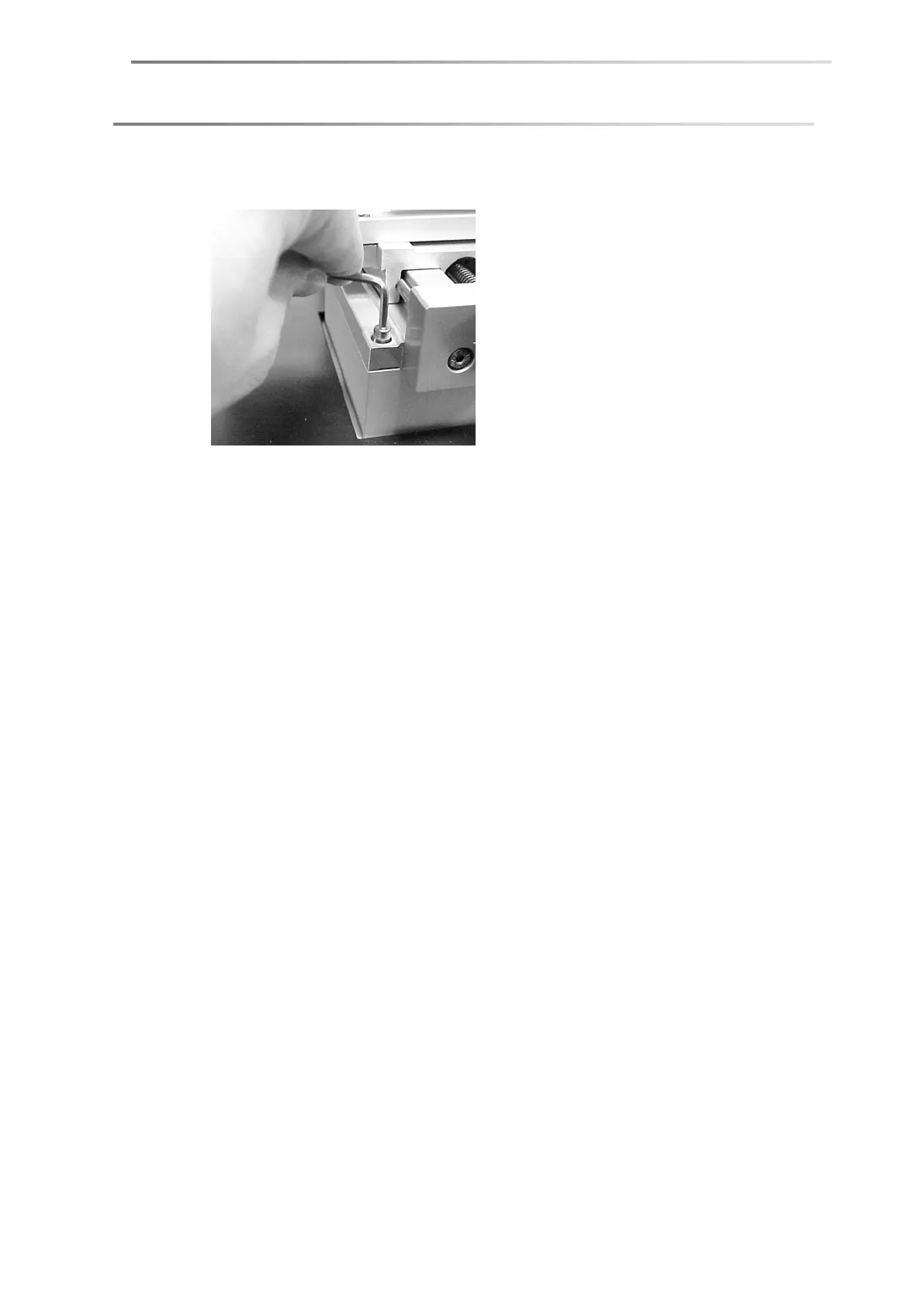

3. Screw off the four screws that connect the lowest axis to the spacer (3 mm allen
wrench).
Hold the axis firmly with your other hand so that it cannot fall to the ground.
4. Remove the clips that are attached with the screws and remove the axes from
the spacer.
SPAC S PA C S PAC SPAC
7.3 Mounting axes
Safety note
The axes are fixed at four edges with one screw each. Tighten up the screws in
rotating order to achieve uniform stress and avoid tilting.
Fixing strips
Each axis is either screwed onto a spacer or onto another axis. To mount an axis,
fixing strips are required as follows:
Two strips without threads for attaching an axis to a spacer
Two strips with threads for attaching a z-axis to an x-axis or y-axis
