Environmental chambers TC30 and TC40 page 75

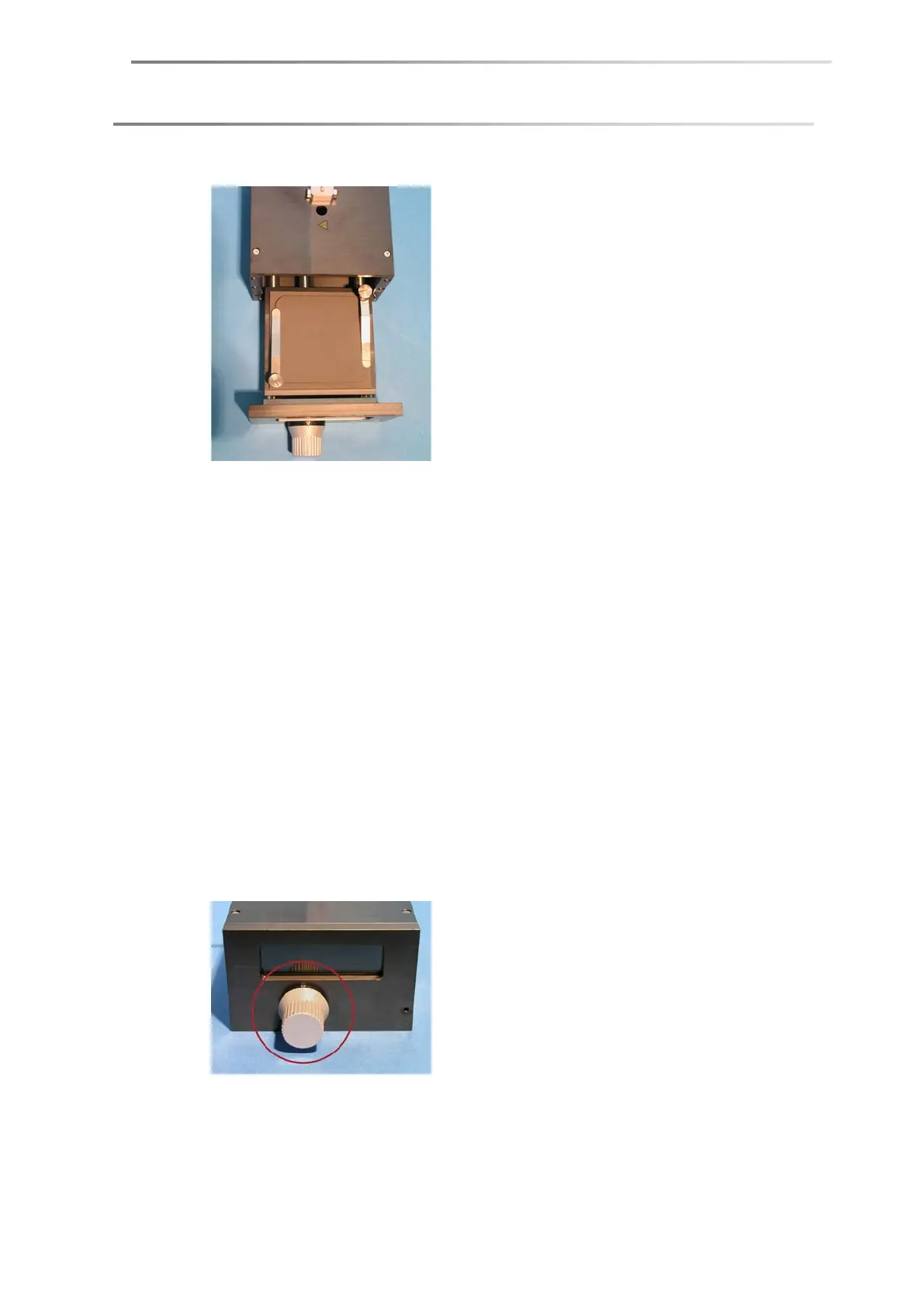

3. Fit the two holding clamps in the sample chamber if required.
4. Place the sample on the base plate. Secure it with the two holding clamps if
required.
5. Close the sample drawer.
11.6.2 Positioning the chamber
1 Lower the sample stage.
2. Move the dosing needle so that it appears in the camera image.
3. Raise the sample stage slowly so that the needle moves through the opening.
If horizontal axes are fitted: Adjust the horizontal position accordingly.
Do not move the chamber horizontally while the needle is in the opening.
11.6.3 Positioning the sample perpendicular to the optical axis
Position the sample using the adjusting screw so that the needle lies above the
required dosing position.
