8 Manual single-dosing unit DS3200/3201
Manual singe-dosing units are available in two versions:
 DS3200 with disposable syringes
 DS3201 with glass syringes
SPAC S PA C S PAC SPAC
8.1 Fitting a disposable syringe
For the manual dosing unit disposable syringes are used which must be inserted in
the fixture.

The inner walls of the disposable syringes may be wetted with silicone oil as
lubricant.

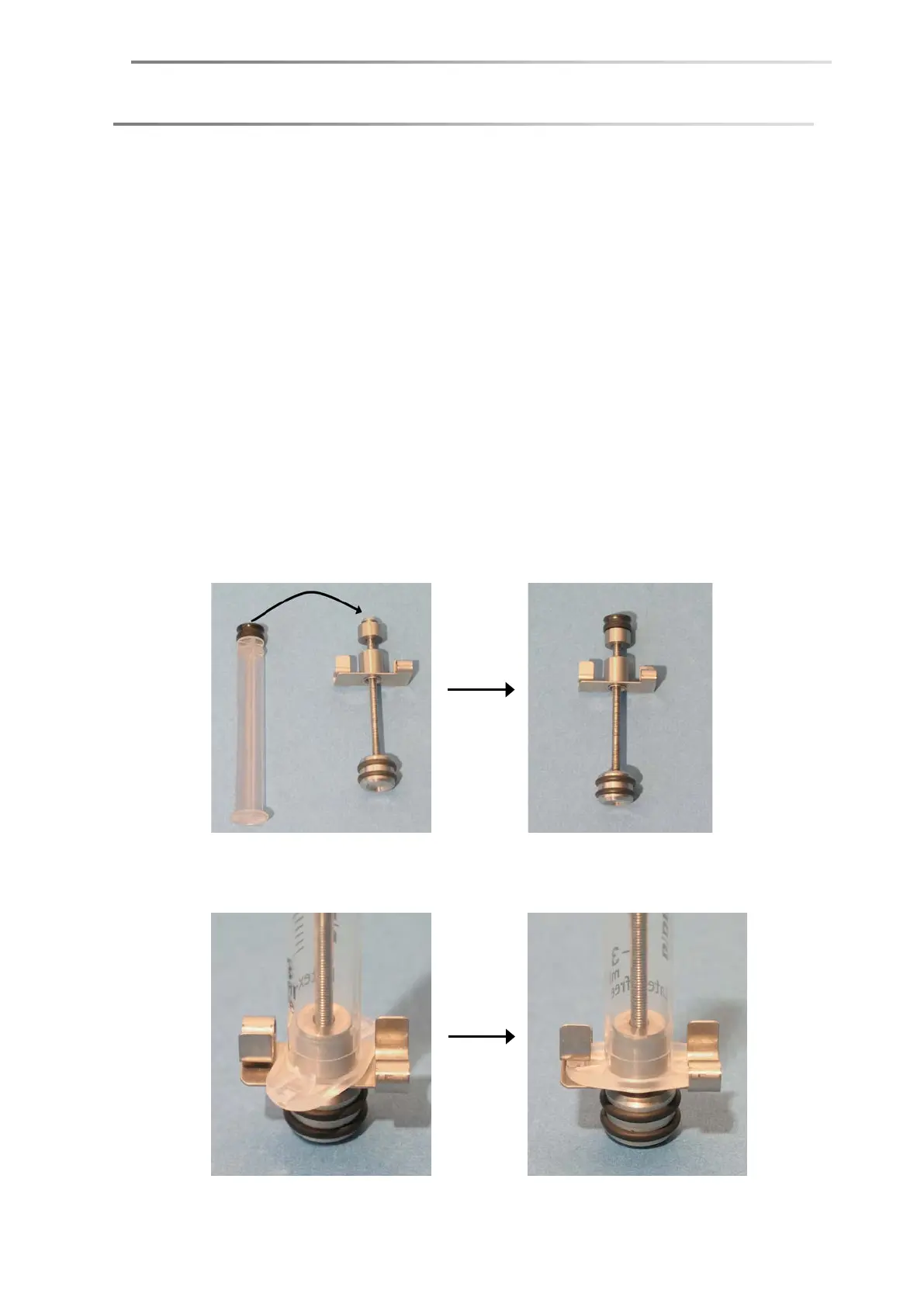

1. Take a syringe out of the packaging and pull out the plunger.
2. Remove the rubber attachment from the syringe plunger and place it on the
metal syringe plunger with setscrew.
3. Rotate the plunger upward and push it into the disposable syringe.
4. Rotate the syringe and slide its head under the holding clip.
5. Click the syringe into the clamp of the syringe support.
