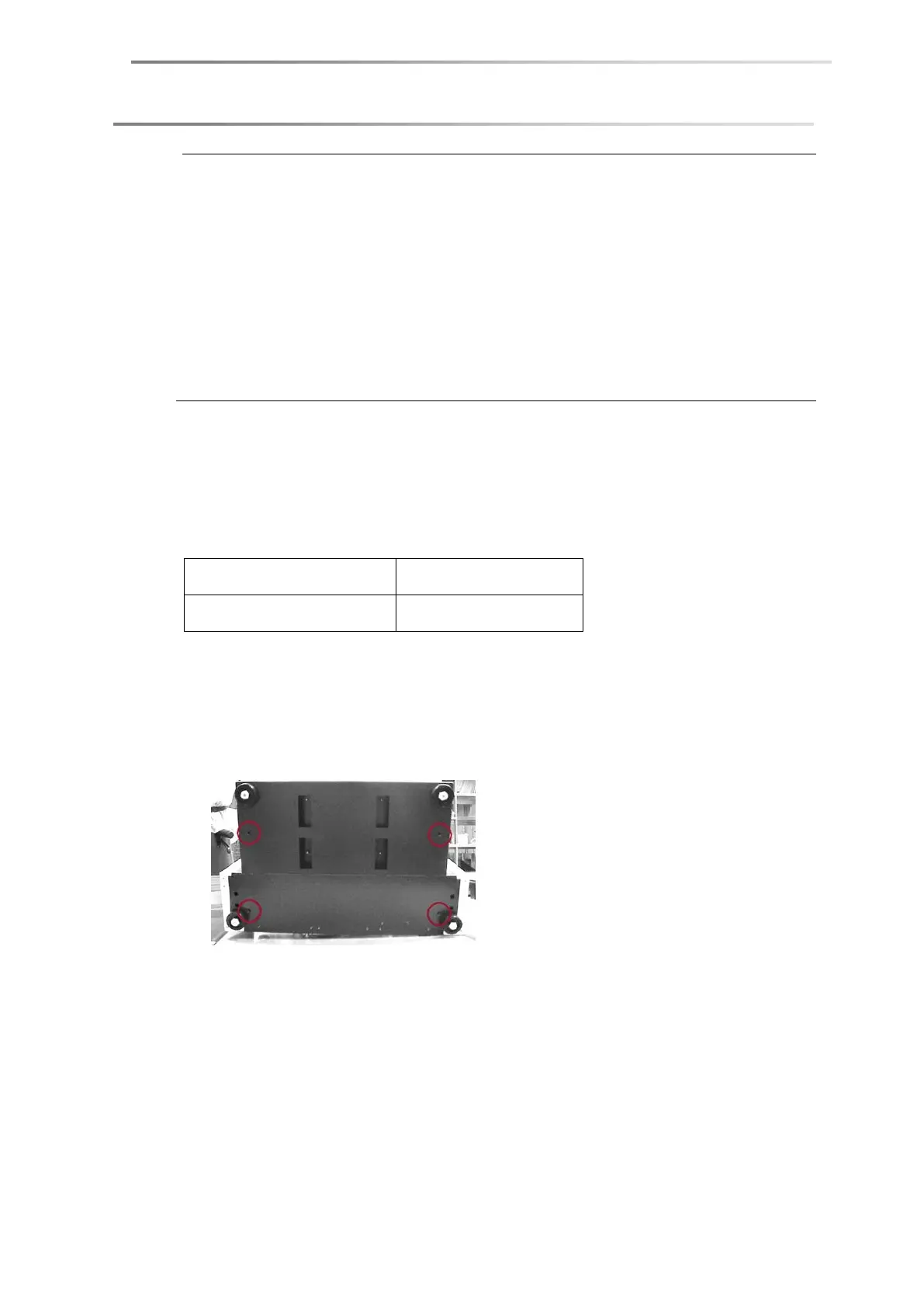

Mounting axes page 45
CAUTION
Damage by projecting y-axis
The long y-axis (range of movement 350 mm) could be damaged during the tilting
process.
Before the tilting movement move the axis so that it does not project from the
side moving downward.
Carefully check the maximum possible axis tilt angle at the required axis setting
by increasing the tilt angle step by step; do not exceed this maximum angle.
Do not operate the tilting table in case of an installed high-temperature dosing
system DS3241.
7.6.2 Weight and dimensions (not mounted)
Weight 33.1 Kg
Dimensions (W × D × H) 1190 × 400 × 550 mm
7.6.3 Mounting the tilting table
Assembling a tilting table should be carried out with three persons.
1. Turn the DSA100 aside. Four threaded holes are driven into the bottom.
2. Unscrew the four feet of the DSA100.
3. Put the DSA100 onto the tilting table so that the rear panel connections of the
DSA100 and the tilting table lie on the same side.
