page 102 Appendix

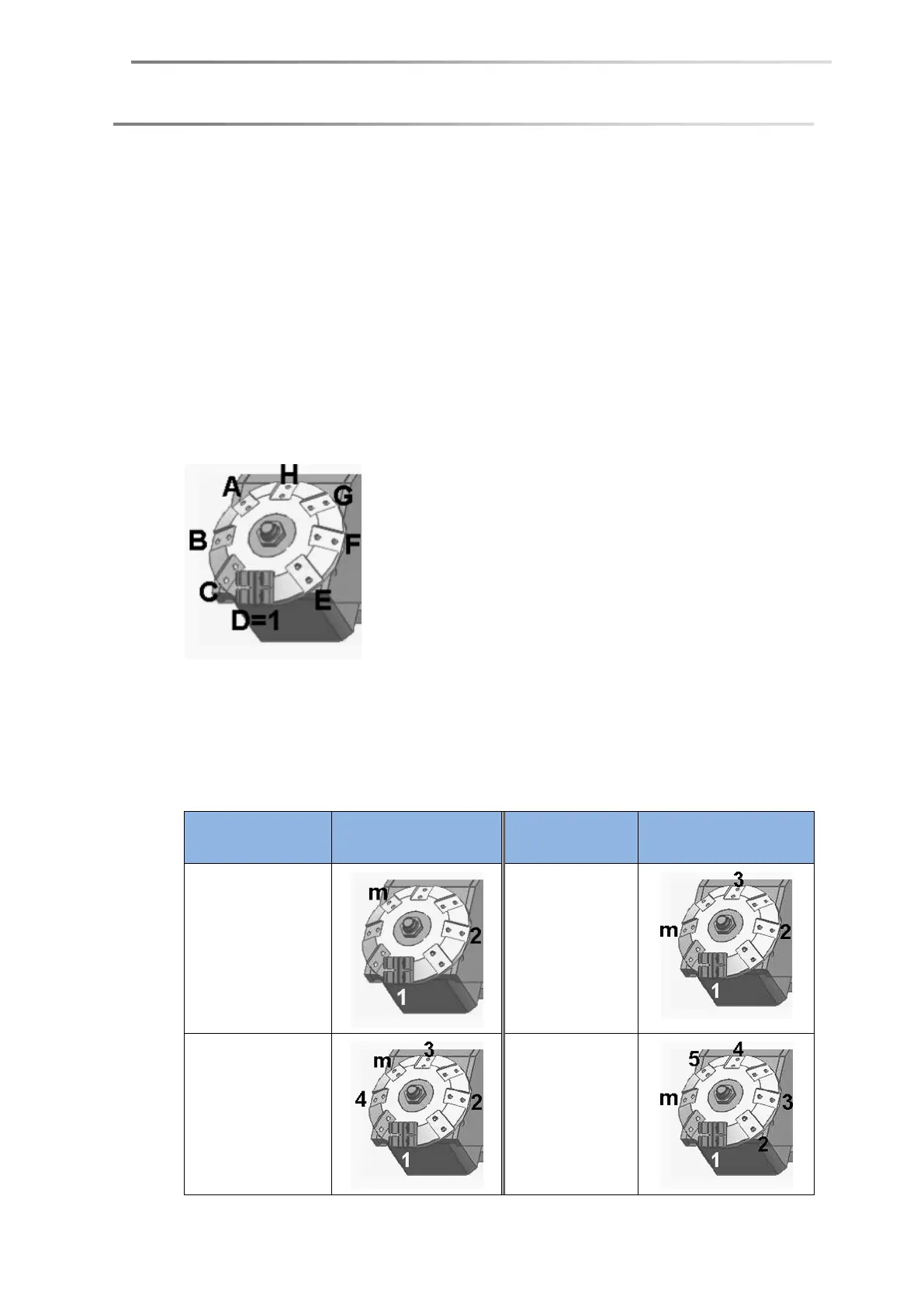

IVb) Assembling the syringe revolver
Assigning the revolver positions
Eight positions are located on the syringe revolver to which eight dosing needles
are assigned at maximum. In order to let the revolver find the correct position
when a syringe is selected, clamps and needles must be assembled to the revolver
positions correctly.
Letters A - H are assigned to the positions of the revolver. When the multi-dosing
system is delivered, position D of the syringe revolver is usually already occupied
with a clamp – this position is always used for the first syringe, regardless of how
many syringes are used for the dosing system.
The occupation of all other positions depends on the number of syringes used.
Overview
The following table shows the occupation of the syringe revolver for all multi-
dosing systems available.
Dosing unit/
Syringes
Occupation Dosing unit/
Syringes
Occupation
DS3222
2 autom.
1 manual (m)
DS3223
3 autom.
1 manual (m)
DS3224
4 autom.
1 manual (m)
DS3225
5 autom.
1 manual (m)
