page 58 Software-controlled single-Dosing unit DS3210
9 Software-controlled single-Dosing unit
DS3210
This chapter contains installation instructions for the Dosing Unit DS3210 and the
belonging electronic module EM3201.
9.1 Mounting the dosing unit

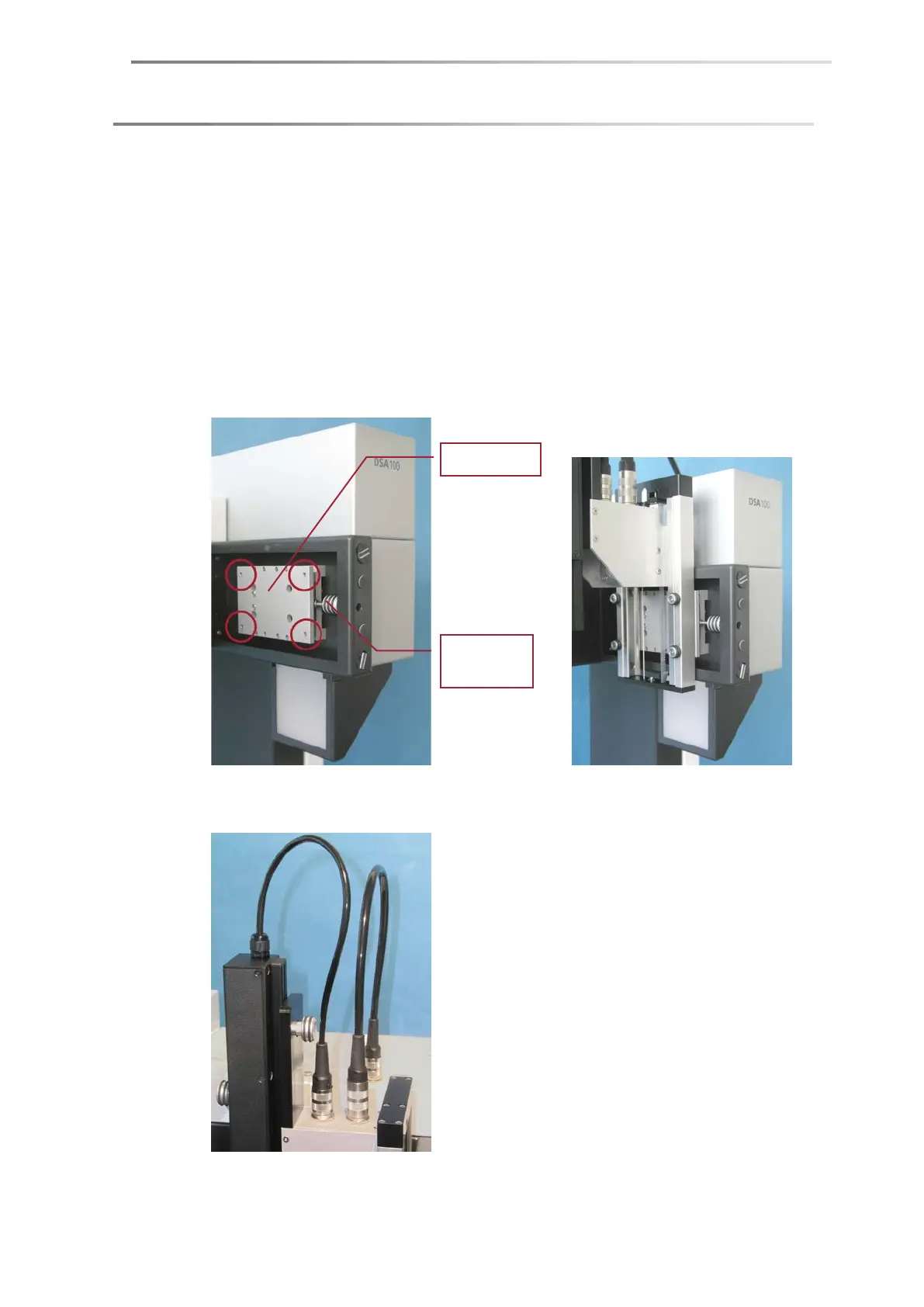

1. Attach the stand of the dosing unit to the fixing plate of the DSA100 using the
four set screws provided.
2. Connect the right-hand plug of the dosing carriage to the left-hand plug on the
upper side of the DSA100 housing.
SPAC S PA C S PAC SPAC
Fixing plate
Horizontal
alignment
