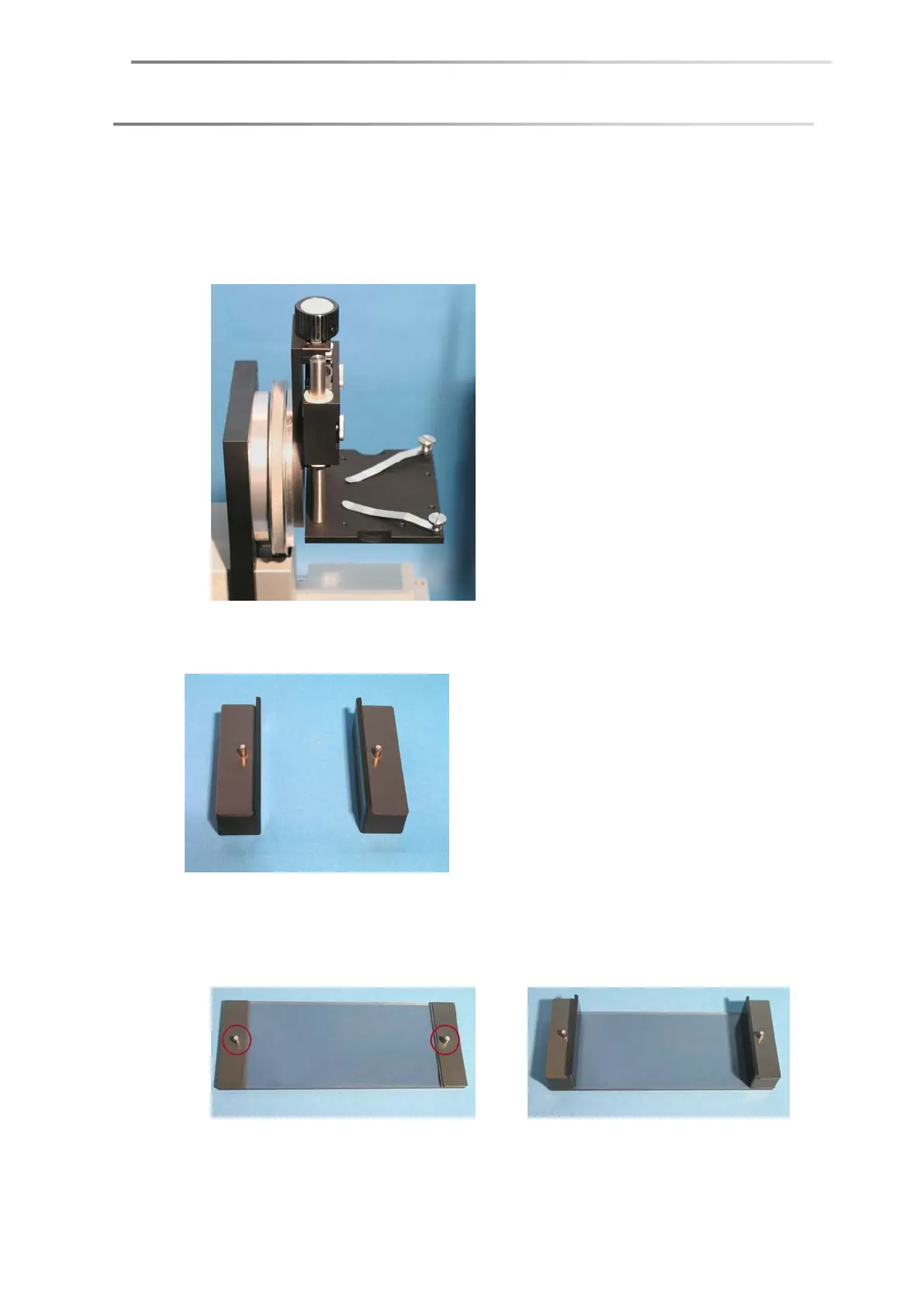

7.7.8 Fitting the holding clamps
Samples can be safeguarded against falling with the holding clamps supplied.
 If required, place the two holding clamps with the pins in the holes in the
corners of the sample table rest.
SPAC S PA C S PAC SPAC
7.7.9 Fitting spacers for the protective glass
!
If the protective glass is fitted without spacers, the tilting table can come into
contact with the protective glass.
 Place the two spacers on the pins of the protective glass.
 Place the protective glass with the spacers on the magnetic holder on the front
of the DSA100.
