7.7 PA3240 internal tilting table
7.7.1 Overview
SPAC S PA C S PAC SPAC


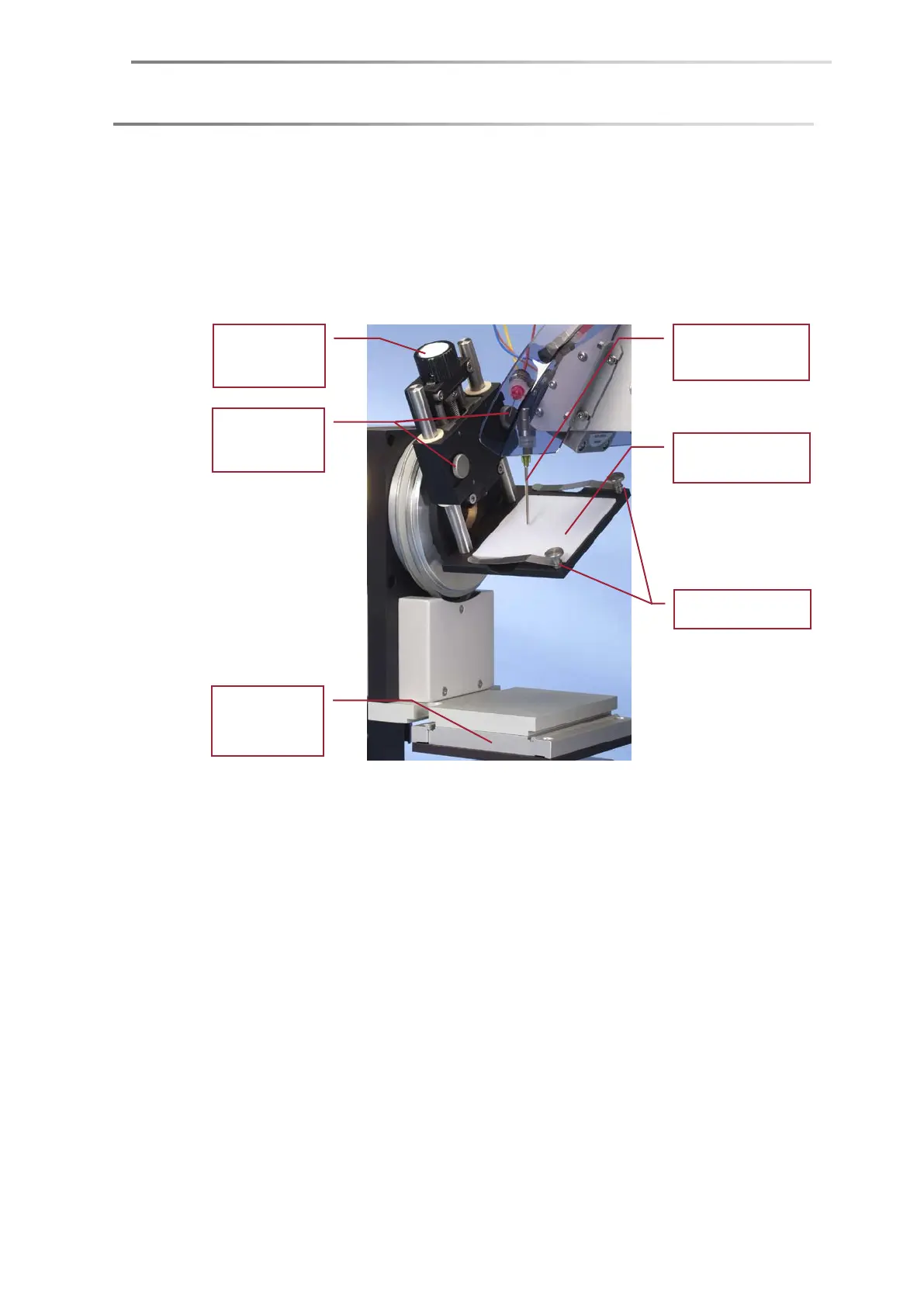

The following illustration shows the unit mounted on a DSA30. The table
components are the same however.
SPAC S PA C S PAC SPAC
SPAC S PA C S PAC SPAC
7.7.2 Note
!
When making measurements with a tilting table, the camera view angle must be
set to 0° ( Chapter
6.2).
SPAC S PA C S PAC SPAC
7.7.3 Mounting
1. Remove all installed axes and spacers.
2. Fit the z-axis PS3205 or PS3250 for heavy sample tables on the base plate of the
instrument.
!
The PA3240 tilting table must not be fitted on a standard PS3201/PS3202 z-
axis.
Height
adjustment
(fine)
Height
adjustment
(coarse)
Base plate
(fixed on z-
axis)
Sample rest with
sample (tilted)
Holding clamps
Instrument dosing
unit
