page 48 Mounting axes

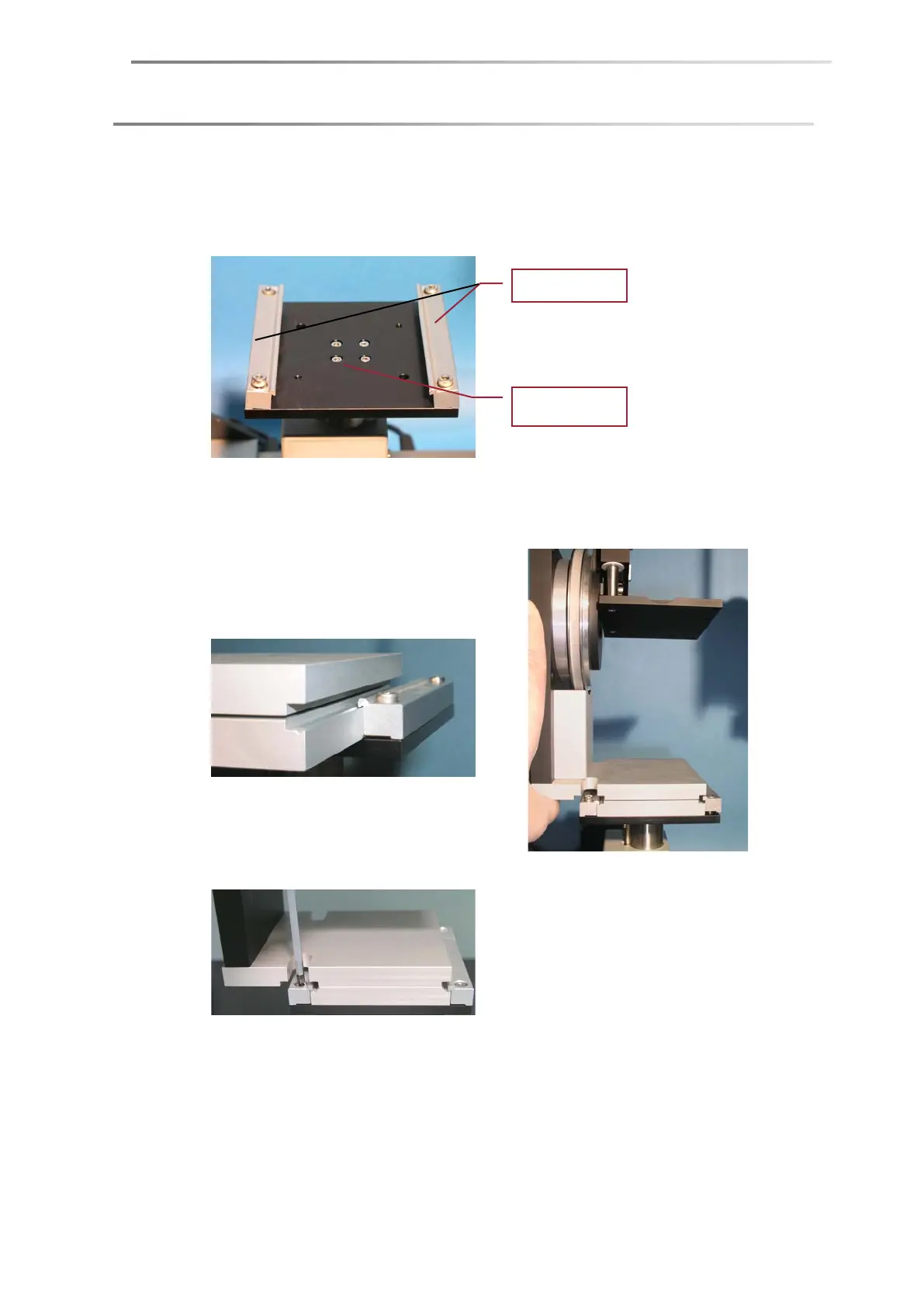

3. Place the two fixing strips supplied on the z-axis. Pass the four hexagon socket
screws supplied through the fixing strips and screw into the threaded holes in
the z-axis for a few turns. The strips should sit loosely but not be able to be
removed.
4. The tilting table must be mounted so that the sample rest is on the lamp side of
the instrument. Slide the tilting table on the platform of the z-axis so that the
clamping edges engage in the grooves in the base plate of the tilting table.
Hold the tilting table firmly and fix it by tightening the four screws.
z-axis platform
Fixing strips
